X50 Series 50.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • Excellent Line & Load Regulation
  • Independently Isolated Outputs
  • Ultra Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection
  • Remote On/Off Control

The X50 Series of DC/DC converters accepts wide input ranges of 9-36Vdc, 20-60Vdc, 36-72Vdc. Outputs are isolated to 1 kVdc. In the case of duals, the outputs are completely independent including overload protection. All models will tolerate a short circuit indefinitely. Also included is a PI Network input filter and remote on/off.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -45 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 9-36Vdc, 20-60Vdc, 36-72Vdc
Voltage Accuracy: 1% / 1%
Line Regulation: 0.1%
Load Regulation: 0.3%
Output Ripple: 0.4%
 Input Filter: PI Network
Efficiency: 87%
Short Circuit Protection: Continuous
Switching Frequency: 120 kHz
Isolation: 1 kVdc
Dimensions: 2.57 x 4.57 x 0.84 [INCHES]
Weight: 12.7 Oz
 Case Material: Black Coated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
48.0 Vdc1 A 9.0-36.0 Vdc87%48.0W
X50-48
X50-48/Y
48.0 Vdc
48.0 Vdc		500 mA
500 mA		 9.0-36.0 Vdc87%48.0W
X50-48/48
X50-48/48/Y
48.0 Vdc
48.0 Vdc		500 mA
500 mA		 20.0-60.0 Vdc87%48.0W
X50-48/48/B
X50-48/48/B/Y
48.0 Vdc
48.0 Vdc		500 mA
500 mA		 36.0-72.0 Vdc87%48.0W
X50-48/48/C
X50-48/48/C/Y
48.0 Vdc1 A 20.0-60.0 Vdc87%48.0W
X50-48/B
X50-48/B/Y
48.0 Vdc1 A 36.0-72.0 Vdc87%48.0W
X50-48/C
X50-48/C/Y
50.0 Vdc1 A 9.0-36.0 Vdc87%50.0W
X50-50
X50-50/Y
50.0 Vdc
50.0 Vdc		500 mA
500 mA		 9.0-36.0 Vdc87%50.0W
X50-50/50
X50-50/50/Y
50.0 Vdc
50.0 Vdc		500 mA
500 mA		 20.0-60.0 Vdc87%50.0W
X50-50/50/B
X50-50/50/B/Y
50.0 Vdc
50.0 Vdc		500 mA
500 mA		 36.0-72.0 Vdc87%50.0W
X50-50/50/C
X50-50/50/C/Y
50.0 Vdc1 A 20.0-60.0 Vdc87%50.0W
X50-50/B
X50-50/B/Y
50.0 Vdc1 A 36.0-72.0 Vdc87%50.0W
X50-50/C
X50-50/C/Y
75.0 Vdc666 mA 9.0-36.0 Vdc87%50.0W
X50-75
X50-75/Y
75.0 Vdc
75.0 Vdc		333 mA
333 mA		 9.0-36.0 Vdc87%50.0W
X50-75/75
X50-75/75/Y
75.0 Vdc
75.0 Vdc		333 mA
333 mA		 20.0-60.0 Vdc87%50.0W
X50-75/75/B
X50-75/75/B/Y
75.0 Vdc
75.0 Vdc		333 mA
333 mA		 36.0-72.0 Vdc87%50.0W
X50-75/75/C
X50-75/75/C/Y
75.0 Vdc666 mA 20.0-60.0 Vdc87%50.0W
X50-75/B
X50-75/B/Y
75.0 Vdc666 mA 36.0-72.0 Vdc87%50.0W
X50-75/C
X50-75/C/Y
100.0 Vdc500 mA 9.0-36.0 Vdc87%50.0W
X50-100
X50-100/Y
100.0 Vdc
100.0 Vdc		250 mA
250 mA		 9.0-36.0 Vdc87%50.0W
X50-100/100
X50-100/100/Y
100.0 Vdc
100.0 Vdc		250 mA
250 mA		 20.0-60.0 Vdc87%50.0W
X50-100/100/B
X50-100/100/B/Y
100.0 Vdc
100.0 Vdc		250 mA
250 mA		 36.0-72.0 Vdc87%50.0W
X50-100/100/C
X50-100/100/C/Y
100.0 Vdc500 mA 20.0-60.0 Vdc87%50.0W
X50-100/B
X50-100/B/Y
100.0 Vdc500 mA 36.0-72.0 Vdc87%50.0W
X50-100/C
X50-100/C/Y
150.0 Vdc333.3 mA 9.0-36.0 Vdc87%50.0W
X50-150
X50-150/Y
150.0 Vdc
150.0 Vdc		166 mA
166 mA		 9.0-36.0 Vdc87%50.0W
X50-150/150
X50-150/150/Y
150.0 Vdc
150.0 Vdc		166 mA
166 mA		 20.0-60.0 Vdc87%50.0W
X50-150/150/B
X50-150/150/B/Y
150.0 Vdc
150.0 Vdc		166 mA
166 mA		 36.0-72.0 Vdc87%50.0W
X50-150/150/C
X50-150/150/C/Y
150.0 Vdc333 mA 20.0-60.0 Vdc87%50.0W
X50-150/B
X50-150/B/Y
150.0 Vdc333 mA 36.0-72.0 Vdc87%50.0W
X50-150/C
X50-150/C/Y
165.0 Vdc
45.0 Vdc		151.5 mA
555.6 mA		 9.0-36.0 Vdc87%50.0W
X50-165/45
X50-165/45/Y
200.0 Vdc250 mA 9.0-36.0 Vdc87%50.0W
X50-200
X50-200/Y
200.0 Vdc
200.0 Vdc		125 mA
125 mA		 9.0-36.0 Vdc89%50.0W
X50-200/200
X50-200/200/Y
200.0 Vdc
200.0 Vdc		125 mA
125 mA		 20.0-60.0 Vdc87%50.0W
X50-200/200/B
X50-200/200/B/Y
200.0 Vdc
200.0 Vdc		125 mA
125 mA		 36.0-72.0 Vdc87%50.0W
X50-200/200/C
X50-200/200/C/Y
200.0 Vdc250 mA 20.0-60.0 Vdc87%50.0W
X50-200/B
X50-200/B/Y
200.0 Vdc250 mA 36.0-72.0 Vdc87%50.0W
X50-200/C
X50-200/C/Y
220.0 Vdc
220.0 Vdc		113.6 mA
113.6 mA		 9.0-36.0 Vdc89%50.0W
X50-220/220
X50-220/220/Y
222.0 Vdc
222.0 Vdc		112 mA
112 mA		 9.0-36.0 Vdc89%50.0W
X50-222/222
X50-222/222/Y
300.0 Vdc166 mA 9.0-36.0 Vdc87%50.0W
X50-300
X50-300/Y
300.0 Vdc
300.0 Vdc		83.3 mA
83.3 mA		 9.0-36.0 Vdc89%50.0W
X50-300/300
X50-300/300/Y
300.0 Vdc
300.0 Vdc		83 mA
83 mA		 20.0-60.0 Vdc87%50.0W
X50-300/300/B
X50-300/300/B/Y
300.0 Vdc
300.0 Vdc		83 mA
83 mA		 36.0-72.0 Vdc87%50.0W
X50-300/300/C
X50-300/300/C/Y
300.0 Vdc166 mA 20.0-60.0 Vdc87%50.0W
X50-300/B
X50-300/B/Y
300.0 Vdc166 mA 36.0-72.0 Vdc87%50.0W
X50-300/C
X50-300/C/Y
400.0 Vdc125 mA 9.0-36.0 Vdc87%50.0W
X50-400
X50-400/Y
400.0 Vdc
400.0 Vdc		62 mA
62 mA		 9.0-36.0 Vdc87%50.0W
X50-400/400
X50-400/400/Y
400.0 Vdc
400.0 Vdc		62 mA
62 mA		 20.0-60.0 Vdc87%50.0W
X50-400/400/B
X50-400/400/B/Y
400.0 Vdc
400.0 Vdc		62 mA
62 mA		 36.0-72.0 Vdc87%50.0W
X50-400/400/C
X50-400/400/C/Y
400.0 Vdc125 mA 20.0-60.0 Vdc87%50.0W
X50-400/B
X50-400/B/Y
400.0 Vdc125 mA 36.0-72.0 Vdc87%50.0W
X50-400/C
X50-400/C/Y
405.0 Vdc
405.0 Vdc		61.7 mA
61.7 mA		 9.0-36.0 Vdc87%50.0W
X50-405/405
X50-405/405/Y
405.0 Vdc
405.0 Vdc		61.7 mA
61.7 mA		 20.0-60.0 Vdc87%50.0W
X50-405/405/B
X50-405/405/B/Y
405.0 Vdc
405.0 Vdc		61.7 mA
61.7 mA		 36.0-72.0 Vdc87%50.0W
X50-405/405/C
X50-405/405/C/Y
440.0 Vdc
440.0 Vdc		56.8 mA
56.8 mA		 9.0-36.0 Vdc89%50.0W
X50-440/440
X50-440/440/Y
440.0 Vdc
440.0 Vdc		56.8 mA
56.8 mA		 20.0-60.0 Vdc87%50.0W
X50-440/440/B
X50-440/440/B/Y
440.0 Vdc
440.0 Vdc		56.8 mA
56.8 mA		 36.0-72.0 Vdc87%50.0W
X50-440/440/C
X50-440/440/C/Y
470.0 Vdc106.38 mA 9.0-36.0 Vdc87%50.0W
X50-470
X50-470/Y
500.0 Vdc100 mA 9.0-36.0 Vdc87%50.0W
X50-500
X50-500/Y
500.0 Vdc
500.0 Vdc		50 mA
50 mA		 9.0-36.0 Vdc89%50.0W
X50-500/500
X50-500/500/Y
500.0 Vdc
500.0 Vdc		50 mA
50 mA		 20.0-60.0 Vdc87%50.0W
X50-500/500/B
X50-500/500/B/Y
500.0 Vdc
500.0 Vdc		50 mA
50 mA		 36.0-72.0 Vdc87%50.0W
X50-500/500/C
X50-500/500/C/Y
500.0 Vdc100 mA 20.0-60.0 Vdc87%50.0W
X50-500/B
X50-500/B/Y
500.0 Vdc100 mA 36.0-72.0 Vdc87%50.0W
X50-500/C
X50-500/C/Y



Full Product Specification
PDF format

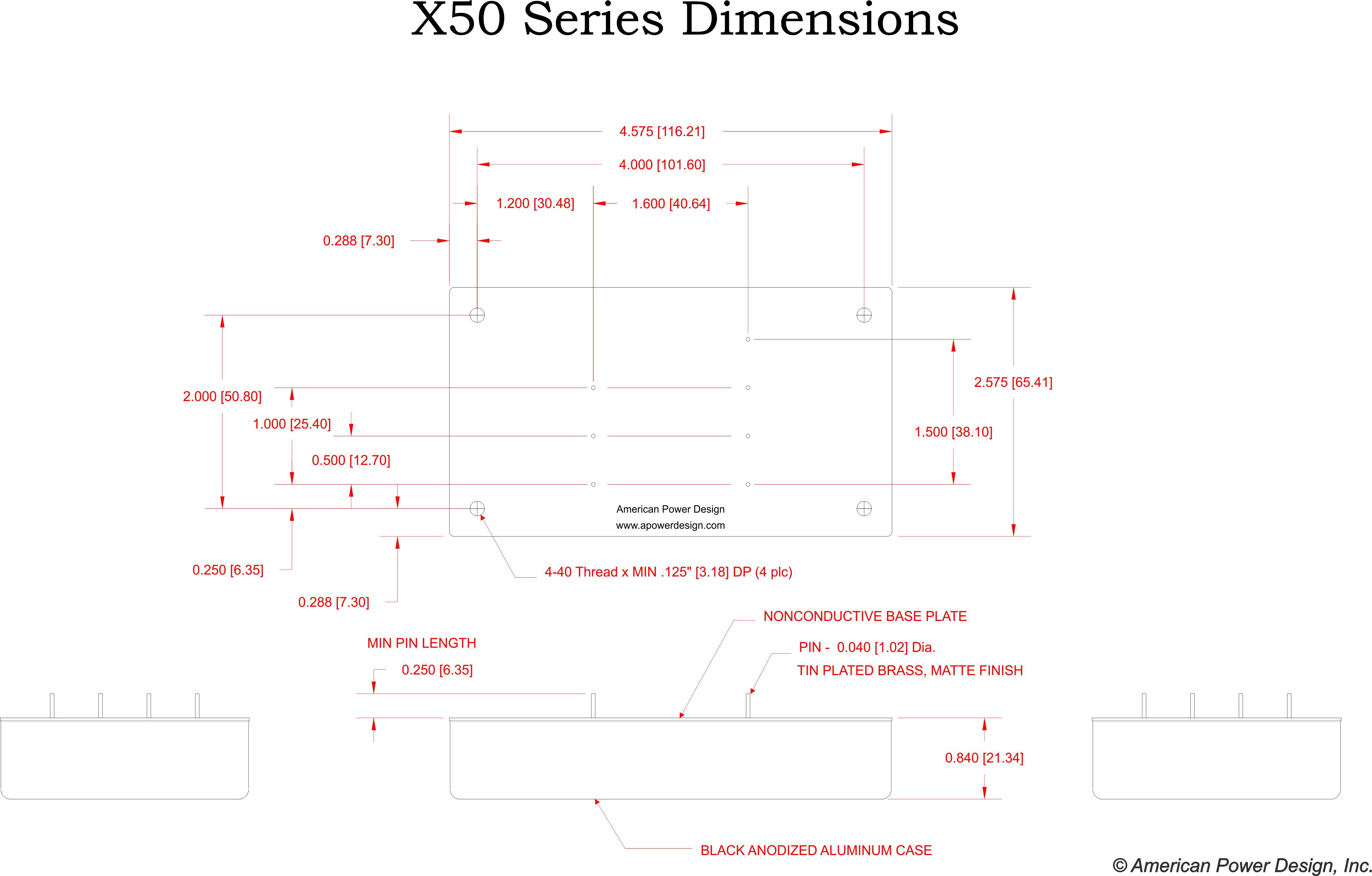

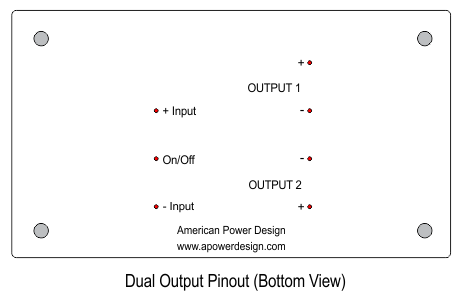

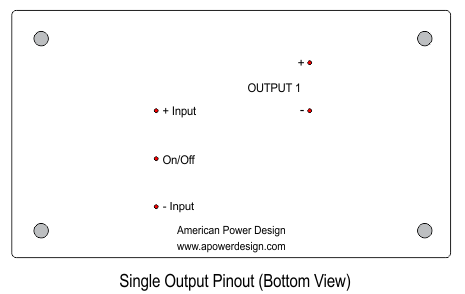

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
