K10 Series 10.0 Watt

High Voltage DC/DC Converters

General Specs
Electrical Specs
Physical Specs
Model Listing

Features

Customer Selects Output Voltage
Outputs to 4000Vdc
Low Turn-on Voltage <0.7Vdc
Ultra Low Profile 0.5"
Over-Temperature Monitoring
Over-Voltage Monitoring
Auto Fault shutdown
Latching Fault Signal

The K10 Series of DC/DC converters offer a 2500Vdc isolated high voltage output directly proportional to input voltage. The K10 come standard with supervisory circuits that actively monitor input voltage and internal temperature providing automatic protection from over-voltage and over-temperature, while providing a latching fault signal alerting the user that a fault has occurred, ensuring maximum reliability in the field. All models will tolerate a short circuit indefinitely.

Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +85 Deg C
Temp. (Storage): -55 to +105 Deg C
EMI/RFI: No Shielding
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y

Input Ranges: 0V-12Vdc, 0V-15Vdc, 0V-24Vdc, 0V-28Vdc
Voltage Accuracy: 3% / 3%
Line Regulation: Proportional
Load Regulation: 35%
Output Ripple: <1.5% P-P

Input Filter: Low ESR Cap
Efficiency: 85%
Short Circuit Protection: Continuous
Switching Frequency: 170kHz
Isolation: 2500Vdc

Dimensions: 1.08 x 2.19 x 0.52 [INCHES]
Weight: 1.4Oz

Case Material: Black Plastic / Metal

Models Currently In Production

Output Voltage

Current

Input Voltage

Efficiency

Power

Model Number

100.0 Vdc
100.0 Vdc

50 mA
50 mA

0.0-12.0 Vdc

85%

10.0W

K10-12D10
K10-12D10/Y

100.0 Vdc
100.0 Vdc

50 mA
50 mA

0.0-15.0 Vdc

85%

10.0W

K10-15D10
K10-15D10/Y

100.0 Vdc
100.0 Vdc

50 mA
50 mA

0.0-24.0 Vdc

85%

10.0W

K10-24D10
K10-24D10/Y

100.0 Vdc
100.0 Vdc

50 mA
50 mA

0.0-28.0 Vdc

85%

10.0W

K10-28D10
K10-28D10/Y

150.0 Vdc
150.0 Vdc

33.3 mA
33.3 mA

0.0-12.0 Vdc

85%

10.0W

K10-12D15
K10-12D15/Y

150.0 Vdc
150.0 Vdc

33.3 mA
33.3 mA

0.0-15.0 Vdc

85%

10.0W

K10-15D15
K10-15D15/Y

150.0 Vdc
150.0 Vdc

33.3 mA
33.3 mA

0.0-24.0 Vdc

85%

10.0W

K10-24D15
K10-24D15/Y

150.0 Vdc
150.0 Vdc

33.3 mA
33.3 mA

0.0-28.0 Vdc

85%

10.0W

K10-28D15
K10-28D15/Y

200.0 Vdc

50 mA

0.0-12.0 Vdc

85%

10.0W

K10-12S20
K10-12S20/Y

200.0 Vdc

50 mA

0.0-24.0 Vdc

85%

10.0W

K10-14S20
K10-14S20/Y

200.0 Vdc

50 mA

0.0-15.0 Vdc

85%

10.0W

K10-15S20
K10-15S20/Y

200.0 Vdc

50 mA

0.0-28.0 Vdc

85%

10.0W

K10-28S20
K10-28S20/Y

250.0 Vdc
250.0 Vdc

20 mA
20 mA

0.0-12.0 Vdc

85%

10.0W

K10-12D25
K10-12D25/Y

250.0 Vdc
250.0 Vdc

20 mA
20 mA

0.0-15.0 Vdc

85%

10.0W

K10-15D25
K10-15D25/Y

250.0 Vdc
250.0 Vdc

20 mA
20 mA

0.0-24.0 Vdc

85%

10.0W

K10-24D25
K10-24D25/Y

250.0 Vdc
250.0 Vdc

20 mA
20 mA

0.0-28.0 Vdc

85%

10.0W

K10-28D25
K10-28D25/Y

300.0 Vdc

33.3 mA

0.0-12.0 Vdc

85%

10.0W

K10-12S30
K10-12S30/Y

300.0 Vdc

33.3 mA

0.0-15.0 Vdc

85%

10.0W

K10-15S30
K10-15S30/Y

300.0 Vdc

33.3 mA

0.0-24.0 Vdc

85%

10.0W

K10-24S30
K10-24S30/Y

300.0 Vdc

33.3 mA

0.0-28.0 Vdc

85%

10.0W

K10-28S30
K10-28S30/Y

500.0 Vdc
500.0 Vdc

10 mA
10 mA

0.0-12.0 Vdc

85%

10.0W

K10-12D50
K10-12D50/Y

500.0 Vdc

20 mA

0.0-12.0 Vdc

85%

10.0W

K10-12S50
K10-12S50/Y

500.0 Vdc
500.0 Vdc

10 mA
10 mA

0.0-15.0 Vdc

85%

10.0W

K10-15D50
K10-15D50/Y

500.0 Vdc

20 mA

0.0-15.0 Vdc

85%

10.0W

K10-15S50
K10-15S50/Y

500.0 Vdc
500.0 Vdc

10 mA
10 mA

0.0-24.0 Vdc

85%

10.0W

K10-24D50
K10-24D50/Y

500.0 Vdc

20 mA

0.0-24.0 Vdc

85%

10.0W

K10-24S50
K10-24S50/Y

500.0 Vdc
500.0 Vdc

10 mA
10 mA

0.0-28.0 Vdc

85%

10.0W

K10-28D50
K10-28D50/Y

500.0 Vdc

20 mA

0.0-28.0 Vdc

85%

10.0W

K10-28S50
K10-28S50/Y

1000.0 Vdc
1000.0 Vdc

5 mA
5 mA

0.0-12.0 Vdc

85%

10.0W

K10-12D100
K10-12D100/Y

1000.0 Vdc

10 mA

0.0-12.0 Vdc

85%

10.0W

K10-12S100
K10-12S100/Y

1000.0 Vdc
1000.0 Vdc

5 mA
5 mA

0.0-15.0 Vdc

85%

10.0W

K10-15D100
K10-15D100/Y

1000.0 Vdc

10 mA

0.0-15.0 Vdc

85%

10.0W

K10-15S100
K10-15S100/Y

1000.0 Vdc
1000.0 Vdc

5 mA
5 mA

0.0-24.0 Vdc

85%

10.0W

K10-24D100
K10-24D100/Y

1000.0 Vdc

10 mA

0.0-24.0 Vdc

85%

10.0W

K10-24S100
K10-24S100/Y

1000.0 Vdc
1000.0 Vdc

5 mA
5 mA

0.0-28.0 Vdc

85%

10.0W

K10-28D100
K10-28D100/Y

1000.0 Vdc

10 mA

0.0-28.0 Vdc

85%

10.0W

K10-28S100
K10-28S100/Y

1500.0 Vdc
1500.0 Vdc

3.33 mA
3.33 mA

0.0-12.0 Vdc

85%

10.0W

K10-12D150
K10-12D150/Y

1500.0 Vdc
1500.0 Vdc

3.33 mA
3.33 mA

0.0-15.0 Vdc

85%

10.0W

K10-15D150
K10-15D150/Y

1500.0 Vdc
1500.0 Vdc

3.33 mA
3.33 mA

0.0-24.0 Vdc

85%

10.0W

K10-24D150
K10-24D150/Y

1500.0 Vdc
1500.0 Vdc

3.33 mA
3.33 mA

0.0-28.0 Vdc

85%

10.0W

K10-28D150
K10-28D150/Y

2000.0 Vdc
2000.0 Vdc

2.5 mA
2.5 mA

0.0-12.0 Vdc

85%

10.0W

K10-12D200
K10-12D200/Y

2000.0 Vdc

5 mA

0.0-12.0 Vdc

85%

10.0W

K10-12S200
K10-12S200/Y

2000.0 Vdc
2000.0 Vdc

2.5 mA
2.5 mA

0.0-15.0 Vdc

85%

10.0W

K10-15D200
K10-15D200/Y

2000.0 Vdc

5 mA

0.0-15.0 Vdc

85%

10.0W

K10-15S200
K10-15S200/Y

2000.0 Vdc
2000.0 Vdc

2.5 mA
2.5 mA

0.0-24.0 Vdc

85%

10.0W

K10-24D200
K10-24D200/Y

2000.0 Vdc

5 mA

0.0-24.0 Vdc

85%

10.0W

K10-24S200
K10-24S200/Y

2000.0 Vdc
2000.0 Vdc

2.5 mA
2.5 mA

0.0-28.0 Vdc

85%

10.0W

K10-28D200
K10-28D200/Y

2000.0 Vdc

5 mA

0.0-28.0 Vdc

85%

10.0W

K10-28S200
K10-28S200/Y

3000.0 Vdc

3.33 mA

0.0-12.0 Vdc

85%

10.0W

K10-12S300
K10-12S300/Y

3000.0 Vdc

3.33 mA

0.0-15.0 Vdc

85%

10.0W

K10-15S300
K10-15S300/Y

3000.0 Vdc

3.33 mA

0.0-24.0 Vdc

85%

10.0W

K10-24S300
K10-24S300/Y

3000.0 Vdc

3.33 mA

0.0-28.0 Vdc

85%

10.0W

K10-28S300
K10-28S300/Y

4000.0 Vdc

2.5 mA

0.0-12.0 Vdc

85%

10.0W

K10-12S400
K10-12S400/Y

4000.0 Vdc

2.5 mA

0.0-15.0 Vdc

85%

10.0W

K10-15S400
K10-15S400/Y

4000.0 Vdc

2.5 mA

0.0-24.0 Vdc

85%

10.0W

K10-24S400
K10-24S400/Y

4000.0 Vdc

2.5 mA

0.0-28.0 Vdc

85%

10.0W

K10-28S400
K10-28S400/Y

Full Product Specification
PDF format

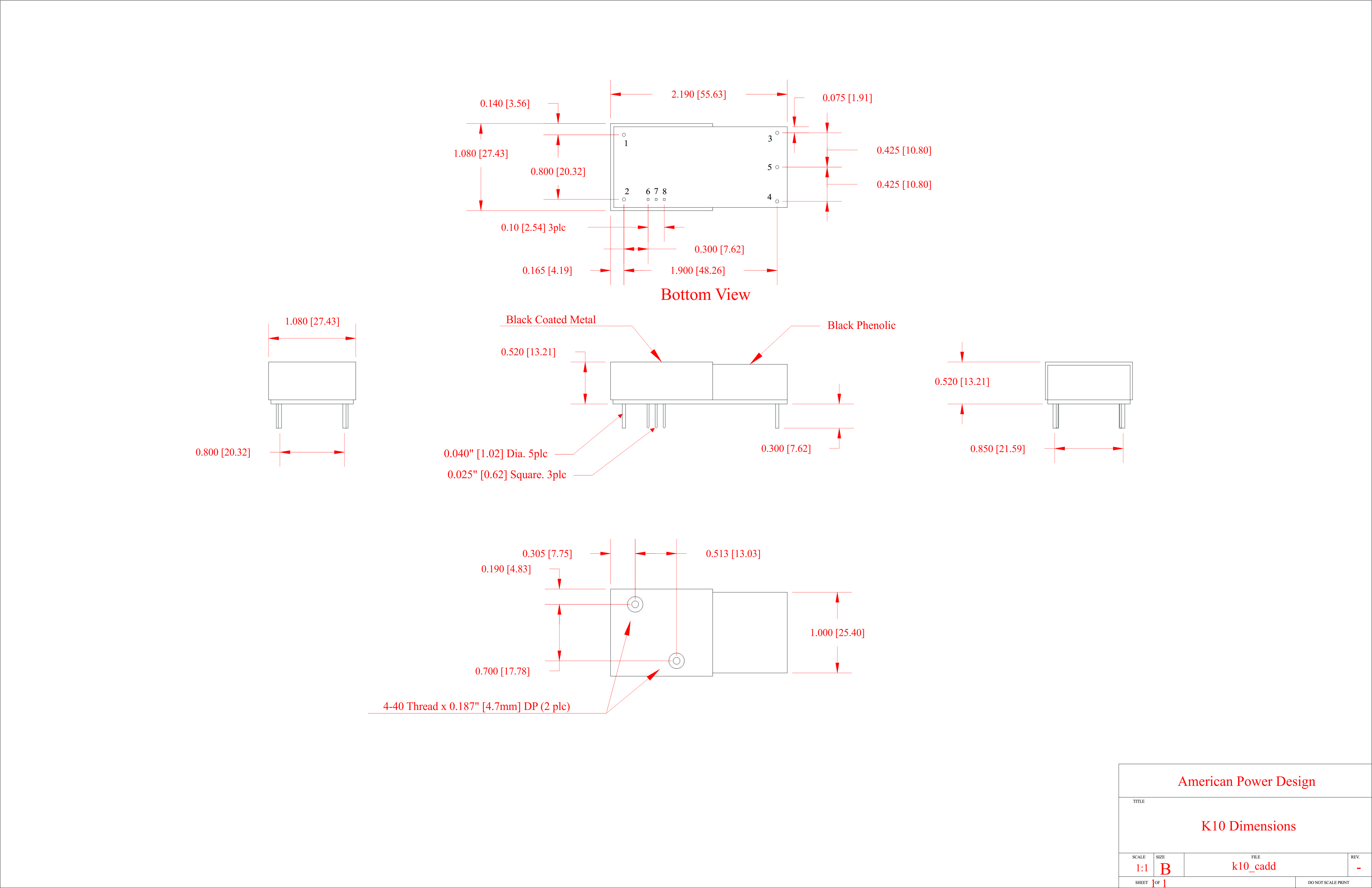

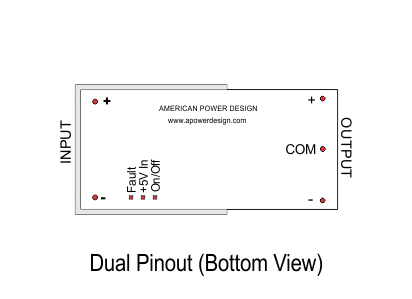

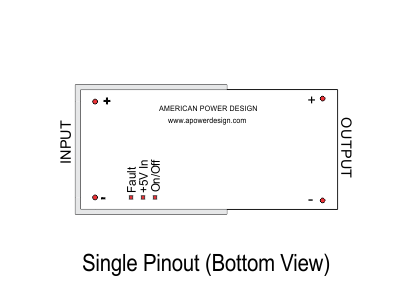

Mechanical Drawings
