L1 Series 1.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 500Vdc
  • Low Profile
  • Excellent Line & Load Regulation
  • Ultra Low Output Ripple
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection

The L1 Series Low Profile DC/DC converter offers a 1 kVdc isolated high voltage output in a six-sided metal case. Their small size, ultra low output ripple, and excellent regulation characteristics make them ideally suited for applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.


Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): 0 to +70 Deg C
Temp. (Storage): -40 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y


Input Ranges: 5Vdc, 12Vdc, 24Vdc, 48Vdc
Voltage Accuracy: 1%
Line Regulation: 0.1%
Load Regulation: 0.2%
Output Ripple: 0.05%
Input Filter: Low ESR Cap
Efficiency: 50%
Short Circuit Protection: Continuous
Switching Frequency: 60 kHz
Isolation: 1 kVdc

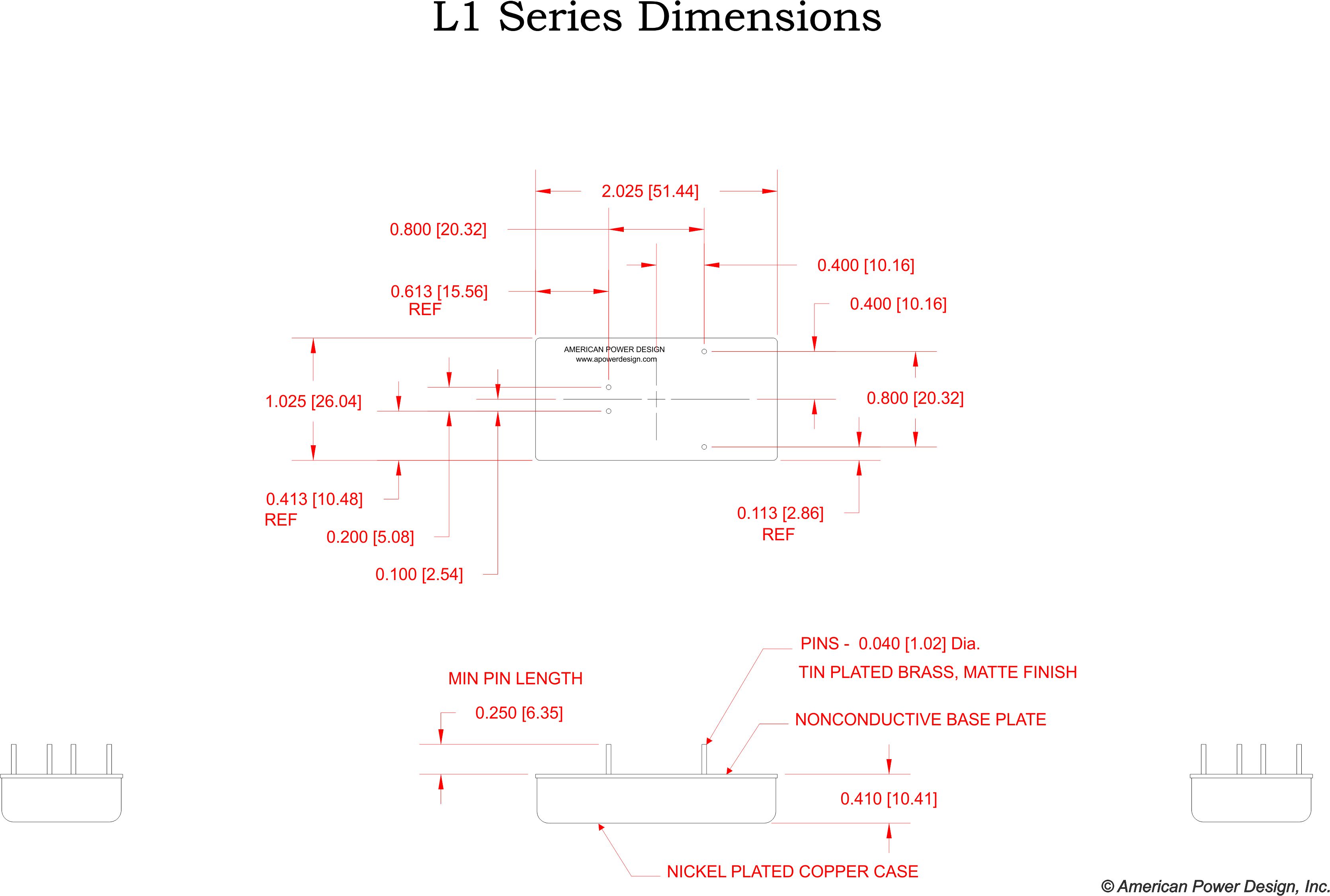

Dimensions: 1 x 2 x 0.41 [INCHES]
Weight: 1.2 Oz
Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
24.0 Vdc42 mA 10.0-14.0 Vdc48%1.0W
L112-24
L112-24/Y
24.0 Vdc42 mA 21.0-27.0 Vdc48%1.0W
L124-24
L124-24/Y
24.0 Vdc42 mA 43.0-53.0 Vdc48%1.0W
L148-24
L148-24/Y
24.0 Vdc42 mA 4.5-5.5 Vdc48%1.0W
L15-24
L15-24/Y
48.0 Vdc20 mA 10.0-14.0 Vdc48%1.0W
L112-48
L112-48/Y
48.0 Vdc20 mA 21.0-27.0 Vdc48%1.0W
L124-48
L124-48/Y
48.0 Vdc20 mA 43.0-53.0 Vdc48%1.0W
L148-48
L148-48/Y
48.0 Vdc20 mA 4.5-5.5 Vdc48%1.0W
L15-48
L15-48/Y
60.0 Vdc17 mA 10.0-14.0 Vdc48%1.0W
L112-60
L112-60/Y
60.0 Vdc17 mA 21.0-27.0 Vdc48%1.0W
L124-60
L124-60/Y
60.0 Vdc17 mA 43.0-53.0 Vdc48%1.0W
L148-60
L148-60/Y
60.0 Vdc17 mA 4.5-5.5 Vdc48%1.0W
L15-60
L15-60/Y
80.0 Vdc13 mA 10.0-14.0 Vdc48%1.0W
L112-80
L112-80/Y
80.0 Vdc13 mA 21.0-27.0 Vdc48%1.0W
L124-80
L124-80/Y
80.0 Vdc13 mA 43.0-53.0 Vdc48%1.0W
L148-80
L148-80/Y
80.0 Vdc13 mA 4.5-5.5 Vdc48%1.0W
L15-80
L15-80/Y
100.0 Vdc10 mA 10.0-14.0 Vdc48%1.0W
L112-100
L112-100/Y
100.0 Vdc10 mA 21.0-27.0 Vdc48%1.0W
L124-100
L124-100/Y
100.0 Vdc10 mA 43.0-53.0 Vdc48%1.0W
L148-100
L148-100/Y
100.0 Vdc10 mA 4.5-5.5 Vdc48%1.0W
L15-100
L15-100/Y
110.0 Vdc9 mA 10.0-14.0 Vdc48%1.0W
L112-110
L112-110/Y
110.0 Vdc9 mA 21.0-27.0 Vdc48%1.0W
L124-110
L124-110/Y
110.0 Vdc9 mA 43.0-53.0 Vdc48%1.0W
L148-110
L148-110/Y
110.0 Vdc9 mA 4.5-5.5 Vdc48%1.0W
L15-110
L15-110/Y
120.0 Vdc8 mA 10.0-14.0 Vdc48%1.0W
L112-120
L112-120/Y
120.0 Vdc8 mA 21.0-27.0 Vdc48%1.0W
L124-120
L124-120/Y
120.0 Vdc8 mA 43.0-53.0 Vdc48%1.0W
L148-120
L148-120/Y
120.0 Vdc8 mA 4.5-5.5 Vdc48%1.0W
L15-120
L15-120/Y
130.0 Vdc7.7 mA 10.0-14.0 Vdc48%1.0W
L112-130
L112-130/Y
130.0 Vdc7.7 mA 21.0-27.0 Vdc48%1.0W
L124-130
L124-130/Y
130.0 Vdc7.7 mA 43.0-53.0 Vdc48%1.0W
L148-130
L148-130/Y
130.0 Vdc7.7 mA 4.5-5.5 Vdc48%1.0W
L15-130
L15-130/Y
150.0 Vdc6.7 mA 10.0-14.0 Vdc48%1.0W
L112-150
L112-150/Y
150.0 Vdc6.7 mA 21.0-27.0 Vdc48%1.0W
L124-150
L124-150/Y
150.0 Vdc6.7 mA 43.0-53.0 Vdc48%1.0W
L148-150
L148-150/Y
150.0 Vdc6.7 mA 4.5-5.5 Vdc48%1.0W
L15-150
L15-150/Y
200.0 Vdc5 mA 10.0-14.0 Vdc48%1.0W
L112-200
L112-200/Y
200.0 Vdc5 mA 21.0-27.0 Vdc48%1.0W
L124-200
L124-200/Y
200.0 Vdc5 mA 43.0-53.0 Vdc48%1.0W
L148-200
L148-200/Y
200.0 Vdc5 mA 4.5-5.5 Vdc48%1.0W
L15-200
L15-200/Y
250.0 Vdc4 mA 10.0-14.0 Vdc48%1.0W
L112-250
L112-250/Y
250.0 Vdc4 mA 21.0-27.0 Vdc48%1.0W
L124-250
L124-250/Y
250.0 Vdc4 mA 43.0-53.0 Vdc48%1.0W
L148-250
L148-250/Y
250.0 Vdc4 mA 4.5-5.5 Vdc48%1.0W
L15-250
L15-250/Y
300.0 Vdc3.3 mA 10.0-14.0 Vdc48%1.0W
L112-300
L112-300/Y
300.0 Vdc3.3 mA 21.0-27.0 Vdc48%1.0W
L124-300
L124-300/Y
300.0 Vdc3.3 mA 43.0-53.0 Vdc48%1.0W
L148-300
L148-300/Y
300.0 Vdc3.3 mA 4.5-5.5 Vdc48%1.0W
L15-300
L15-300/Y
350.0 Vdc2.8 mA 10.0-14.0 Vdc48%1.0W
L112-350
L112-350/Y
350.0 Vdc2.8 mA 21.0-27.0 Vdc48%1.0W
L124-350
L124-350/Y
350.0 Vdc2.8 mA 43.0-53.0 Vdc48%1.0W
L148-350
L148-350/Y
350.0 Vdc2.8 mA 4.5-5.5 Vdc48%1.0W
L15-350
L15-350/Y
400.0 Vdc2.5 mA 10.0-14.0 Vdc48%1.0W
L112-400
L112-400/Y
400.0 Vdc2.5 mA 21.0-27.0 Vdc48%1.0W
L124-400
L124-400/Y
400.0 Vdc2.5 mA 43.0-53.0 Vdc48%1.0W
L148-400
L148-400/Y
400.0 Vdc2.5 mA 4.5-5.5 Vdc48%1.0W
L15-400
L15-400/Y
450.0 Vdc2.2 mA 10.0-14.0 Vdc48%1.0W
L112-450
L112-450/Y
450.0 Vdc2.2 mA 21.0-27.0 Vdc48%1.0W
L124-450
L124-450/Y
450.0 Vdc2.2 mA 43.0-53.0 Vdc48%1.0W
L148-450
L148-450/Y
450.0 Vdc2.2 mA 4.5-5.5 Vdc48%1.0W
L15-450
L15-450/Y
500.0 Vdc2 mA 10.0-14.0 Vdc48%1.0W
L112-500
L112-500/Y
500.0 Vdc2 mA 21.0-27.0 Vdc51%1.0W
L124-500
L124-500/Y
500.0 Vdc2 mA 43.0-53.0 Vdc48%1.0W
L148-500
L148-500/Y
500.0 Vdc2 mA 4.5-5.5 Vdc48%1.0W
L15-500
L15-500/Y
