L3 Series 3.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 500Vdc
  • Low Profile
  • Excellent Line & Load Regulation
  • Ultra Low Output Ripple
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection

The L3 Series Low Profile DC/DC converter offers a 1 kVdc isolated high voltage output in a six-sided metal case. Their small size, ultra low output ripple, and excellent regulation characteristics make them ideally suited for applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): 0 to +70 Deg C
Temp. (Storage): -40 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 5Vdc, 12Vdc, 24Vdc, 48Vdc
Voltage Accuracy: 1%
Line Regulation: 0.1%
Load Regulation: 0.2%
Output Ripple: 0.05%
 Input Filter: Low ESR Cap
Efficiency: 65%
Short Circuit Protection: Continuous
Switching Frequency: 60 kHz
Isolation: 1 kVdc

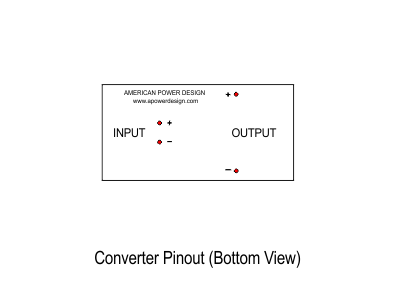

Dimensions: 1 x 2 x 0.41 [INCHES]
Weight: 1.2 Oz
 Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
24.0 Vdc125 mA 10.0-14.0 Vdc65%3.0W
L312-24
L312-24/Y
24.0 Vdc125 mA 21.0-27.0 Vdc65%3.0W
L324-24
L324-24/Y
24.0 Vdc125 mA 43.0-53.0 Vdc65%3.0W
L348-24
L348-24/Y
24.0 Vdc125 mA 4.5-5.5 Vdc65%3.0W
L35-24
L35-24/Y
27.0 Vdc111.1 mA 21.0-27.0 Vdc66%3.0W
L324-27
L324-27/Y
48.0 Vdc62.5 mA 10.0-14.0 Vdc65%3.0W
L312-48
L312-48/Y
48.0 Vdc62.5 mA 21.0-27.0 Vdc65%3.0W
L324-48
L324-48/Y
48.0 Vdc62.5 mA 43.0-53.0 Vdc65%3.0W
L348-48
L348-48/Y
48.0 Vdc62.5 mA 4.5-5.5 Vdc65%3.0W
L35-48
L35-48/Y
60.0 Vdc50 mA 10.0-14.0 Vdc65%3.0W
L312-60
L312-60/Y
60.0 Vdc50 mA 21.0-27.0 Vdc65%3.0W
L324-60
L324-60/Y
60.0 Vdc50 mA 43.0-53.0 Vdc65%3.0W
L348-60
L348-60/Y
60.0 Vdc50 mA 4.5-5.5 Vdc65%3.0W
L35-60
L35-60/Y
70.0 Vdc42.9 mA 10.0-14.0 Vdc65%3.0W
L312-70
L312-70/Y
75.0 Vdc40 mA 21.0-27.0 Vdc66%3.0W
L324-75
L324-75/Y
80.0 Vdc37.5 mA 10.0-14.0 Vdc65%3.0W
L312-80
L312-80/Y
80.0 Vdc37.5 mA 21.0-27.0 Vdc65%3.0W
L324-80
L324-80/Y
80.0 Vdc37.5 mA 43.0-53.0 Vdc65%3.0W
L348-80
L348-80/Y
80.0 Vdc37.5 mA 4.5-5.5 Vdc65%3.0W
L35-80
L35-80/Y
100.0 Vdc30 mA 10.0-14.0 Vdc65%3.0W
L312-100
L312-100/Y
100.0 Vdc30 mA 21.0-27.0 Vdc66%3.0W
L324-100
L324-100/Y
100.0 Vdc30 mA 43.0-53.0 Vdc65%3.0W
L348-100
L348-100/Y
100.0 Vdc30 mA 4.5-5.5 Vdc65%3.0W
L35-100
L35-100/Y
110.0 Vdc27 mA 10.0-14.0 Vdc65%3.0W
L312-110
L312-110/Y
110.0 Vdc27 mA 21.0-27.0 Vdc65%3.0W
L324-110
L324-110/Y
110.0 Vdc27 mA 43.0-53.0 Vdc65%3.0W
L348-110
L348-110/Y
110.0 Vdc27 mA 4.5-5.5 Vdc65%3.0W
L35-110
L35-110/Y
120.0 Vdc25 mA 10.0-14.0 Vdc65%3.0W
L312-120
L312-120/Y
120.0 Vdc25 mA 21.0-27.0 Vdc65%3.0W
L324-120
L324-120/Y
120.0 Vdc25 mA 43.0-53.0 Vdc65%3.0W
L348-120
L348-120/Y
120.0 Vdc25 mA 4.5-5.5 Vdc65%3.0W
L35-120
L35-120/Y
130.0 Vdc23 mA 10.0-14.0 Vdc65%3.0W
L312-130
L312-130/Y
130.0 Vdc23 mA 21.0-27.0 Vdc65%3.0W
L324-130
L324-130/Y
130.0 Vdc23 mA 43.0-53.0 Vdc65%3.0W
L348-130
L348-130/Y
130.0 Vdc23 mA 4.5-5.5 Vdc65%3.0W
L35-130
L35-130/Y
150.0 Vdc20 mA 10.0-14.0 Vdc65%3.0W
L312-150
L312-150/Y
150.0 Vdc20 mA 21.0-27.0 Vdc65%3.0W
L324-150
L324-150/Y
150.0 Vdc20 mA 43.0-53.0 Vdc65%3.0W
L348-150
L348-150/Y
150.0 Vdc20 mA 4.5-5.5 Vdc65%3.0W
L35-150
L35-150/Y
155.0 Vdc19.4 mA 4.5-5.5 Vdc65%3.0W
L35-155
L35-155/Y
200.0 Vdc15 mA 10.0-14.0 Vdc65%3.0W
L312-200
L312-200/Y
200.0 Vdc15 mA 21.0-27.0 Vdc65%3.0W
L324-200
L324-200/Y
200.0 Vdc15 mA 43.0-53.0 Vdc65%3.0W
L348-200
L348-200/Y
200.0 Vdc15 mA 4.5-5.5 Vdc65%3.0W
L35-200
L35-200/Y
250.0 Vdc12 mA 10.0-14.0 Vdc65%3.0W
L312-250
L312-250/Y
250.0 Vdc12 mA 21.0-27.0 Vdc65%3.0W
L324-250
L324-250/Y
250.0 Vdc12 mA 43.0-53.0 Vdc65%3.0W
L348-250
L348-250/Y
250.0 Vdc12 mA 4.5-5.5 Vdc65%3.0W
L35-250
L35-250/Y
290.0 Vdc10.3 mA 4.5-5.5 Vdc65%3.0W
L35-290
L35-290/Y
300.0 Vdc10 mA 10.0-14.0 Vdc65%3.0W
L312-300
L312-300/Y
300.0 Vdc10 mA 21.0-27.0 Vdc65%3.0W
L324-300
L324-300/Y
300.0 Vdc10 mA 43.0-53.0 Vdc65%3.0W
L348-300
L348-300/Y
300.0 Vdc10 mA 4.5-5.5 Vdc65%3.0W
L35-300
L35-300/Y
350.0 Vdc8.5 mA 10.0-14.0 Vdc65%3.0W
L312-350
L312-350/Y
350.0 Vdc8.5 mA 21.0-27.0 Vdc66%3.0W
L324-350
L324-350/Y
350.0 Vdc8.5 mA 43.0-53.0 Vdc65%3.0W
L348-350
L348-350/Y
350.0 Vdc8.5 mA 4.5-5.5 Vdc65%3.0W
L35-350
L35-350/Y
400.0 Vdc7.5 mA 10.0-14.0 Vdc65%3.0W
L312-400
L312-400/Y
400.0 Vdc7.5 mA 21.0-27.0 Vdc65%3.0W
L324-400
L324-400/Y
400.0 Vdc7.5 mA 43.0-53.0 Vdc65%3.0W
L348-400
L348-400/Y
400.0 Vdc7.5 mA 4.5-5.5 Vdc65%3.0W
L35-400
L35-400/Y
450.0 Vdc6.6 mA 10.0-14.0 Vdc65%3.0W
L312-450
L312-450/Y
450.0 Vdc6.6 mA 21.0-27.0 Vdc65%3.0W
L324-450
L324-450/Y
450.0 Vdc6.6 mA 43.0-53.0 Vdc65%3.0W
L348-450
L348-450/Y
450.0 Vdc6.6 mA 4.5-5.5 Vdc65%3.0W
L35-450
L35-450/Y
500.0 Vdc6 mA 10.0-14.0 Vdc65%3.0W
L312-500
L312-500/Y
500.0 Vdc6 mA 14.0-17.0 Vdc65%3.0W
L315-500
L315-500/Y
500.0 Vdc6 mA 21.0-27.0 Vdc71%3.0W
L324-500
L324-500/Y
500.0 Vdc6 mA 25.0-31.0 Vdc65%3.0W
L328-500
L328-500/Y
500.0 Vdc6 mA 43.0-53.0 Vdc65%3.0W
L348-500
L348-500/Y
500.0 Vdc6 mA 4.5-5.5 Vdc66%3.0W
L35-500
L35-500/Y
