S5 Series 5.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • High Power Density
  • Single and Dual Outputs
  • Ultra Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection

The S5 Series low profile high voltage DC/DC converter offers a 1 kVdc isolated single or dual high voltage output in a 1 x 2 x 0.41 [INCHES] case. Their small size, wide input, and excellent regulation make them ideally suited for applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +70 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 9-36Vdc, 20-60Vdc, 36-72Vdc
Voltage Accuracy: 5% / 5%
Line Regulation: 1%
Load Regulation: 3% (20% - FL)
Output Ripple: 0.5%
 Input Filter: Low ESR Cap
Efficiency: 80%
Short Circuit Protection: Continuous
Switching Frequency: 100 kHz
Isolation: 1 kVdc
Dimensions: 1 x 2 x 0.41 [INCHES]
Weight: 1.2 Oz
 Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
24.0 Vdc
24.0 Vdc		104 mA
104 mA		 9.0-36.0 Vdc80%5.0W
S5-D24
S5-D24/Y
24.0 Vdc
24.0 Vdc		104 mA
104 mA		 20.0-60.0 Vdc80%5.0W
S5-D24/B
S5-D24/B/Y
24.0 Vdc
24.0 Vdc		104 mA
104 mA		 36.0-72.0 Vdc80%5.0W
S5-D24/C
S5-D24/C/Y
24.0 Vdc208 mA 9.0-36.0 Vdc80%5.0W
S5-S24
S5-S24/Y
24.0 Vdc208 mA 20.0-60.0 Vdc80%5.0W
S5-S24/B
S5-S24/B/Y
24.0 Vdc208 mA 36.0-72.0 Vdc80%5.0W
S5-S24/C
S5-S24/C/Y
40.0 Vdc
40.0 Vdc		62.5 mA
62.5 mA		 9.0-36.0 Vdc80%5.0W
S5-D40
S5-D40/Y
40.0 Vdc
40.0 Vdc		62.5 mA
62.5 mA		 20.0-60.0 Vdc80%5.0W
S5-D40/B
S5-D40/B/Y
48.0 Vdc
48.0 Vdc		52 mA
52 mA		 9.0-36.0 Vdc80%5.0W
S5-D48
S5-D48/Y
48.0 Vdc
48.0 Vdc		52 mA
52 mA		 20.0-60.0 Vdc80%5.0W
S5-D48/B
S5-D48/B/Y
48.0 Vdc
48.0 Vdc		52 mA
52 mA		 36.0-72.0 Vdc80%5.0W
S5-D48/C
S5-D48/C/Y
48.0 Vdc104 mA 9.0-36.0 Vdc80%5.0W
S5-S48
S5-S48/Y
48.0 Vdc104 mA 20.0-60.0 Vdc80%5.0W
S5-S48/B
S5-S48/B/Y
48.0 Vdc104 mA 36.0-72.0 Vdc80%5.0W
S5-S48/C
S5-S48/C/Y
60.0 Vdc
60.0 Vdc		41.7 mA
41.7 mA		 9.0-36.0 Vdc80%5.0W
S5-D60
S5-D60/Y
100.0 Vdc
100.0 Vdc		25 mA
25 mA		 9.0-36.0 Vdc84%5.0W
S5-D100
S5-D100/Y
100.0 Vdc
100.0 Vdc		25 mA
25 mA		 20.0-60.0 Vdc80%5.0W
S5-D100/B
S5-D100/B/Y
100.0 Vdc
100.0 Vdc		25 mA
25 mA		 36.0-72.0 Vdc80%5.0W
S5-D100/C
S5-D100/C/Y
100.0 Vdc50 mA 9.0-36.0 Vdc80%5.0W
S5-S100
S5-S100/Y
100.0 Vdc50 mA 20.0-60.0 Vdc80%5.0W
S5-S100/B
S5-S100/B/Y
100.0 Vdc50 mA 36.0-72.0 Vdc80%5.0W
S5-S100/C
S5-S100/C/Y
105.0 Vdc
105.0 Vdc		23.8 mA
23.8 mA		 20.0-60.0 Vdc80%5.0W
S5-D105/B
S5-D105/B/Y
140.0 Vdc
140.0 Vdc		18 mA
18 mA		 9.0-36.0 Vdc80%5.0W
S5-D140
S5-D140/Y
140.0 Vdc
140.0 Vdc		18 mA
18 mA		 20.0-60.0 Vdc80%5.0W
S5-D140/B
S5-D140/B/Y
150.0 Vdc
150.0 Vdc		16 mA
16 mA		 9.0-36.0 Vdc83%5.0W
S5-D150
S5-D150/Y
150.0 Vdc
150.0 Vdc		16 mA
16 mA		 20.0-60.0 Vdc80%5.0W
S5-D150/B
S5-D150/B/Y
150.0 Vdc
150.0 Vdc		16 mA
16 mA		 36.0-72.0 Vdc80%5.0W
S5-D150/C
S5-D150/C/Y
150.0 Vdc33 mA 9.0-36.0 Vdc80%5.0W
S5-S150
S5-S150/Y
150.0 Vdc33 mA 20.0-60.0 Vdc80%5.0W
S5-S150/B
S5-S150/B/Y
150.0 Vdc33 mA 36.0-72.0 Vdc80%5.0W
S5-S150/C
S5-S150/C/Y
185.0 Vdc27 mA 9.0-36.0 Vdc80%5.0W
S5-S185
S5-S185/Y
200.0 Vdc
200.0 Vdc		12 mA
12 mA		 9.0-36.0 Vdc80%5.0W
S5-D200
S5-D200/Y
200.0 Vdc
200.0 Vdc		12 mA
12 mA		 20.0-60.0 Vdc80%5.0W
S5-D200/B
S5-D200/B/Y
200.0 Vdc
200.0 Vdc		12 mA
12 mA		 36.0-72.0 Vdc80%5.0W
S5-D200/C
S5-D200/C/Y
200.0 Vdc25 mA 9.0-36.0 Vdc84%5.0W
S5-S200
S5-S200/Y
200.0 Vdc25 mA 20.0-60.0 Vdc80%5.0W
S5-S200/B
S5-S200/B/Y
200.0 Vdc25 mA 36.0-72.0 Vdc80%5.0W
S5-S200/C
S5-S200/C/Y
225.0 Vdc
225.0 Vdc		11 mA
11 mA		 9.0-36.0 Vdc80%5.0W
S5-D225
S5-D225/Y
250.0 Vdc20 mA 9.0-36.0 Vdc80%5.0W
S5-S250
S5-S250/Y
300.0 Vdc
300.0 Vdc		8 mA
8 mA		 9.0-36.0 Vdc80%5.0W
S5-D300
S5-D300/Y
300.0 Vdc
300.0 Vdc		8 mA
8 mA		 20.0-60.0 Vdc80%5.0W
S5-D300/B
S5-D300/B/Y
300.0 Vdc
300.0 Vdc		8 mA
8 mA		 36.0-72.0 Vdc80%5.0W
S5-D300/C
S5-D300/C/Y
300.0 Vdc16 mA 9.0-36.0 Vdc83%5.0W
S5-S300
S5-S300/Y
300.0 Vdc16 mA 20.0-60.0 Vdc80%5.0W
S5-S300/B
S5-S300/B/Y
300.0 Vdc16 mA 36.0-72.0 Vdc80%5.0W
S5-S300/C
S5-S300/C/Y
320.0 Vdc
320.0 Vdc		7.8 mA
7.8 mA		 9.0-36.0 Vdc80%5.0W
S5-D320
S5-D320/Y
320.0 Vdc15.6 mA 9.0-36.0 Vdc80%5.0W
S5-S320
S5-S320/Y
350.0 Vdc14.3 mA 9.0-36.0 Vdc83%5.0W
S5-S350
S5-S350/Y
380.0 Vdc13.2 mA 9.0-36.0 Vdc80%5.0W
S5-S380
S5-S380/Y
400.0 Vdc
400.0 Vdc		6 mA
6 mA		 9.0-36.0 Vdc80%5.0W
S5-D400
S5-D400/Y
400.0 Vdc
400.0 Vdc		6 mA
6 mA		 20.0-60.0 Vdc80%5.0W
S5-D400/B
S5-D400/B/Y
400.0 Vdc
400.0 Vdc		6 mA
6 mA		 36.0-72.0 Vdc80%5.0W
S5-D400/C
S5-D400/C/Y
400.0 Vdc12 mA 9.0-36.0 Vdc80%5.0W
S5-S400
S5-S400/Y
400.0 Vdc12 mA 20.0-60.0 Vdc80%5.0W
S5-S400/B
S5-S400/B/Y
400.0 Vdc12 mA 36.0-72.0 Vdc80%5.0W
S5-S400/C
S5-S400/C/Y
500.0 Vdc
500.0 Vdc		5 mA
5 mA		 9.0-36.0 Vdc80%5.0W
S5-D500
S5-D500/Y
500.0 Vdc
500.0 Vdc		5 mA
5 mA		 20.0-60.0 Vdc80%5.0W
S5-D500/B
S5-D500/B/Y
500.0 Vdc
500.0 Vdc		5 mA
5 mA		 36.0-72.0 Vdc80%5.0W
S5-D500/C
S5-D500/C/Y
500.0 Vdc10 mA 9.0-36.0 Vdc80%5.0W
S5-S500
S5-S500/Y
500.0 Vdc10 mA 20.0-60.0 Vdc80%5.0W
S5-S500/B
S5-S500/B/Y
500.0 Vdc10 mA 36.0-72.0 Vdc80%5.0W
S5-S500/C
S5-S500/C/Y
600.0 Vdc8.3 mA 9.0-36.0 Vdc80%5.0W
S5-S600
S5-S600/Y
600.0 Vdc8.3 mA 20.0-60.0 Vdc80%5.0W
S5-S600/B
S5-S600/B/Y
600.0 Vdc8.3 mA 72.0-48.0 Vdc80%5.0W
S5-S600/C
S5-S600/C/Y
650.0 Vdc7.7 mA 9.0-36.0 Vdc80%5.0W
S5-S650
S5-S650/Y
800.0 Vdc6.2 mA 9.0-36.0 Vdc80%5.0W
S5-S800
S5-S800/Y
1000.0 Vdc5 mA 9.0-36.0 Vdc80%5.0W
S5-S1000
S5-S1000/Y
1000.0 Vdc5 mA 20.0-60.0 Vdc80%5.0W
S5-S1000/B
S5-S1000/B/Y
1000.0 Vdc5 mA 36.0-72.0 Vdc80%5.0W
S5-S1000/C
S5-S1000/C/Y



Full Product Specification
PDF format

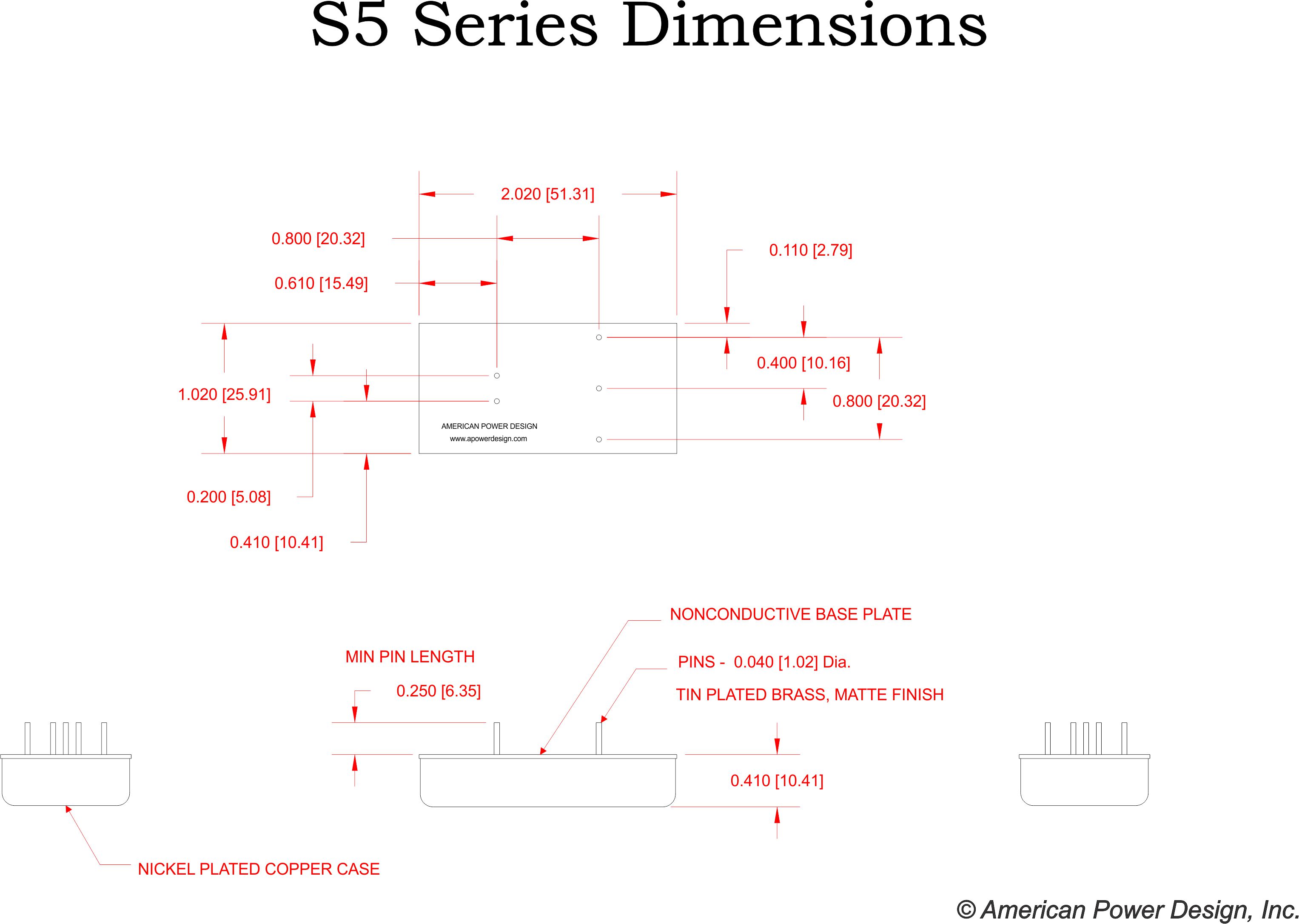

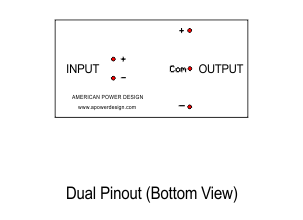

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
