J05 Series 0.5 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • + or - Outputs to 2000Vdc

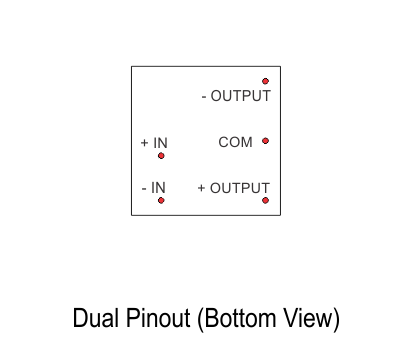

  • Dual Outputs
  • High Power Density

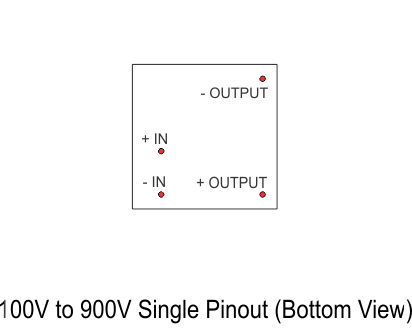

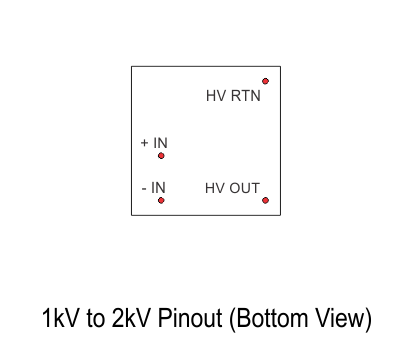

  • Industry Standard Pinouts
  • Low ESR Cap (Input Filter)
  • 500 Vdc Output Isolation
  • Continuous Short Circuit Protection

The J05 Series of DC/DC converters offer a 500 Vdc isolated high voltage output directly proportional to input voltage. They are available in alternate industry standard pinouts. All models will tolerate a short circuit indefinitely. They also include a Low ESR Cap input filter to minimize reflected ripple current.
Temp. (Stability): 0.05%/Deg C
Temp. (Operating Case): -25 to +70 Deg C
Temp. (Storage): -50 to +105 Deg C
EMI/RFI: Shield Available
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 0V-5Vdc, 0V-12Vdc, 0V-24Vdc
Voltage Accuracy: 5% / 5%
Line Regulation: Proportional
Load Regulation: 15%
Output Ripple: <0.1% P-P
 Input Filter: Low ESR Cap
Efficiency: 60%
Short Circuit Protection: Continuous
Switching Frequency: 300-500kHz
Isolation: 500 Vdc

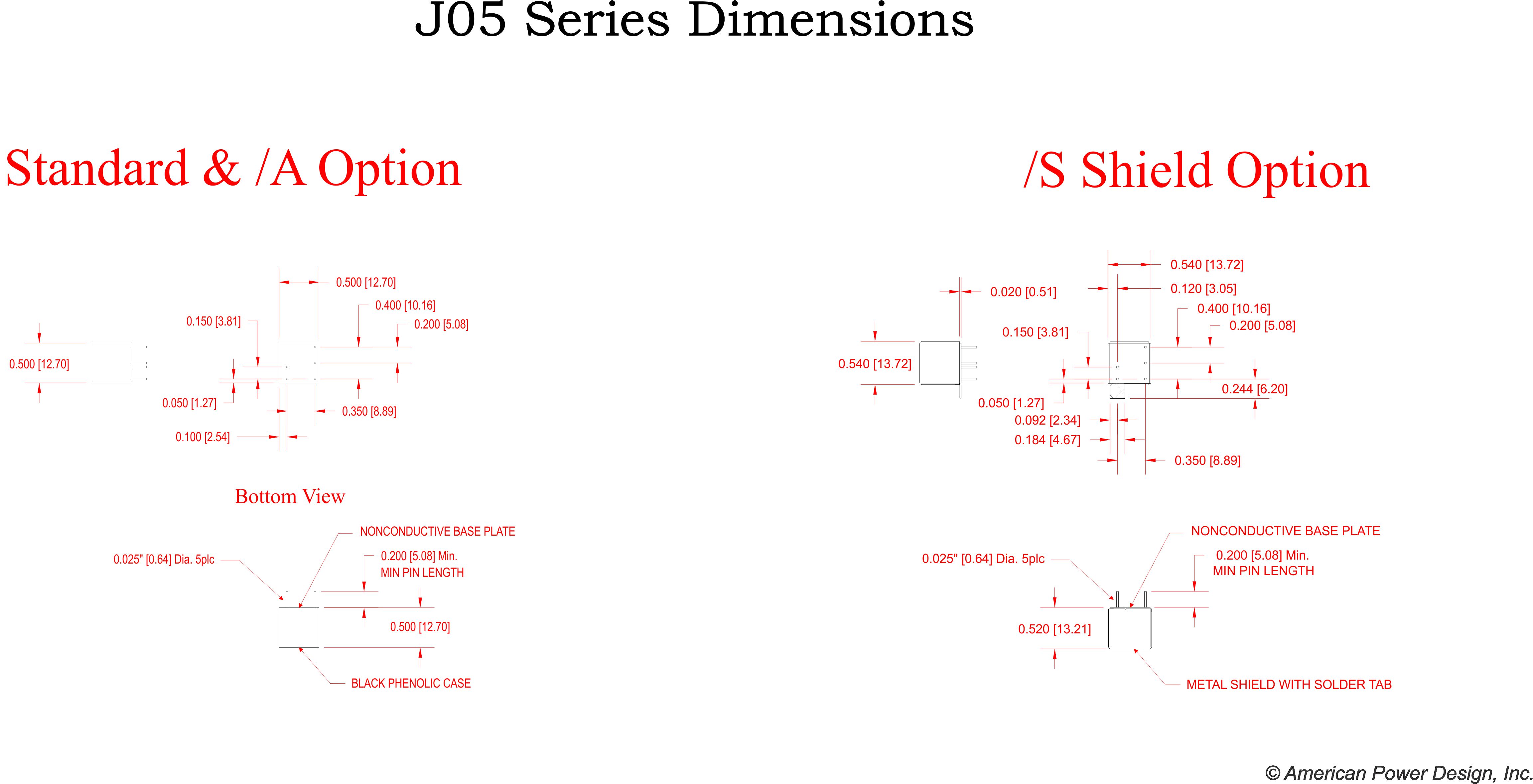

Dimensions: 0.5 x 0.5 x 0.5 [INCHES]
Weight: 0.15Oz
 Case Material: Black Plastic
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
-2000.0 Vdc0.25 mA 0.0-12.0 Vdc60%0.5W
J05-2N200
J05-2N200/Y
-2000.0 Vdc0.25 mA 0.0-24.0 Vdc60%0.5W
J05-4N200
J05-4N200/Y
-2000.0 Vdc0.25 mA 0.0-5.0 Vdc60%0.5W
J05-5N200
J05-5N200/Y
-1500.0 Vdc0.33 mA 0.0-12.0 Vdc60%0.5W
J05-2N150
J05-2N150/Y
-1500.0 Vdc0.33 mA 0.0-24.0 Vdc60%0.5W
J05-4N150
J05-4N150/Y
-1500.0 Vdc0.33 mA 0.0-5.0 Vdc60%0.5W
J05-5N150
J05-5N150/Y
-1200.0 Vdc0.42 mA 0.0-12.0 Vdc60%0.5W
J05-2N120
J05-2N120/Y
-1200.0 Vdc0.42 mA 0.0-24.0 Vdc60%0.5W
J05-4N120
J05-4N120/Y
-1200.0 Vdc0.42 mA 0.0-5.0 Vdc60%0.5W
J05-5N120
J05-5N120/Y
-1000.0 Vdc0.5 mA 0.0-12.0 Vdc60%0.5W
J05-2N100
J05-2N100/Y
-1000.0 Vdc0.5 mA 0.0-24.0 Vdc60%0.5W
J05-4N100
J05-4N100/Y
-1000.0 Vdc0.5 mA 0.0-5.0 Vdc60%0.5W
J05-5N100
J05-5N100/Y
50.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc60%0.5W
J05-2D5
J05-2D5/Y
50.0 Vdc5 mA
5 mA		 0.0-24.0 Vdc60%0.5W
J05-4D5
J05-4D5/Y
50.0 Vdc5 mA
5 mA		 0.0-5.0 Vdc60%0.5W
J05-5D5
J05-5D5/Y
100.0 Vdc2.5 mA
2.5 mA		 0.0-12.0 Vdc60%0.5W
J05-2D10
J05-2D10/Y
100.0 Vdc5 mA 0.0-12.0 Vdc60%0.5W
J05-2R10
J05-2R10/Y
100.0 Vdc2.5 mA
2.5 mA		 0.0-24.0 Vdc60%0.5W
J05-4D10
J05-4D10/Y
100.0 Vdc5 mA 0.0-24.0 Vdc60%0.5W
J05-4R10
J05-4R10/Y
100.0 Vdc2.5 mA
2.5 mA		 0.0-5.0 Vdc60%0.5W
J05-5D10
J05-5D10/Y
100.0 Vdc5 mA 0.0-5.0 Vdc60%0.5W
J05-5R10
J05-5R10/Y
150.0 Vdc1.67 mA
1.67 mA		 0.0-12.0 Vdc60%0.5W
J05-2D15
J05-2D15/Y
150.0 Vdc3.33 mA 0.0-12.0 Vdc60%0.5W
J05-2R15
J05-2R15/Y
150.0 Vdc1.67 mA
1.67 mA		 0.0-24.0 Vdc60%0.5W
J05-4D15
J05-4D15/Y
150.0 Vdc3.33 mA 0.0-24.0 Vdc60%0.5W
J05-4R15
J05-4R15/Y
150.0 Vdc1.67 mA
1.67 mA		 0.0-5.0 Vdc60%0.5W
J05-5D15
J05-5D15/Y
150.0 Vdc3.33 mA 0.0-5.0 Vdc60%0.5W
J05-5R15
J05-5R15/Y
200.0 Vdc1.25 mA
1.25 mA		 0.0-12.0 Vdc60%0.5W
J05-2D20
J05-2D20/Y
200.0 Vdc2.5 mA 0.0-12.0 Vdc60%0.5W
J05-2R20
J05-2R20/Y
200.0 Vdc1.25 mA
1.25 mA		 0.0-24.0 Vdc60%0.5W
J05-4D20
J05-4D20/Y
200.0 Vdc2.5 mA 0.0-24.0 Vdc60%0.5W
J05-4R20
J05-4R20/Y
200.0 Vdc1.25 mA
1.25 mA		 0.0-5.0 Vdc60%0.5W
J05-5D20
J05-5D20/Y
200.0 Vdc2.5 mA 0.0-5.0 Vdc60%0.5W
J05-5R20
J05-5R20/Y
250.0 Vdc1 mA
1 mA		 0.0-12.0 Vdc60%0.5W
J05-2D25
J05-2D25/Y
250.0 Vdc2 mA 0.0-12.0 Vdc60%0.5W
J05-2R25
J05-2R25/Y
250.0 Vdc1 mA
1 mA		 0.0-24.0 Vdc60%0.5W
J05-4D25
J05-4D25/Y
250.0 Vdc2 mA 0.0-24.0 Vdc60%0.5W
J05-4R25
J05-4R25/Y
250.0 Vdc1 mA
1 mA		 0.0-5.0 Vdc60%0.5W
J05-5D25
J05-5D25/Y
250.0 Vdc2 mA 0.0-5.0 Vdc60%0.5W
J05-5R25
J05-5R25/Y
300.0 Vdc0.83 mA
0.83 mA		 0.0-12.0 Vdc60%0.5W
J05-2D30
J05-2D30/Y
300.0 Vdc1.67 mA 0.0-12.0 Vdc60%0.5W
J05-2R30
J05-2R30/Y
300.0 Vdc0.83 mA
0.83 mA		 0.0-24.0 Vdc60%0.5W
J05-4D30
J05-4D30/Y
300.0 Vdc1.67 mA 0.0-24.0 Vdc60%0.5W
J05-4R30
J05-4R30/Y
300.0 Vdc0.83 mA
0.83 mA		 0.0-5.0 Vdc60%0.5W
J05-5D30
J05-5D30/Y
300.0 Vdc1.67 mA 0.0-5.0 Vdc60%0.5W
J05-5R30
J05-5R30/Y
350.0 Vdc0.72 mA
0.72 mA		 0.0-12.0 Vdc60%0.5W
J05-2D35
J05-2D35/Y
350.0 Vdc1.43 mA 0.0-12.0 Vdc60%0.5W
J05-2R35
J05-2R35/Y
350.0 Vdc0.72 mA
0.72 mA		 0.0-24.0 Vdc60%0.5W
J05-4D35
J05-4D35/Y
350.0 Vdc1.43 mA 0.0-24.0 Vdc60%0.5W
J05-4R35
J05-4R35/Y
350.0 Vdc0.72 mA
0.72 mA		 0.0-5.0 Vdc60%0.5W
J05-5D35
J05-5D35/Y
350.0 Vdc1.43 mA 0.0-5.0 Vdc60%0.5W
J05-5R35
J05-5R35/Y
400.0 Vdc0.63 mA
0.63 mA		 0.0-12.0 Vdc60%0.5W
J05-2D40
J05-2D40/Y
400.0 Vdc1.25 mA 0.0-12.0 Vdc60%0.5W
J05-2R40
J05-2R40/Y
400.0 Vdc0.63 mA
0.63 mA		 0.0-24.0 Vdc60%0.5W
J05-4D40
J05-4D40/Y
400.0 Vdc1.25 mA 0.0-24.0 Vdc60%0.5W
J05-4R40
J05-4R40/Y
400.0 Vdc0.63 mA
0.63 mA		 0.0-5.0 Vdc60%0.5W
J05-5D40
J05-5D40/Y
400.0 Vdc1.25 mA 0.0-5.0 Vdc60%0.5W
J05-5R40
J05-5R40/Y
450.0 Vdc0.56 mA
0.56 mA		 0.0-12.0 Vdc60%0.5W
J05-2D45
J05-2D45/Y
450.0 Vdc1.11 mA 0.0-12.0 Vdc60%0.5W
J05-2R45
J05-2R45/Y
450.0 Vdc0.56 mA
0.56 mA		 0.0-24.0 Vdc60%0.5W
J05-4D45
J05-4D45/Y
450.0 Vdc1.11 mA 0.0-24.0 Vdc60%0.5W
J05-4R45
J05-4R45/Y
450.0 Vdc0.56 mA
0.56 mA		 0.0-5.0 Vdc60%0.5W
J05-5D45
J05-5D45/Y
450.0 Vdc1.11 mA 0.0-5.0 Vdc60%0.5W
J05-5R45
J05-5R45/Y
500.0 Vdc1 mA 0.0-12.0 Vdc60%0.5W
J05-2R50
J05-2R50/Y
500.0 Vdc1 mA 0.0-24.0 Vdc60%0.5W
J05-4R50
J05-4R50/Y
500.0 Vdc1 mA 0.0-5.0 Vdc60%0.5W
J05-5R50
J05-5R50/Y
600.0 Vdc0.83 mA 0.0-12.0 Vdc60%0.5W
J05-2R60
J05-2R60/Y
600.0 Vdc0.83 mA 0.0-24.0 Vdc60%0.5W
J05-4R60
J05-4R60/Y
600.0 Vdc0.83 mA 0.0-5.0 Vdc60%0.5W
J05-5R60
J05-5R60/Y
700.0 Vdc0.72 mA 0.0-12.0 Vdc60%0.5W
J05-2R70
J05-2R70/Y
700.0 Vdc0.72 mA 0.0-24.0 Vdc60%0.5W
J05-4R70
J05-4R70/Y
700.0 Vdc0.72 mA 0.0-5.0 Vdc60%0.5W
J05-5R70
J05-5R70/Y
800.0 Vdc0.63 mA 0.0-12.0 Vdc60%0.5W
J05-2R80
J05-2R80/Y
800.0 Vdc0.63 mA 0.0-24.0 Vdc60%0.5W
J05-4R80
J05-4R80/Y
800.0 Vdc0.63 mA 0.0-5.0 Vdc60%0.5W
J05-5R80
J05-5R80/Y
900.0 Vdc0.56 mA 0.0-12.0 Vdc60%0.5W
J05-2R90
J05-2R90/Y
900.0 Vdc0.56 mA 0.0-24.0 Vdc60%0.5W
J05-4R90
J05-4R90/Y
900.0 Vdc0.56 mA 0.0-5.0 Vdc60%0.5W
J05-5R90
J05-5R90/Y
1000.0 Vdc0.5 mA 0.0-12.0 Vdc60%0.5W
J05-2P100
J05-2P100/Y
1000.0 Vdc0.5 mA 0.0-24.0 Vdc60%0.5W
J05-4P100
J05-4P100/Y
1000.0 Vdc0.5 mA 0.0-5.0 Vdc60%0.5W
J05-5P100
J05-5P100/Y
1200.0 Vdc0.42 mA 0.0-12.0 Vdc60%0.5W
J05-2P120
J05-2P120/Y
1200.0 Vdc0.42 mA 0.0-24.0 Vdc60%0.5W
J05-4P120
J05-4P120/Y
1200.0 Vdc0.42 mA 0.0-5.0 Vdc60%0.5W
J05-5P120
J05-5P120/Y
1500.0 Vdc0.33 mA 0.0-12.0 Vdc60%0.5W
J05-2P150
J05-2P150/Y
1500.0 Vdc0.33 mA 0.0-24.0 Vdc60%0.5W
J05-4P150
J05-4P150/Y
1500.0 Vdc0.33 mA 0.0-5.0 Vdc60%0.5W
J05-5P150
J05-5P150/Y
2000.0 Vdc0.25 mA 0.0-12.0 Vdc60%0.5W
J05-2P200
J05-2P200/Y
2000.0 Vdc0.25 mA 0.0-24.0 Vdc60%0.5W
J05-4P200
J05-4P200/Y
2000.0 Vdc0.25 mA 0.0-5.0 Vdc60%0.5W
J05-5P200
J05-5P200/Y
