S10 Series 10.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • High Power Density
  • Single and Dual Outputs
  • Ultra Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection

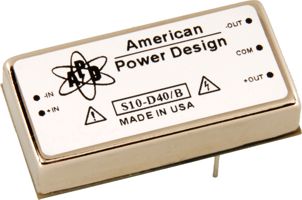

The S10 Series low profile high voltage DC/DC converter offers a 1 kVdc isolated single or dual high voltage output in a 1 x 2 x 0.41 [INCHES] case. Their small size, wide input, and excellent regulation make them ideally suited for applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +70 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 9-36Vdc, 20-60Vdc, 36-72Vdc
Voltage Accuracy: 5% / 5%
Line Regulation: 1%
Load Regulation: 3% (20% - FL)
Output Ripple: 0.5%
 Input Filter: Low ESR Cap
Efficiency: 83%
Short Circuit Protection: Continuous
Switching Frequency: 100 kHz
Isolation: 1 kVdc
Dimensions: 1 x 2 x 0.41 [INCHES]
Weight: 1.2 Oz
 Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
24.0 Vdc
24.0 Vdc		208 mA
208 mA		 9.0-36.0 Vdc83%10.0W
S10-D24
S10-D24/Y
24.0 Vdc
24.0 Vdc		208 mA
208 mA		 20.0-60.0 Vdc83%10.0W
S10-D24/B
S10-D24/B/Y
24.0 Vdc
24.0 Vdc		208 mA
208 mA		 36.0-72.0 Vdc83%10.0W
S10-D24/C
S10-D24/C/Y
24.0 Vdc416 mA 9.0-36.0 Vdc83%10.0W
S10-S24
S10-S24/Y
24.0 Vdc416 mA 20.0-60.0 Vdc83%10.0W
S10-S24/B
S10-S24/B/Y
24.0 Vdc416 mA 36.0-72.0 Vdc83%10.0W
S10-S24/C
S10-S24/C/Y
40.0 Vdc
40.0 Vdc		125 mA
125 mA		 9.0-36.0 Vdc83%10.0W
S10-D40
S10-D40/Y
40.0 Vdc
40.0 Vdc		125 mA
125 mA		 20.0-60.0 Vdc83%10.0W
S10-D40/B
S10-D40/B/Y
48.0 Vdc
48.0 Vdc		104 mA
104 mA		 9.0-36.0 Vdc83%10.0W
S10-D48
S10-D48/Y
48.0 Vdc
48.0 Vdc		104 mA
104 mA		 20.0-60.0 Vdc83%10.0W
S10-D48/B
S10-D48/B/Y
48.0 Vdc
48.0 Vdc		104 mA
104 mA		 36.0-72.0 Vdc83%10.0W
S10-D48/C
S10-D48/C/Y
48.0 Vdc208 mA 9.0-36.0 Vdc83%10.0W
S10-S48
S10-S48/Y
48.0 Vdc208 mA 20.0-60.0 Vdc83%10.0W
S10-S48/B
S10-S48/B/Y
48.0 Vdc208 mA 36.0-72.0 Vdc83%10.0W
S10-S48/C
S10-S48/C/Y
60.0 Vdc
60.0 Vdc		83.3 mA
83.3 mA		 9.0-36.0 Vdc83%10.0W
S10-D60
S10-D60/Y
80.0 Vdc125 mA 9.0-36.0 Vdc83%10.0W
S10-S80
S10-S80/Y
90.0 Vdc
90.0 Vdc		55.5 mA
55.5 mA		 9.0-36.0 Vdc89%10.0W
S10-D90
S10-D90/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 9.0-36.0 Vdc89%10.0W
S10-D100
S10-D100/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 20.0-60.0 Vdc83%10.0W
S10-D100/B
S10-D100/B/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 36.0-72.0 Vdc89%10.0W
S10-D100/C
S10-D100/C/Y
100.0 Vdc100 mA 9.0-36.0 Vdc83%10.0W
S10-S100
S10-S100/Y
100.0 Vdc100 mA 20.0-60.0 Vdc83%10.0W
S10-S100/B
S10-S100/B/Y
100.0 Vdc100 mA 36.0-72.0 Vdc83%10.0W
S10-S100/C
S10-S100/C/Y
105.0 Vdc
105.0 Vdc		47.6 mA
47.6 mA		 20.0-60.0 Vdc83%10.0W
S10-D105/B
S10-D105/B/Y
140.0 Vdc
140.0 Vdc		35.7 mA
35.7 mA		 9.0-36.0 Vdc83%10.0W
S10-D140
S10-D140/Y
140.0 Vdc
140.0 Vdc		35.7 mA
35 mA		 20.0-60.0 Vdc83%10.0W
S10-D140/B
S10-D140/B/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 9.0-36.0 Vdc92%10.0W
S10-D150
S10-D150/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 20.0-60.0 Vdc89%10.0W
S10-D150/B
S10-D150/B/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 36.0-72.0 Vdc83%10.0W
S10-D150/C
S10-D150/C/Y
150.0 Vdc66 mA 9.0-36.0 Vdc83%10.0W
S10-S150
S10-S150/Y
150.0 Vdc66 mA 20.0-60.0 Vdc83%10.0W
S10-S150/B
S10-S150/B/Y
150.0 Vdc66 mA 36.0-72.0 Vdc83%10.0W
S10-S150/C
S10-S150/C/Y
175.0 Vdc
175.0 Vdc		28.6 mA
28.6 mA		 20.0-60.0 Vdc83%10.0W
S10-D175/B
S10-D175/B/Y
180.0 Vdc55 mA 9.0-36.0 Vdc83%10.0W
S10-S180
S10-S180/Y
185.0 Vdc54.1 mA 9.0-36.0 Vdc83%10.0W
S10-S185
S10-S185/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 9.0-36.0 Vdc83%10.0W
S10-D200
S10-D200/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 20.0-60.0 Vdc83%10.0W
S10-D200/B
S10-D200/B/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 36.0-72.0 Vdc89%10.0W
S10-D200/C
S10-D200/C/Y
200.0 Vdc50 mA 9.0-36.0 Vdc90%10.0W
S10-S200
S10-S200/Y
200.0 Vdc50 mA 20.0-60.0 Vdc83%10.0W
S10-S200/B
S10-S200/B/Y
200.0 Vdc50 mA 36.0-72.0 Vdc88%10.0W
S10-S200/C
S10-S200/C/Y
220.0 Vdc45.5 mA 9.0-36.0 Vdc90%10.0W
S10-S220
S10-S220/Y
225.0 Vdc
225.0 Vdc		22.2 mA
22.2 mA		 9.0-36.0 Vdc88%10.0W
S10-D225
S10-D225/Y
250.0 Vdc
250.0 Vdc		20 mA
20 mA		 9.0-36.0 Vdc84%10.0W
S10-D250
S10-D250/Y
250.0 Vdc40 mA 9.0-36.0 Vdc83%10.0W
S10-S250
S10-S250/Y
275.0 Vdc
275.0 Vdc		18.1 mA
18.1 mA		 9.0-36.0 Vdc84%10.0W
S10-D275
S10-D275/Y
300.0 Vdc
300.0 Vdc		16.6 mA
16.6 mA		 9.0-36.0 Vdc84%10.0W
S10-D300
S10-D300/Y
300.0 Vdc
300.0 Vdc		16.6 mA
16.6 mA		 20.0-60.0 Vdc86%10.0W
S10-D300/B
S10-D300/B/Y
300.0 Vdc
300.0 Vdc		16.6 mA
16.6 mA		 36.0-72.0 Vdc83%10.0W
S10-D300/C
S10-D300/C/Y
300.0 Vdc33 mA 9.0-36.0 Vdc91%10.0W
S10-S300
S10-S300/Y
300.0 Vdc33 mA 20.0-60.0 Vdc83%10.0W
S10-S300/B
S10-S300/B/Y
300.0 Vdc33 mA 36.0-72.0 Vdc83%10.0W
S10-S300/C
S10-S300/C/Y
320.0 Vdc
320.0 Vdc		15.6 mA
15.6 mA		 9.0-36.0 Vdc83%10.0W
S10-D320
S10-D320/Y
320.0 Vdc31.3 mA 9.0-36.0 Vdc83%10.0W
S10-S320
S10-S320/Y
350.0 Vdc28.6 mA 9.0-36.0 Vdc89%10.0W
S10-S350
S10-S350/Y
380.0 Vdc
380.0 Vdc		13.2 mA
13.2 mA		 9.0-36.0 Vdc83%10.0W
S10-D380
S10-D380/Y
380.0 Vdc26.3 mA 9.0-36.0 Vdc89%10.0W
S10-S380
S10-S380/Y
400.0 Vdc
400.0 Vdc		12.5 mA
12.5 mA		 9.0-36.0 Vdc83%10.0W
S10-D400
S10-D400/Y
400.0 Vdc
400.0 Vdc		12.5 mA
12.5 mA		 20.0-60.0 Vdc83%10.0W
S10-D400/B
S10-D400/B/Y
400.0 Vdc
400.0 Vdc		12.5 mA
12.5 mA		 36.0-72.0 Vdc83%10.0W
S10-D400/C
S10-D400/C/Y
400.0 Vdc25 mA 9.0-36.0 Vdc88%10.0W
S10-S400
S10-S400/Y
400.0 Vdc25 mA 20.0-60.0 Vdc87%10.0W
S10-S400/B
S10-S400/B/Y
400.0 Vdc25 mA 36.0-72.0 Vdc83%10.0W
S10-S400/C
S10-S400/C/Y
425.0 Vdc
425.0 Vdc		12 mA
12 mA		 9.0-36.0 Vdc83%10.0W
S10-D425
S10-D425/Y
450.0 Vdc22.2 mA 9.0-36.0 Vdc88%10.0W
S10-S450
S10-S450/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 9.0-36.0 Vdc85%10.0W
S10-D500
S10-D500/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 20.0-60.0 Vdc83%10.0W
S10-D500/B
S10-D500/B/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 36.0-72.0 Vdc83%10.0W
S10-D500/C
S10-D500/C/Y
500.0 Vdc20 mA 9.0-36.0 Vdc83%10.0W
S10-S500
S10-S500/Y
500.0 Vdc20 mA 20.0-60.0 Vdc83%10.0W
S10-S500/B
S10-S500/B/Y
500.0 Vdc20 mA 36.0-72.0 Vdc83%10.0W
S10-S500/C
S10-S500/C/Y
600.0 Vdc16.6 mA 9.0-36.0 Vdc83%10.0W
S10-S600
S10-S600/Y
600.0 Vdc16.6 mA 20.0-60.0 Vdc83%10.0W
S10-S600/B
S10-S600/B/Y
600.0 Vdc16.6 mA 36.0-72.0 Vdc83%10.0W
S10-S600/C
S10-S600/C/Y
650.0 Vdc15.4 mA 9.0-36.0 Vdc83%10.0W
S10-S650
S10-S650/Y
800.0 Vdc12.5 mA 9.0-36.0 Vdc83%10.0W
S10-S800
S10-S800/Y
900.0 Vdc11.1 mA 9.0-36.0 Vdc83%10.0W
S10-S900
S10-S900/Y
1000.0 Vdc10 mA 9.0-36.0 Vdc84%10.0W
S10-S1000
S10-S1000/Y
1000.0 Vdc10 mA 20.0-60.0 Vdc85%10.0W
S10-S1000/B
S10-S1000/B/Y
1000.0 Vdc10 mA 36.0-72.0 Vdc83%10.0W
S10-S1000/C
S10-S1000/C/Y



Full Product Specification
PDF format

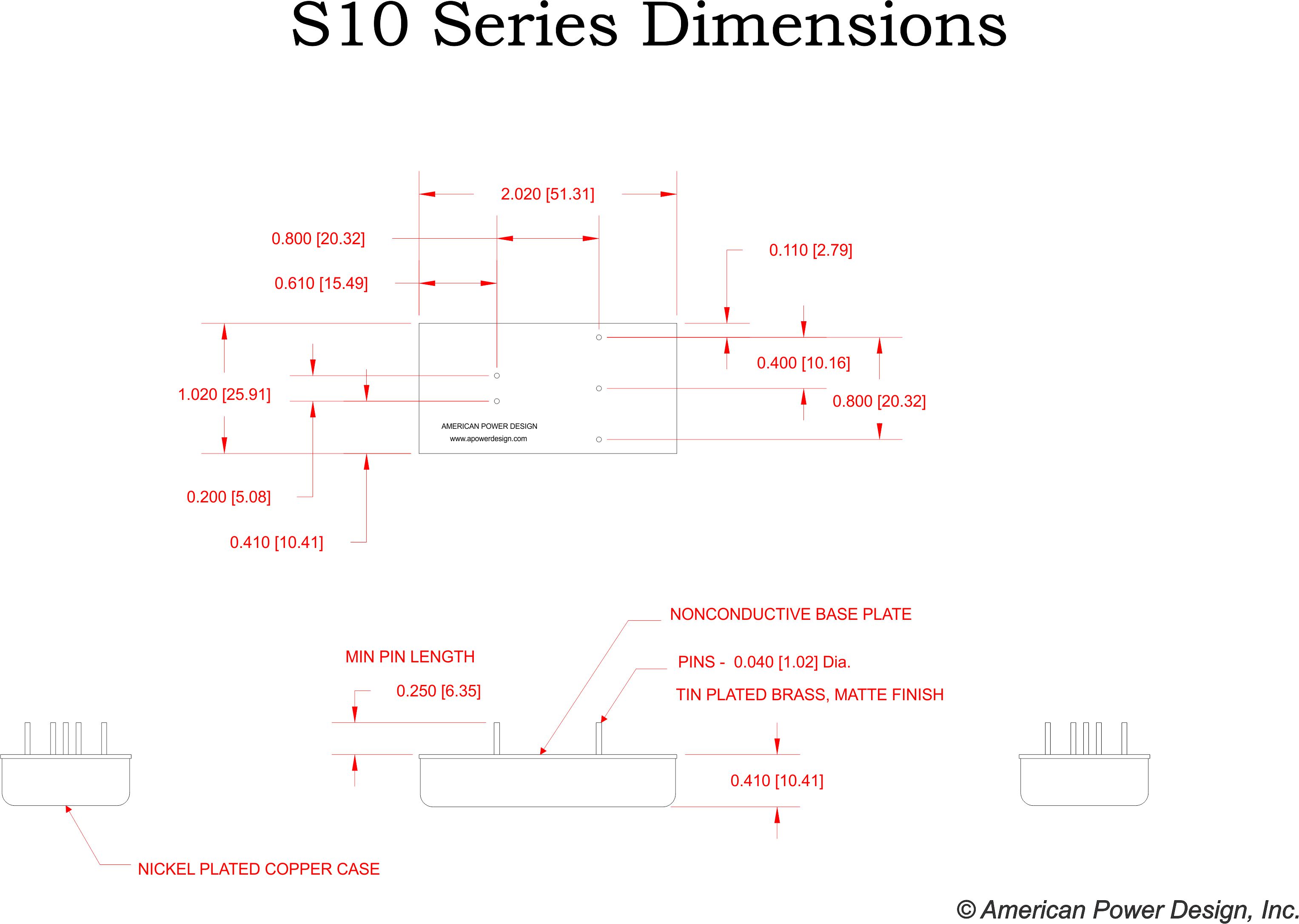

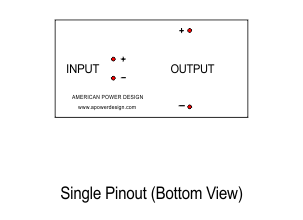

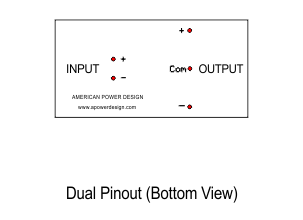

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
