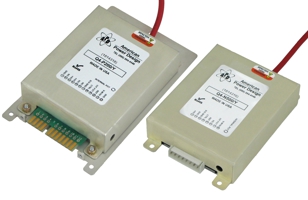

Q4 Series 4.0 Watt
High Voltage DC/DC Converters
 |
|
The Q4 Series high voltage DC/DC converter offers a 4.0W 100% programable high voltage output using a 0 to 9Vdc analog signal. Their exceptionally low noise, regulation, and stability make them ideally suited for applications including: Photomultiplier tubes, MASS Spectrometers, Radiation Counters and Ultrasonic Transducers. |
|
| Temp. (Stability): 0.005%/Deg C Temp. (Operating Case): 0 to +50 Deg C Temp. (Storage): -40 to +85 Deg C EMI/RFI: Six Sided Shield Derating: None Cooling: Free-Air Convection |
* All models designed to meet IEC/UL/CSA/EN 62368 * * For RoHS Compliant part, add suffix /Y |
 | |
 |
| Input Ranges: 24V-30Vdc Voltage Accuracy: 1% Line Regulation: 0.001% Load Regulation: 0.001% Output Ripple: 0.0001% |
Input Filter: Low ESR Cap Efficiency: 50%% Short Circuit Protection: Continuous Switching Frequency: 150k-250kHz Isolation: None |
| Dimensions: 5.12 x 3.54 x 1.1 [INCHES] Weight: 5.4 Oz |
Case Material: Coated Aluminum |
| Models Currently In Production |
| Output Voltage | Current | Input Voltage | Efficiency | Power | Model Number | ||||
| -5000.0 Vdc | 0.8 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| -3000.0 Vdc | 1.3 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| -2000.0 Vdc | 2 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| -1500.0 Vdc | 2.6 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| -1000.0 Vdc | 4 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| -500.0 Vdc | 8 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| 500.0 Vdc | 8 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| 1000.0 Vdc | 4 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| 1500.0 Vdc | 2.6 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| 2000.0 Vdc | 2 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| 3000.0 Vdc | 1.3 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
| 5000.0 Vdc | 0.8 mA | 24.0-30.0 Vdc | 50% | 4.0W |
| ||||
Full Product Specification
|

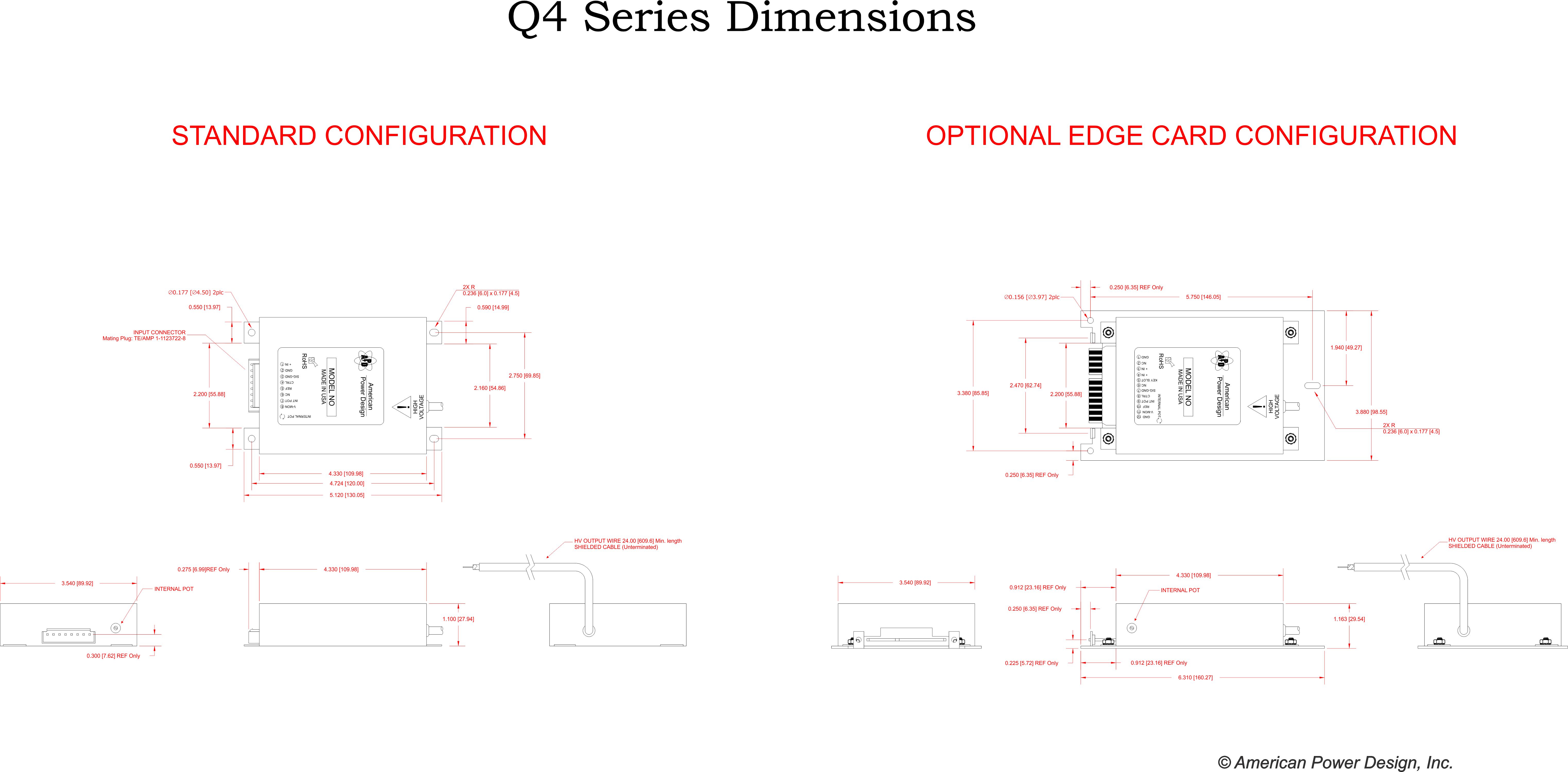

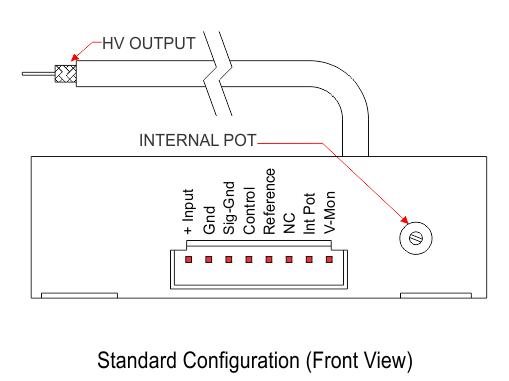

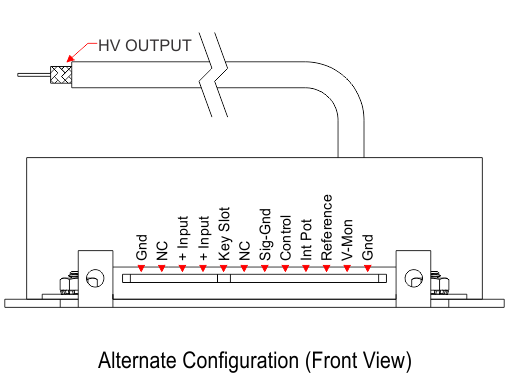

Mechanical Drawings
|
