E1 Series 1.0 Watt

High Voltage DC/DC Converters

General Specs
Electrical Specs

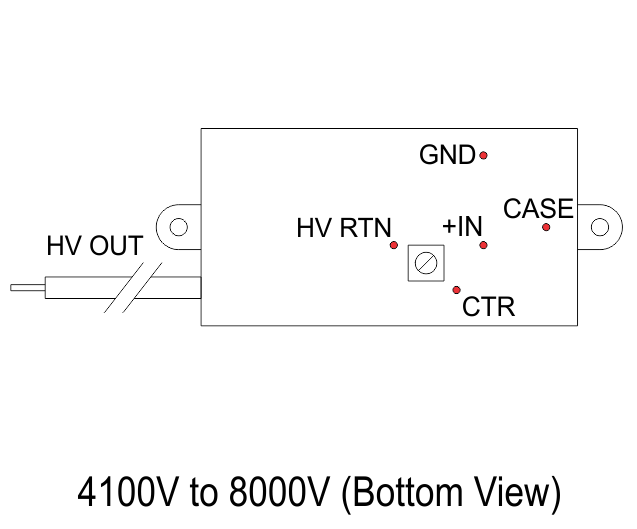

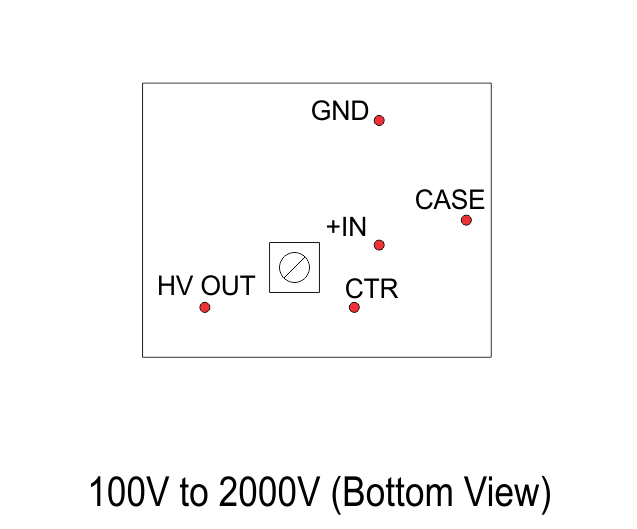

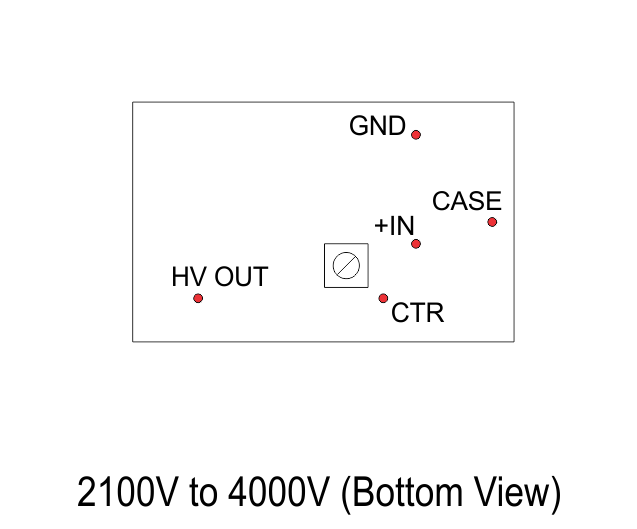

Physical Specs
Model Listing

	Features Customer Selects Output Voltage Fully Regulated Outputs to + or -8000Vdc 0-100% Programable Outputs High Stability (0.005%/Deg C) Low Output Noise & EMI/RFI External Calibration Adjustment Continuous Short Circuit Protection

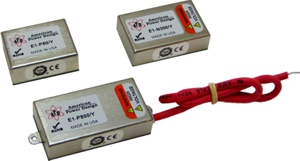

The E1 Series miniature regulated high voltage DC/DC converter offers a 100% programable high voltage output using a 0-5Vdc analog signal. Their small size, low output ripple, and excellent regulation make them ideally suited for applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.

Temp. (Stability): 0.005%/Deg C
Temp. (Operating Case): -10 to +60 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y

Input Ranges: 11.5V-16Vdc
Voltage Accuracy: 1% / 1%
Line Regulation: 0.05%
Load Regulation: 0.05%
Output Ripple: 0.002% P-P

Input Filter: Low ESR Cap
Efficiency: 40%
Short Circuit Protection: Continuous
Switching Frequency: 180k-250kHz
Isolation: None

Dimensions: Case Size Varies
Weight: Weight Varies

Case Material: Nickle Plated Metal

Models Currently In Production

Output Voltage

Current

Input Voltage

Efficiency

Power

Model Number

-8000.0 Vdc

0.125 mA

11.5-16.0 Vdc

40%

1.0W

E1-N800
E1-N800/Y

-6000.0 Vdc

0.166 mA

11.5-16.0 Vdc

40%

1.0W

E1-N600
E1-N600/Y

-5000.0 Vdc

0.2 mA

11.5-16.0 Vdc

40%

1.0W

E1-N500
E1-N500/Y

-4000.0 Vdc

0.25 mA

11.5-16.0 Vdc

40%

1.0W

E1-N400
E1-N400/Y

-3000.0 Vdc

0.33 mA

11.5-16.0 Vdc

40%

1.0W

E1-N300
E1-N300/Y

-2500.0 Vdc

0.4 mA

11.5-16.0 Vdc

40%

1.0W

E1-N250
E1-N250/Y

-2000.0 Vdc

0.5 mA

11.5-16.0 Vdc

40%

1.0W

E1-N200
E1-N200/Y

-1500.0 Vdc

0.67 mA

11.5-16.0 Vdc

40%

1.0W

E1-N150
E1-N150/Y

-1250.0 Vdc

1 mA

11.5-16.0 Vdc

40%

1.0W

E1-N125
E1-N125/Y

-1000.0 Vdc

1 mA

11.5-16.0 Vdc

40%

1.0W

E1-N100
E1-N100/Y

-600.0 Vdc

1.67 mA

11.5-16.0 Vdc

40%

1.0W

E1-N60
E1-N60/Y

-500.0 Vdc

2 mA

11.5-16.0 Vdc

40%

1.0W

E1-N50
E1-N50/Y

-300.0 Vdc

3.3 mA

11.5-16.0 Vdc

40%

1.0W

E1-N30
E1-N30/Y

-200.0 Vdc

5 mA

11.5-16.0 Vdc

40%

1.0W

E1-N20
E1-N20/Y

-100.0 Vdc

10 mA

11.5-16.0 Vdc

40%

1.0W

E1-N10
E1-N10/Y

100.0 Vdc

10 mA

11.5-16.0 Vdc

40%

1.0W

E1-P10
E1-P10/Y

200.0 Vdc

5 mA

11.5-16.0 Vdc

40%

1.0W

E1-P20
E1-P20/Y

300.0 Vdc

3.3 mA

11.5-16.0 Vdc

40%

1.0W

E1-P30
E1-P30/Y

500.0 Vdc

2 mA

11.5-16.0 Vdc

40%

1.0W

E1-P50
E1-P50/Y

600.0 Vdc

1.67 mA

11.5-16.0 Vdc

40%

1.0W

E1-P60
E1-P60/Y

1000.0 Vdc

1 mA

11.5-16.0 Vdc

40%

1.0W

E1-P100
E1-P100/Y

1250.0 Vdc

1 mA

11.5-16.0 Vdc

40%

1.0W

E1-P125
E1-P125/Y

1500.0 Vdc

0.67 mA

11.5-16.0 Vdc

40%

1.0W

E1-P150
E1-P150/Y

2000.0 Vdc

0.5 mA

11.5-16.0 Vdc

40%

1.0W

E1-P200
E1-P200/Y

2500.0 Vdc

0.4 mA

11.5-16.0 Vdc

40%

1.0W

E1-P250
E1-P250/Y

3000.0 Vdc

0.33 mA

11.5-16.0 Vdc

40%

1.0W

E1-P300
E1-P300/Y

4000.0 Vdc

0.25 mA

11.5-16.0 Vdc

40%

1.0W

E1-P400
E1-P400/Y

5000.0 Vdc

0.2 mA

11.5-16.0 Vdc

40%

1.0W

E1-P500
E1-P500/Y

6000.0 Vdc

0.166 mA

11.5-16.0 Vdc

40%

1.0W

E1-P600
E1-P600/Y

8000.0 Vdc

0.125 mA

11.5-16.0 Vdc

40%

1.0W

E1-P800
E1-P800/Y
