A100 Series 100.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 200Vdc
  • High Power Density
  • Ultra Wide Input Range
  • Excellent Line & Load Regulation
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection

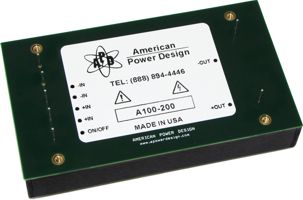

The A100 Series high voltage DC/DC converter offers a highly regulated high voltage isolated output in a six-sided metal case.  Their small size, wide input, and excellent regulation make them ideally suited for applications that demand a high degree of performance.  All models will tolerate a short circuit indefinitely.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +70 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 10-20Vdc, 18-36Vdc, 36-72Vdc
Voltage Accuracy: 1%
Line Regulation: 0.2%
Load Regulation: 0.3%
Output Ripple: 0.3%
 Input Filter: PI Network
Efficiency: 90%
Short Circuit Protection: Continuous
Switching Frequency: 130 kHz
Isolation: 1 kVdc

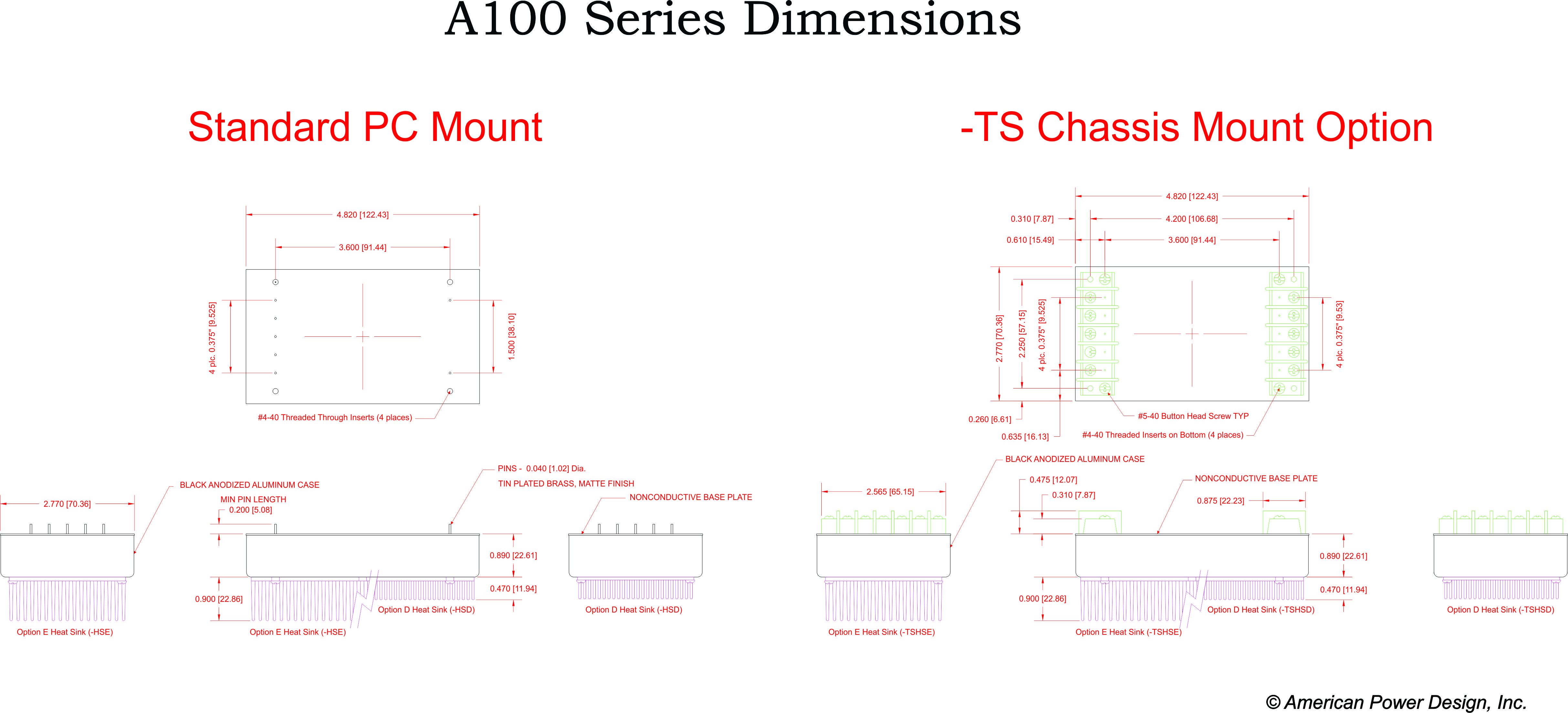

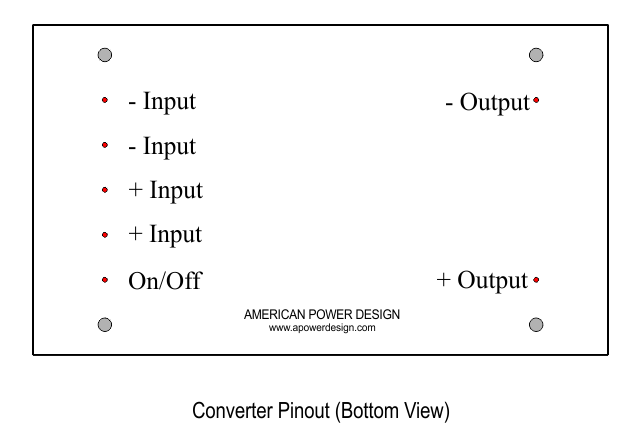

Dimensions: 2.75 x 4.8 x 0.92 [INCHES]
Weight: 13.5 Oz
 Case Material: Black Coated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
48.0 Vdc2.1 A 10.0-20.0 Vdc90%100.0W
A100-48
A100-48/Y
48.0 Vdc2.1 A 18.0-36.0 Vdc90%100.0W
A100-48/A
A100-48/A/Y
48.0 Vdc2.1 A 36.0-72.0 Vdc90%100.0W
A100-48/C
A100-48/C/Y
75.0 Vdc1.3 A 10.0-20.0 Vdc90%100.0W
A100-75
A100-75/Y
75.0 Vdc1.3 A 18.0-36.0 Vdc90%100.0W
A100-75/A
A100-75/A/Y
75.0 Vdc1.3 A 36.0-72.0 Vdc90%100.0W
A100-75/C
A100-75/C/Y
100.0 Vdc1 A 10.0-20.0 Vdc90%100.0W
A100-100
A100-100/Y
100.0 Vdc1 A 18.0-36.0 Vdc90%100.0W
A100-100/A
A100-100/A/Y
100.0 Vdc1 A 36.0-72.0 Vdc90%100.0W
A100-100/C
A100-100/C/Y
120.0 Vdc833 mA 10.0-20.0 Vdc90%100.0W
A100-120
A100-120/Y
120.0 Vdc833 mA 18.0-36.0 Vdc90%100.0W
A100-120/A
A100-120/A/Y
120.0 Vdc833 mA 36.0-72.0 Vdc90%100.0W
A100-120/C
A100-120/C/Y
140.0 Vdc714 mA 10.0-20.0 Vdc90%100.0W
A100-140
A100-140/Y
140.0 Vdc714 mA 18.0-36.0 Vdc90%100.0W
A100-140/A
A100-140/A/Y
140.0 Vdc714 mA 36.0-72.0 Vdc90%100.0W
A100-140/C
A100-140/C/Y
150.0 Vdc666 mA 10.0-20.0 Vdc89%100.0W
A100-150
A100-150/Y
150.0 Vdc666 mA 18.0-36.0 Vdc90%100.0W
A100-150/A
A100-150/A/Y
150.0 Vdc666 mA 36.0-72.0 Vdc90%100.0W
A100-150/C
A100-150/C/Y
160.0 Vdc625 mA 10.0-20.0 Vdc90%100.0W
A100-160
A100-160/Y
160.0 Vdc625 mA 18.0-36.0 Vdc90%100.0W
A100-160/A
A100-160/A/Y
160.0 Vdc625 mA 36.0-72.0 Vdc90%100.0W
A100-160/C
A100-160/C/Y
180.0 Vdc555 mA 10.0-20.0 Vdc90%100.0W
A100-180
A100-180/Y
180.0 Vdc555 mA 18.0-36.0 Vdc90%100.0W
A100-180/A
A100-180/A/Y
180.0 Vdc555 mA 36.0-72.0 Vdc90%100.0W
A100-180/C
A100-180/C/Y
200.0 Vdc500 mA 10.0-20.0 Vdc89%100.0W
A100-200
A100-200/Y
200.0 Vdc500 mA 18.0-36.0 Vdc90%100.0W
A100-200/A
A100-200/A/Y
200.0 Vdc500 mA 36.0-72.0 Vdc89%100.0W
A100-200/C
A100-200/C/Y
