H10 Series 10.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • Efficiency to 83%
  • Independently Isolated Outputs
  • Ultra Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection
  • Remote On/Off Control

The H10 Series of DC/DC converters accepts ultra wide input ranges of 5-15Vdc, 9-36Vdc, 20-60Vdc. Outputs are independently isolated. In the case of duals, 80% power may be taken from either output. All models will tolerate a short circuit indefinitely. Also included is a PI Network input filter and remote on/off.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -45 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 5-15Vdc, 9-36Vdc, 20-60Vdc
Voltage Accuracy: 3% / 3%
Line Regulation: 3%
Load Regulation: 3% (20% - FL)
Output Ripple: 0.3%
 Input Filter: PI Network
Efficiency: 83%
Short Circuit Protection: Continuous
Switching Frequency: 100 kHz
Isolation: 1 kVdc

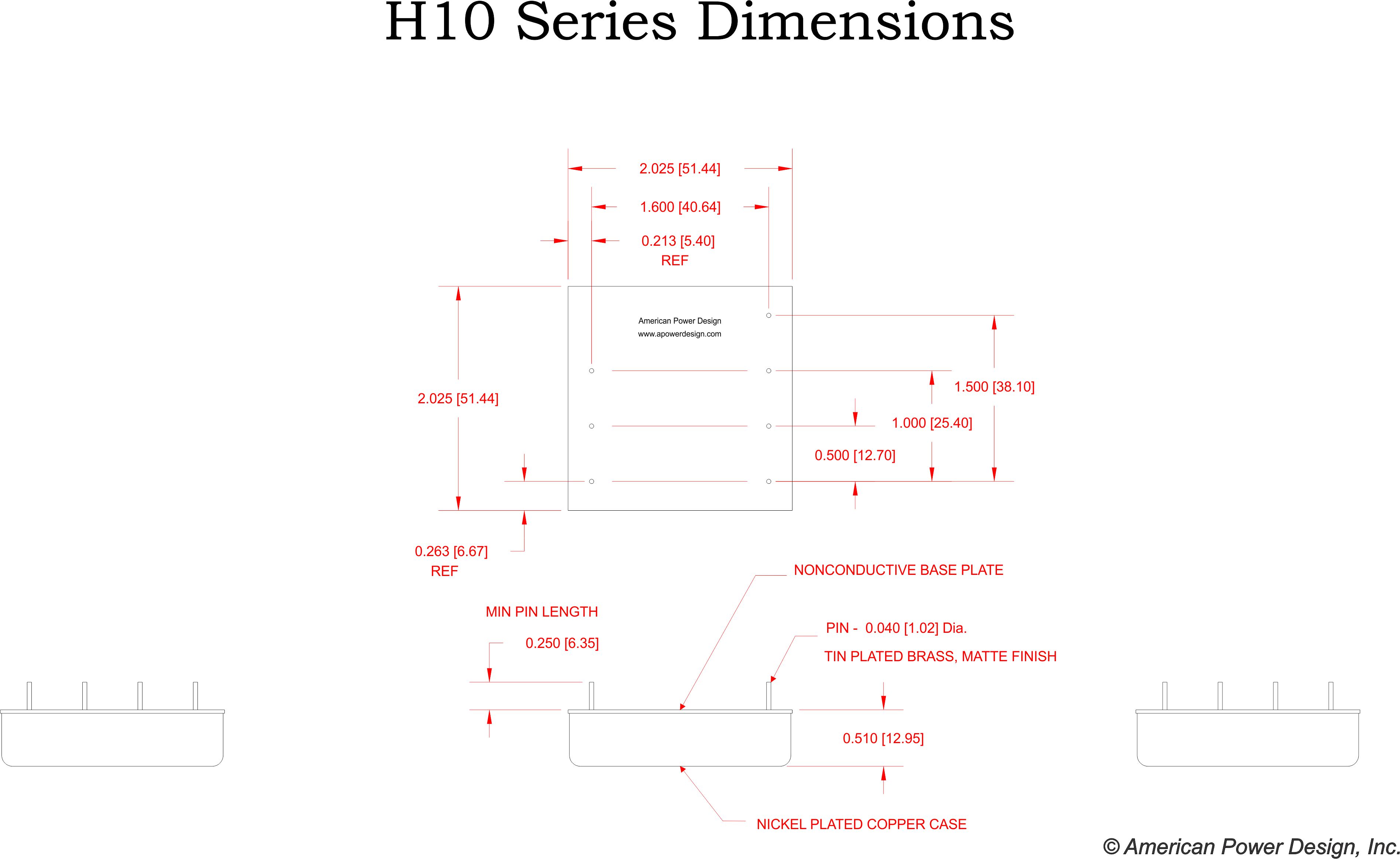

Dimensions: 2 x 2 x 0.5 [INCHES]
Weight: 2.8 Oz
 Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
30.0 Vdc
130.0 Vdc		166.7 mA
38.5 mA		 9.0-36.0 Vdc83%10.0W
H10-30/130/A
H10-30/130/A/Y
50.0 Vdc200 mA 5.0-15.0 Vdc83%10.0W
H10-50
H10-50/Y
50.0 Vdc
50.0 Vdc		100 mA
100 mA		 5.0-15.0 Vdc83%10.0W
H10-50/50
H10-50/50/Y
50.0 Vdc
50.0 Vdc		100 mA
100 mA		 9.0-36.0 Vdc83%10.0W
H10-50/50/A
H10-50/50/A/Y
50.0 Vdc
50.0 Vdc		100 mA
100 mA		 20.0-60.0 Vdc83%10.0W
H10-50/50/B
H10-50/50/B/Y
50.0 Vdc200 mA 9.0-36.0 Vdc83%10.0W
H10-50/A
H10-50/A/Y
50.0 Vdc200 mA 20.0-60.0 Vdc83%10.0W
H10-50/B
H10-50/B/Y
65.0 Vdc153.8 mA 5.0-15.0 Vdc83%10.0W
H10-65
H10-65/Y
70.0 Vdc142.9 mA 5.0-15.0 Vdc83%10.0W
H10-70
H10-70/Y
75.0 Vdc133 mA 5.0-15.0 Vdc83%10.0W
H10-75
H10-75/Y
75.0 Vdc
75.0 Vdc		66 mA
66 mA		 5.0-15.0 Vdc78%10.0W
H10-75/75
H10-75/75/Y
75.0 Vdc
75.0 Vdc		66 mA
66 mA		 9.0-36.0 Vdc83%10.0W
H10-75/75/A
H10-75/75/A/Y
75.0 Vdc
75.0 Vdc		66 mA
66 mA		 20.0-60.0 Vdc83%10.0W
H10-75/75/B
H10-75/75/B/Y
75.0 Vdc133 mA 9.0-36.0 Vdc83%10.0W
H10-75/A
H10-75/A/Y
75.0 Vdc133 mA 20.0-60.0 Vdc83%10.0W
H10-75/B
H10-75/B/Y
80.0 Vdc
80.0 Vdc		62.5 mA
62.5 mA		 9.0-36.0 Vdc83%10.0W
H10-80/80/A
H10-80/80/A/Y
85.0 Vdc
85.0 Vdc		58.8 mA
58.8 mA		 9.0-36.0 Vdc83%10.0W
H10-85/85/A
H10-85/85/A/Y
100.0 Vdc100 mA 5.0-15.0 Vdc83%10.0W
H10-100
H10-100/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 5.0-15.0 Vdc83%10.0W
H10-100/100
H10-100/100/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 9.0-36.0 Vdc89%10.0W
H10-100/100/A
H10-100/100/A/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 20.0-60.0 Vdc83%10.0W
H10-100/100/B
H10-100/100/B/Y
100.0 Vdc100 mA 9.0-36.0 Vdc83%10.0W
H10-100/A
H10-100/A/Y
100.0 Vdc100 mA 20.0-60.0 Vdc83%10.0W
H10-100/B
H10-100/B/Y
150.0 Vdc66 mA 9.0-36.0 Vdc83%10.0W
H10-150
H10-150/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 5.0-15.0 Vdc83%10.0W
H10-150/150
H10-150/150/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 9.0-36.0 Vdc83%10.0W
H10-150/150/A
H10-150/150/A/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 20.0-60.0 Vdc83%10.0W
H10-150/150/B
H10-150/150/B/Y
150.0 Vdc66 mA 9.0-36.0 Vdc90%10.0W
H10-150/A
H10-150/A/Y
150.0 Vdc66 mA 20.0-60.0 Vdc83%10.0W
H10-150/B
H10-150/B/Y
165.0 Vdc
45.0 Vdc		30.3 mA
111.1 mA		 9.0-36.0 Vdc88%10.0W
H10-165/45/A
H10-165/45/A/Y
200.0 Vdc50 mA 5.0-15.0 Vdc83%10.0W
H10-200
H10-200/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 5.0-15.0 Vdc83%10.0W
H10-200/200
H10-200/200/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 9.0-36.0 Vdc83%10.0W
H10-200/200/A
H10-200/200/A/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 20.0-60.0 Vdc83%10.0W
H10-200/200/B
H10-200/200/B/Y
200.0 Vdc50 mA 9.0-36.0 Vdc83%10.0W
H10-200/A
H10-200/A/Y
200.0 Vdc50 mA 20.0-60.0 Vdc83%10.0W
H10-200/B
H10-200/B/Y
300.0 Vdc33 mA 5.0-15.0 Vdc83%10.0W
H10-300
H10-300/Y
300.0 Vdc
300.0 Vdc		16 mA
16 mA		 5.0-15.0 Vdc83%10.0W
H10-300/300
H10-300/300/Y
300.0 Vdc
300.0 Vdc		16 mA
16 mA		 9.0-36.0 Vdc83%10.0W
H10-300/300/A
H10-300/300/A/Y
300.0 Vdc
300.0 Vdc		16 mA
16 mA		 20.0-60.0 Vdc83%10.0W
H10-300/300/B
H10-300/300/B/Y
300.0 Vdc33 mA 9.0-36.0 Vdc83%10.0W
H10-300/A
H10-300/A/Y
300.0 Vdc33 mA 20.0-60.0 Vdc83%10.0W
H10-300/B
H10-300/B/Y
350.0 Vdc28.6 mA 5.0-15.0 Vdc83%10.0W
H10-350
H10-350/Y
400.0 Vdc25 mA 5.0-15.0 Vdc83%10.0W
H10-400
H10-400/Y
400.0 Vdc
400.0 Vdc		12 mA
12 mA		 5.0-15.0 Vdc83%10.0W
H10-400/400
H10-400/400/Y
400.0 Vdc
400.0 Vdc		12 mA
12 mA		 9.0-36.0 Vdc83%10.0W
H10-400/400/A
H10-400/400/A/Y
400.0 Vdc
400.0 Vdc		12 mA
12 mA		 20.0-60.0 Vdc83%10.0W
H10-400/400/B
H10-400/400/B/Y
400.0 Vdc25 mA 9.0-36.0 Vdc83%10.0W
H10-400/A
H10-400/A/Y
400.0 Vdc25 mA 20.0-60.0 Vdc83%10.0W
H10-400/B
H10-400/B/Y
500.0 Vdc20 mA 5.0-15.0 Vdc83%10.0W
H10-500
H10-500/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 5.0-15.0 Vdc83%10.0W
H10-500/500
H10-500/500/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 9.0-36.0 Vdc85%10.0W
H10-500/500/A
H10-500/500/A/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 20.0-60.0 Vdc83%10.0W
H10-500/500/B
H10-500/500/B/Y
500.0 Vdc20 mA 9.0-36.0 Vdc83%10.0W
H10-500/A
H10-500/A/Y
500.0 Vdc20 mA 20.0-60.0 Vdc83%10.0W
H10-500/B
H10-500/B/Y
