H30 Series 30.0 Watt

High Voltage DC/DC Converters

General Specs
Electrical Specs
Physical Specs
Model Listing

	Features Customer Selects Output Voltage Outputs to 1000Vdc Efficiency to 87% Independently Isolated Outputs Ultra Wide Input Range 1 kVdc Output Isolation Continuous Short Circuit Protection Remote On/Off Control
The H30 Series of DC/DC converters accepts ultra wide input ranges of 9-36Vdc, 20-60Vdc. Outputs are independently isolated. In the case of duals, 80% power may be taken from either output. All models will tolerate a short circuit indefinitely. Also included is a PI Network input filter and remote on/off.

Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -45 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y

Input Ranges: 9-36Vdc, 20-60Vdc
Voltage Accuracy: 3% / 3%
Line Regulation: 4%
Load Regulation: 4% (20% - FL)
Output Ripple: 0.4%

Input Filter: PI Network
Efficiency: 87%
Short Circuit Protection: Continuous
Switching Frequency: 100 kHz
Isolation: 1 kVdc

Dimensions: 2.6 x 3 x 0.83 [INCHES]
Weight: 8.4 Oz

Case Material: Nickel Plated Metal

Models Currently In Production

Output Voltage

Current

Input Voltage

Efficiency

Power

Model Number

50.0 Vdc

600 mA

9.0-36.0 Vdc

86%

30.0W

H30-50
H30-50/Y

50.0 Vdc
50.0 Vdc

300 mA
300 mA

9.0-36.0 Vdc

86%

30.0W

H30-50/50
H30-50/50/Y

50.0 Vdc
50.0 Vdc

300 mA
300 mA

20.0-60.0 Vdc

86%

30.0W

H30-50/50/B
H30-50/50/B/Y

50.0 Vdc

600 mA

20.0-60.0 Vdc

86%

30.0W

H30-50/B
H30-50/B/Y

55.0 Vdc

545.5 mA

9.0-36.0 Vdc

86%

30.0W

H30-55
H30-55/Y

75.0 Vdc

400 mA

9.0-36.0 Vdc

86%

30.0W

H30-75
H30-75/Y

75.0 Vdc
75.0 Vdc

200 mA
200 mA

9.0-36.0 Vdc

86%

30.0W

H30-75/75
H30-75/75/Y

75.0 Vdc
75.0 Vdc

200 mA
200 mA

20.0-60.0 Vdc

86%

30.0W

H30-75/75/B
H30-75/75/B/Y

75.0 Vdc

400 mA

20.0-60.0 Vdc

86%

30.0W

H30-75/B
H30-75/B/Y

100.0 Vdc

300 mA

9.0-36.0 Vdc

86%

30.0W

H30-100
H30-100/Y

100.0 Vdc
100.0 Vdc

150 mA
150 mA

9.0-36.0 Vdc

86%

30.0W

H30-100/100
H30-100/100/Y

100.0 Vdc
100.0 Vdc

150 mA
150 mA

20.0-60.0 Vdc

86%

30.0W

H30-100/100/B
H30-100/100/B/Y

100.0 Vdc

300 mA

20.0-60.0 Vdc

86%

30.0W

H30-100/B
H30-100/B/Y

150.0 Vdc

200 mA

9.0-36.0 Vdc

90%

30.0W

H30-150
H30-150/Y

150.0 Vdc
150.0 Vdc

100 mA
100 mA

9.0-36.0 Vdc

87%

30.0W

H30-150/150
H30-150/150/Y

150.0 Vdc
150.0 Vdc

100 mA
100 mA

20.0-60.0 Vdc

86%

30.0W

H30-150/150/B
H30-150/150/B/Y

150.0 Vdc

200 mA

20.0-60.0 Vdc

86%

30.0W

H30-150/B
H30-150/B/Y

165.0 Vdc
45.0 Vdc

90.9 mA
333.3 mA

9.0-36.0 Vdc

90%

30.0W

H30-165/45
H30-165/45/Y

200.0 Vdc

150 mA

9.0-36.0 Vdc

86%

30.0W

H30-200
H30-200/Y

200.0 Vdc
200.0 Vdc

75 mA
75 mA

9.0-36.0 Vdc

86%

30.0W

H30-200/200
H30-200/200/Y

200.0 Vdc
200.0 Vdc

75 mA
75 mA

20.0-60.0 Vdc

86%

30.0W

H30-200/200/B
H30-200/200/B/Y

200.0 Vdc

150 mA

20.0-60.0 Vdc

86%

30.0W

H30-200/B
H30-200/B/Y

240.0 Vdc
240.0 Vdc

62.5 mA
62.5 mA

9.0-36.0 Vdc

86%

30.0W

H30-240/240
H30-240/240/Y

250.0 Vdc

120 mA

9.0-36.0 Vdc

86%

30.0W

H30-250
H30-250/Y

250.0 Vdc
250.0 Vdc

60 mA
60 mA

9.0-36.0 Vdc

86%

30.0W

H30-250/250
H30-250/250/Y

300.0 Vdc

100 mA

9.0-36.0 Vdc

86%

30.0W

H30-300
H30-300/Y

300.0 Vdc
300.0 Vdc

50 mA
50 mA

9.0-36.0 Vdc

86%

30.0W

H30-300/300
H30-300/300/Y

300.0 Vdc
300.0 Vdc

50 mA
50 mA

20.0-60.0 Vdc

86%

30.0W

H30-300/300/B
H30-300/300/B/Y

300.0 Vdc

100 mA

20.0-60.0 Vdc

86%

30.0W

H30-300/B
H30-300/B/Y

400.0 Vdc

75 mA

9.0-36.0 Vdc

86%

30.0W

H30-400
H30-400/Y

400.0 Vdc
400.0 Vdc

37 mA
37 mA

9.0-36.0 Vdc

90%

30.0W

H30-400/400
H30-400/400/Y

400.0 Vdc
400.0 Vdc

37 mA
37 mA

20.0-60.0 Vdc

86%

30.0W

H30-400/400/B
H30-400/400/B/Y

400.0 Vdc

75 mA

20.0-60.0 Vdc

86%

30.0W

H30-400/B
H30-400/B/Y

440.0 Vdc
440.0 Vdc

34.1 mA
34.1 mA

9.0-36.0 Vdc

86%

30.0W

H30-440/440
H30-440/440/Y

450.0 Vdc
450.0 Vdc

33.3 mA
33.3 mA

9.0-36.0 Vdc

86%

30.0W

H30-450/450
H30-450/450/Y

500.0 Vdc

60 mA

9.0-36.0 Vdc

86%

30.0W

H30-500
H30-500/Y

500.0 Vdc
500.0 Vdc

30 mA
30 mA

9.0-36.0 Vdc

88%

30.0W

H30-500/500
H30-500/500/Y

500.0 Vdc
500.0 Vdc

30 mA
30 mA

20.0-60.0 Vdc

86%

30.0W

H30-500/500/B
H30-500/500/B/Y

500.0 Vdc

60 mA

20.0-60.0 Vdc

86%

30.0W

H30-500/B
H30-500/B/Y

Full Product Specification
PDF format

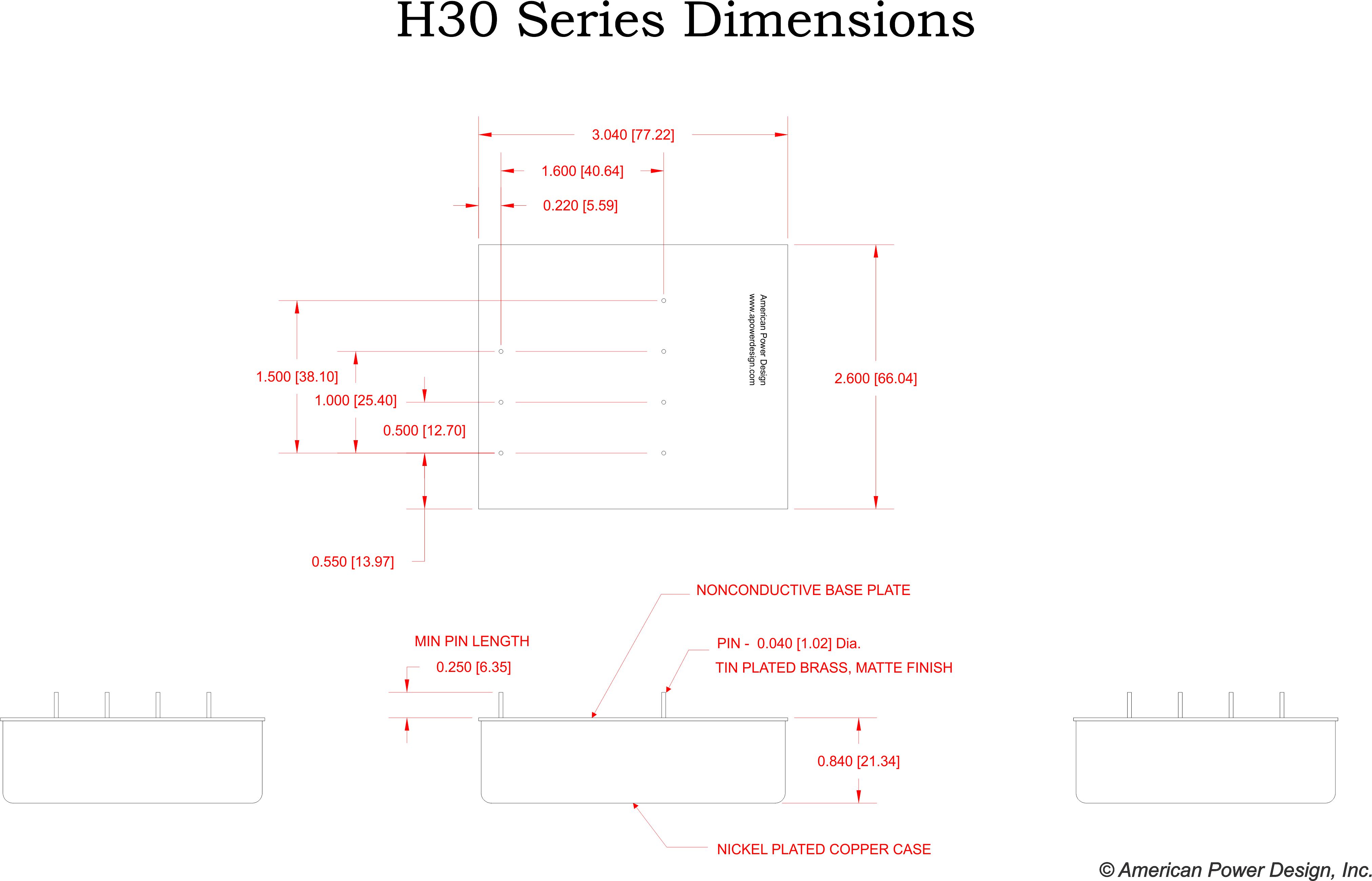

Mechanical Drawings
PDF format
Download in DXF format
