X10 Series 10.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • Excellent Line & Load Regulation
  • Independently Isolated Outputs
  • Ultra Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection
  • Remote On/Off Control

The X10 Series of DC/DC converters accepts wide input ranges of 9-36Vdc, 20-60Vdc, 36-72Vdc. Outputs are isolated to 1 kVdc. In the case of duals, the outputs are completely independent including overload protection. All models will tolerate a short circuit indefinitely. Also included is a PI Network input filter and remote on/off.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -45 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 9-36Vdc, 20-60Vdc, 36-72Vdc
Voltage Accuracy: 1% / 2%
Line Regulation: 0.1% / 2%
Load Regulation: 0.2% / 2%
Output Ripple: 0.3%
 Input Filter: PI Network
Efficiency: 85%
Short Circuit Protection: Continuous
Switching Frequency: 120 kHz
Isolation: 1 kVdc
Dimensions: 2 x 2 x 0.5 [INCHES]
Weight: 2.8 Oz
 Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
24.0 Vdc416 mA 9.0-36.0 Vdc85%10.0W
X10-24
X10-24/Y
24.0 Vdc
24.0 Vdc		208 mA
208 mA		 9.0-36.0 Vdc85%10.0W
X10-24/24
X10-24/24/Y
24.0 Vdc
24.0 Vdc		208 mA
208 mA		 20.0-60.0 Vdc85%10.0W
X10-24/24/B
X10-24/24/B/Y
24.0 Vdc
24.0 Vdc		208 mA
208 mA		 36.0-72.0 Vdc85%10.0W
X10-24/24/C
X10-24/24/C/Y
24.0 Vdc416 mA 20.0-60.0 Vdc85%10.0W
X10-24/B
X10-24/B/Y
24.0 Vdc416 mA 36.0-72.0 Vdc85%10.0W
X10-24/C
X10-24/C/Y
48.0 Vdc208 mA 9.0-36.0 Vdc85%10.0W
X10-48
X10-48/Y
48.0 Vdc
48.0 Vdc		104 mA
104 mA		 20.0-60.0 Vdc85%10.0W
X10-48/48/B
X10-48/48/B/Y
48.0 Vdc
48.0 Vdc		104 mA
104 mA		 36.0-72.0 Vdc85%10.0W
X10-48/48/C
X10-48/48/C/Y
48.0 Vdc208 mA 20.0-60.0 Vdc85%10.0W
X10-48/B
X10-48/B/Y
48.0 Vdc208 mA 36.0-72.0 Vdc85%10.0W
X10-48/C
X10-48/C/Y
50.0 Vdc200 mA 9.0-36.0 Vdc85%10.0W
X10-50
X10-50/Y
50.0 Vdc
200.0 Vdc		100 mA
25 mA		 9.0-36.0 Vdc85%10.0W
X10-50/200
X10-50/200/Y
50.0 Vdc
300.0 Vdc		100 mA
16.7 mA		 9.0-36.0 Vdc85%10.0W
X10-50/300
X10-50/300/Y
50.0 Vdc
50.0 Vdc		100 mA
100 mA		 9.0-36.0 Vdc85%10.0W
X10-50/50
X10-50/50/Y
50.0 Vdc
50.0 Vdc		100 mA
100 mA		 20.0-60.0 Vdc85%10.0W
X10-50/50/B
X10-50/50/B/Y
50.0 Vdc
50.0 Vdc		100 mA
100 mA		 36.0-72.0 Vdc85%10.0W
X10-50/50/C
X10-50/50/C/Y
50.0 Vdc200 mA 20.0-60.0 Vdc85%10.0W
X10-50/B
X10-50/B/Y
50.0 Vdc200 mA 36.0-72.0 Vdc85%10.0W
X10-50/C
X10-50/C/Y
55.0 Vdc181.8 mA 9.0-36.0 Vdc85%10.0W
X10-55
X10-55/Y
75.0 Vdc133.3 mA 9.0-36.0 Vdc85%10.0W
X10-75
X10-75/Y
75.0 Vdc
75.0 Vdc		66 mA
66 mA		 9.0-36.0 Vdc85%10.0W
X10-75/75
X10-75/75/Y
75.0 Vdc
75.0 Vdc		66 mA
66 mA		 20.0-60.0 Vdc85%10.0W
X10-75/75/B
X10-75/75/B/Y
75.0 Vdc
75.0 Vdc		66 mA
66 mA		 36.0-72.0 Vdc85%10.0W
X10-75/75/C
X10-75/75/C/Y
75.0 Vdc133 mA 20.0-60.0 Vdc85%10.0W
X10-75/B
X10-75/B/Y
75.0 Vdc133 mA 36.0-72.0 Vdc85%10.0W
X10-75/C
X10-75/C/Y
85.0 Vdc
85.0 Vdc		58.8 mA
58.8 mA		 9.0-36.0 Vdc85%10.0W
X10-85/85
X10-85/85/Y
100.0 Vdc100 mA 9.0-36.0 Vdc85%10.0W
X10-100
X10-100/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 9.0-36.0 Vdc85%10.0W
X10-100/100
X10-100/100/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 20.0-60.0 Vdc85%10.0W
X10-100/100/B
X10-100/100/B/Y
100.0 Vdc
100.0 Vdc		50 mA
50 mA		 36.0-72.0 Vdc85%10.0W
X10-100/100/C
X10-100/100/C/Y
100.0 Vdc100 mA 20.0-60.0 Vdc85%10.0W
X10-100/B
X10-100/B/Y
100.0 Vdc100 mA 36.0-72.0 Vdc85%10.0W
X10-100/C
X10-100/C/Y
115.0 Vdc87 mA 36.0-72.0 Vdc85%10.0W
X10-115/C
X10-115/C/Y
120.0 Vdc83.3 mA 36.0-72.0 Vdc85%10.0W
X10-120/C
X10-120/C/Y
150.0 Vdc66 mA 9.0-36.0 Vdc85%10.0W
X10-150
X10-150/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 9.0-36.0 Vdc85%10.0W
X10-150/150
X10-150/150/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 20.0-60.0 Vdc85%10.0W
X10-150/150/B
X10-150/150/B/Y
150.0 Vdc
150.0 Vdc		33 mA
33 mA		 36.0-72.0 Vdc85%10.0W
X10-150/150/C
X10-150/150/C/Y
150.0 Vdc66 mA 20.0-60.0 Vdc85%10.0W
X10-150/B
X10-150/B/Y
150.0 Vdc66 mA 36.0-72.0 Vdc85%10.0W
X10-150/C
X10-150/C/Y
200.0 Vdc50 mA 9.0-36.0 Vdc86%10.0W
X10-200
X10-200/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 9.0-36.0 Vdc87%10.0W
X10-200/200
X10-200/200/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 20.0-60.0 Vdc85%10.0W
X10-200/200/B
X10-200/200/B/Y
200.0 Vdc
200.0 Vdc		25 mA
25 mA		 36.0-72.0 Vdc85%10.0W
X10-200/200/C
X10-200/200/C/Y
200.0 Vdc50 mA 20.0-60.0 Vdc85%10.0W
X10-200/B
X10-200/B/Y
200.0 Vdc50 mA 36.0-72.0 Vdc85%10.0W
X10-200/C
X10-200/C/Y
220.0 Vdc
220.0 Vdc		22.7 mA
22.7 mA		 20.0-60.0 Vdc85%10.0W
X10-220/220/B
X10-220/220/B/Y
220.0 Vdc45.5 mA 20.0-60.0 Vdc85%10.0W
X10-220/B
X10-220/B/Y
300.0 Vdc33 mA 9.0-36.0 Vdc85%10.0W
X10-300
X10-300/Y
300.0 Vdc
300.0 Vdc		16 mA
16 mA		 9.0-36.0 Vdc85%10.0W
X10-300/300
X10-300/300/Y
300.0 Vdc
300.0 Vdc		16 mA
16 mA		 20.0-60.0 Vdc85%10.0W
X10-300/300/B
X10-300/300/B/Y
300.0 Vdc
300.0 Vdc		16 mA
16 mA		 36.0-72.0 Vdc85%10.0W
X10-300/300/C
X10-300/300/C/Y
300.0 Vdc33 mA 20.0-60.0 Vdc85%10.0W
X10-300/B
X10-300/B/Y
300.0 Vdc33 mA 36.0-72.0 Vdc85%10.0W
X10-300/C
X10-300/C/Y
350.0 Vdc
350.0 Vdc		14.3 mA
14.3 mA		 9.0-36.0 Vdc85%10.0W
X10-350/350
X10-350/350/Y
350.0 Vdc28.6 mA 20.0-60.0 Vdc85%10.0W
X10-350/B
X10-350/B/Y
400.0 Vdc25 mA 9.0-36.0 Vdc85%10.0W
X10-400
X10-400/Y
400.0 Vdc
400.0 Vdc		12 mA
12 mA		 9.0-36.0 Vdc85%10.0W
X10-400/400
X10-400/400/Y
400.0 Vdc
400.0 Vdc		12 mA
12 mA		 20.0-60.0 Vdc85%10.0W
X10-400/400/B
X10-400/400/B/Y
400.0 Vdc
400.0 Vdc		12 mA
12 mA		 36.0-72.0 Vdc85%10.0W
X10-400/400/C
X10-400/400/C/Y
400.0 Vdc25 mA 20.0-60.0 Vdc85%10.0W
X10-400/B
X10-400/B/Y
400.0 Vdc25 mA 36.0-72.0 Vdc85%10.0W
X10-400/C
X10-400/C/Y
425.0 Vdc
425.0 Vdc		11.8 mA
11.8 mA		 9.0-36.0 Vdc85%10.0W
X10-425/425
X10-425/425/Y
450.0 Vdc
450.0 Vdc		11.1 mA
11.1 mA		 9.0-36.0 Vdc85%10.0W
X10-450/450
X10-450/450/Y
450.0 Vdc22.2 mA 20.0-60.0 Vdc85%10.0W
X10-450/B
X10-450/B/Y
500.0 Vdc20 mA 9.0-36.0 Vdc85%10.0W
X10-500
X10-500/Y
500.0 Vdc
200.0 Vdc		10 mA
25 mA		 9.0-36.0 Vdc81%10.0W
X10-500/200
X10-500/200/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 9.0-36.0 Vdc81%10.0W
X10-500/500
X10-500/500/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 20.0-60.0 Vdc85%10.0W
X10-500/500/B
X10-500/500/B/Y
500.0 Vdc
500.0 Vdc		10 mA
10 mA		 36.0-72.0 Vdc85%10.0W
X10-500/500/C
X10-500/500/C/Y
500.0 Vdc20 mA 20.0-60.0 Vdc85%10.0W
X10-500/B
X10-500/B/Y
500.0 Vdc20 mA 36.0-72.0 Vdc85%10.0W
X10-500/C
X10-500/C/Y



Full Product Specification
PDF format

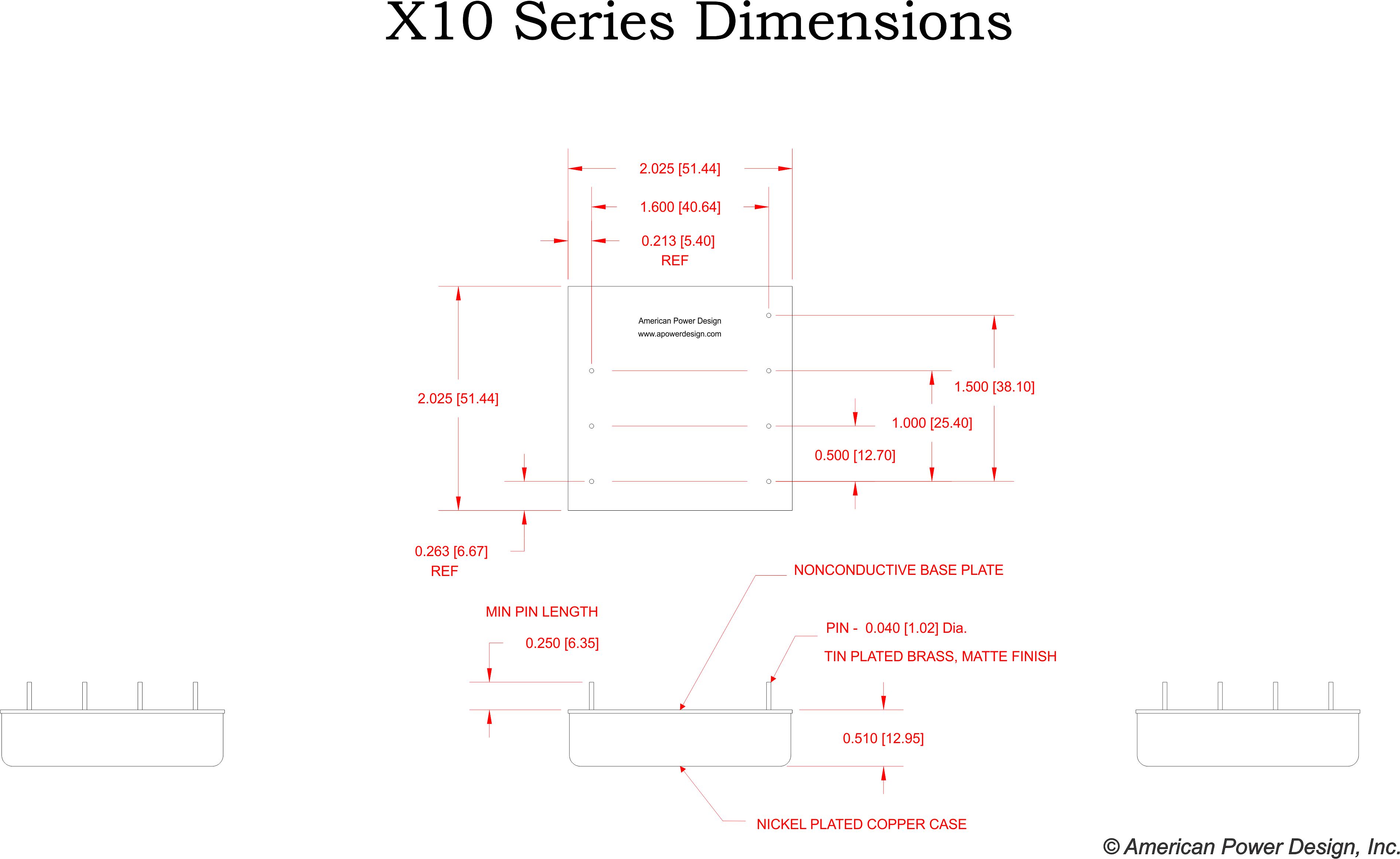

Mechanical Drawings
PDF format
Download in DXF format
