H150 Series 150.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • Efficiency to 91%
  • Independently Isolated Outputs
  • Ultra Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection
  • Remote On/Off Control

The H150 Series of DC/DC converters accepts ultra wide input ranges of 18-36Vdc, 20-60Vdc. Outputs are independently isolated. In the case of duals, 80% power may be taken from either output. All models will tolerate a short circuit indefinitely. Also included is a PI Network input filter and remote on/off.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -45 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 18-36Vdc, 20-60Vdc
Voltage Accuracy: 4% / 4%
Line Regulation: 5%
Load Regulation: 5% (20% - FL)
Output Ripple: 0.5%
 Input Filter: PI Network
Efficiency: 91%
Short Circuit Protection: Continuous
Switching Frequency: 100 kHz
Isolation: 1 kVdc
Dimensions: 3.5 x 5.5 x 0.92 [INCHES]
Weight: 18.5 Oz
 Case Material: Black Coated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
50.0 Vdc3 A 18.0-36.0 Vdc90%150.0W
H150-50
H150-50/Y
50.0 Vdc
50.0 Vdc		1.5 A
1.5 A		 18.0-36.0 Vdc90%150.0W
H150-50/50
H150-50/50/Y
50.0 Vdc
50.0 Vdc		1.5 A
1.5 A		 20.0-60.0 Vdc90%150.0W
H150-50/50/B
H150-50/50/B/Y
50.0 Vdc3 A 20.0-60.0 Vdc90%150.0W
H150-50/B
H150-50/B/Y
74.0 Vdc2 A 18.0-36.0 Vdc90%148.0W
H150-74
H150-74/Y
75.0 Vdc2 A 18.0-36.0 Vdc90%150.0W
H150-75
H150-75/Y
75.0 Vdc
75.0 Vdc		1 A
1 A		 18.0-36.0 Vdc90%150.0W
H150-75/75
H150-75/75/Y
75.0 Vdc
75.0 Vdc		1 A
1 A		 20.0-60.0 Vdc90%150.0W
H150-75/75/B
H150-75/75/B/Y
75.0 Vdc2 A 20.0-60.0 Vdc90%150.0W
H150-75/B
H150-75/B/Y
100.0 Vdc1.5 A 18.0-36.0 Vdc90%150.0W
H150-100
H150-100/Y
100.0 Vdc
100.0 Vdc		750 mA
750 mA		 18.0-36.0 Vdc90%150.0W
H150-100/100
H150-100/100/Y
100.0 Vdc
100.0 Vdc		750 mA
750 mA		 20.0-60.0 Vdc90%150.0W
H150-100/100/B
H150-100/100/B/Y
100.0 Vdc
300.0 Vdc		750 mA
250 mA		 18.0-36.0 Vdc90%150.0W
H150-100/300
H150-100/300/Y
100.0 Vdc1.5 A 20.0-60.0 Vdc90%150.0W
H150-100/B
H150-100/B/Y
125.0 Vdc1.2 A 20.0-60.0 Vdc90%150.0W
H150-125/B
H150-125/B/Y
150.0 Vdc1 A 18.0-36.0 Vdc90%150.0W
H150-150
H150-150/Y
150.0 Vdc
150.0 Vdc		500 mA
500 mA		 18.0-36.0 Vdc90%150.0W
H150-150/150
H150-150/150/Y
150.0 Vdc
150.0 Vdc		500 mA
500 mA		 20.0-60.0 Vdc90%150.0W
H150-150/150/B
H150-150/150/B/Y
150.0 Vdc
50.0 Vdc		500 mA
1.5 A		 18.0-36.0 Vdc90%150.0W
H150-150/50
H150-150/50/Y
150.0 Vdc
150.0 Vdc		1 A 20.0-60.0 Vdc90%150.0W
H150-150/B
H150-150/B/Y
165.0 Vdc
45.0 Vdc		454.5 mA
1.66 A		 20.0-60.0 Vdc86%150.0W
H150-165/45/B
H150-165/45/B/Y
165.0 Vdc909 mA 20.0-60.0 Vdc90%150.0W
H150-165/B
H150-165/B/Y
200.0 Vdc750 mA 18.0-36.0 Vdc90%150.0W
H150-200
H150-200/Y
200.0 Vdc
200.0 Vdc		375 mA
375 mA		 18.0-36.0 Vdc90%150.0W
H150-200/200
H150-200/200/Y
200.0 Vdc
200.0 Vdc		375 mA
375 mA		 20.0-60.0 Vdc90%150.0W
H150-200/200/B
H150-200/200/B/Y
200.0 Vdc750 mA 20.0-60.0 Vdc90%150.0W
H150-200/B
H150-200/B/Y
250.0 Vdc600 mA 18.0-36.0 Vdc90%150.0W
H150-250
H150-250/Y
250.0 Vdc
250.0 Vdc		300 mA
300 mA		 18.0-36.0 Vdc91%150.0W
H150-250/250
H150-250/250/Y
300.0 Vdc500 mA 18.0-36.0 Vdc91%150.0W
H150-300
H150-300/Y
300.0 Vdc
100.0 Vdc		250 mA
750 mA		 18.0-36.0 Vdc90%150.0W
H150-300/100
H150-300/100/Y
300.0 Vdc
300.0 Vdc		250 mA
250 mA		 18.0-36.0 Vdc90%150.0W
H150-300/300
H150-300/300/Y
300.0 Vdc
300.0 Vdc		250 mA
250 mA		 20.0-60.0 Vdc90%150.0W
H150-300/300/B
H150-300/300/B/Y
300.0 Vdc500 mA 20.0-60.0 Vdc89%150.0W
H150-300/B
H150-300/B/Y
350.0 Vdc428.5 mA 18.0-36.0 Vdc91%150.0W
H150-350
H150-350/Y
375.0 Vdc400 mA 18.0-36.0 Vdc90%150.0W
H150-375
H150-375/Y
375.0 Vdc
375.0 Vdc		200 mA
200 mA		 20.0-60.0 Vdc91%150.0W
H150-375/375/B
H150-375/375/B/Y
400.0 Vdc375 mA 18.0-36.0 Vdc91900%150.0W
H150-400
H150-400/Y
400.0 Vdc
400.0 Vdc		187 mA
187 mA		 18.0-36.0 Vdc90%150.0W
H150-400/400
H150-400/400/Y
400.0 Vdc
400.0 Vdc		187 mA
187 mA		 20.0-60.0 Vdc90%150.0W
H150-400/400/B
H150-400/400/B/Y
400.0 Vdc375 mA 20.0-60.0 Vdc91%150.0W
H150-400/B
H150-400/B/Y
425.0 Vdc352.9 mA 20.0-60.0 Vdc91%150.0W
H150-425/B
H150-425/B/Y
450.0 Vdc333 mA 18.0-36.0 Vdc90%150.0W
H150-450
H150-450/Y
450.0 Vdc
500.0 Vdc		166 mA
150 mA		 20.0-60.0 Vdc90%150.0W
H150-450/500/B
H150-450/500/B/Y
500.0 Vdc300 mA 18.0-36.0 Vdc92%150.0W
H150-500
H150-500/Y
500.0 Vdc
500.0 Vdc		150 mA
150 mA		 18.0-36.0 Vdc90%150.0W
H150-500/500
H150-500/500/Y
500.0 Vdc
500.0 Vdc		150 mA
150 mA		 20.0-60.0 Vdc90%150.0W
H150-500/500/B
H150-500/500/B/Y
500.0 Vdc300 mA 20.0-60.0 Vdc90%150.0W
H150-500/B
H150-500/B/Y



Full Product Specification
PDF format

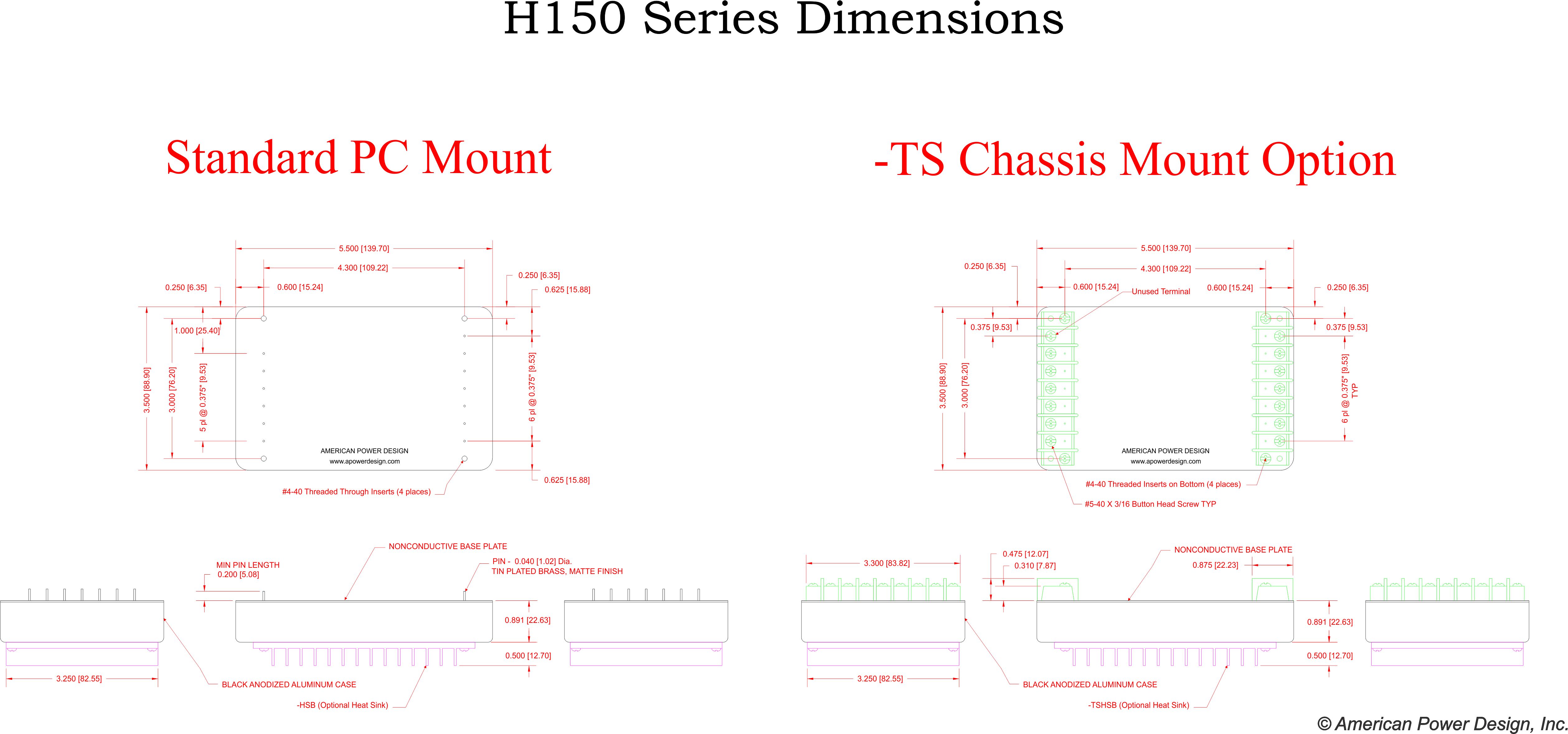

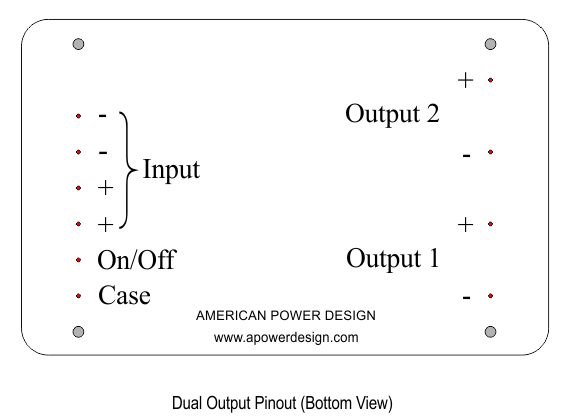

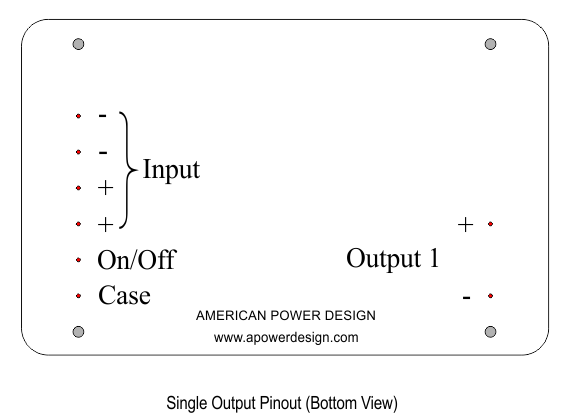

Mechanical Drawings
