J10 Series 10.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • + or - Outputs to 6000Vdc
  • Dual Outputs
  • High Power Density

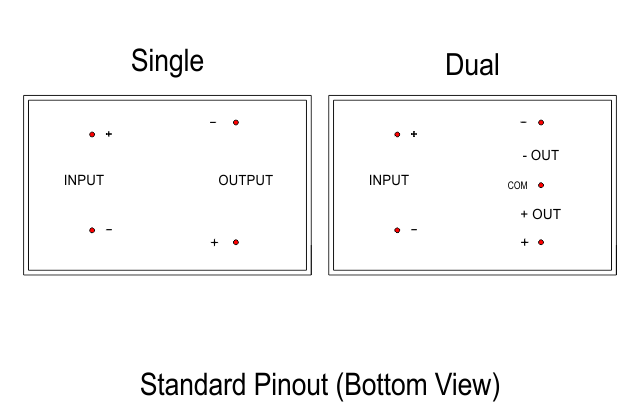

  • Industry Standard Pinouts
  • LC Network (Input Filter)
  • 6500Vdc Output Isolation
  • Continuous Short Circuit Protection

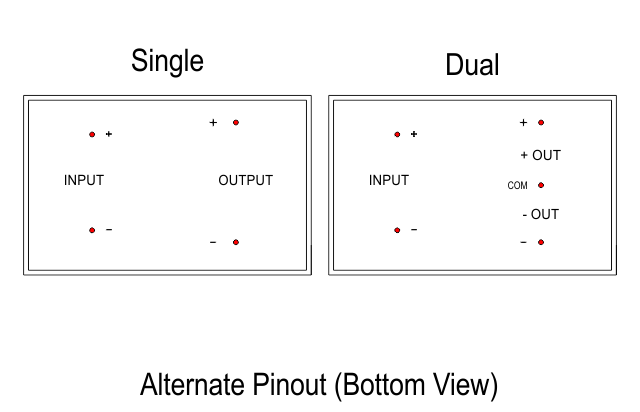

The J10 Series of DC/DC converters offer a 6500Vdc isolated high voltage output directly proportional to input voltage. They are available in alternate industry standard pinouts. All models will tolerate a short circuit indefinitely. They also include a LC Network input filter to minimize reflected ripple current.
Temp. (Stability): 0.05%/Deg C
Temp. (Operating Case): -20 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Shield Available
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 0V-12Vdc , 0V-15Vdc
Voltage Accuracy: 5% / 5%
Line Regulation: Proportional
Load Regulation: 10%
Output Ripple: <1% P-P
 Input Filter: LC Network
Efficiency: 75%
Short Circuit Protection: Continuous
Switching Frequency: 60kHz
Isolation: 6500Vdc

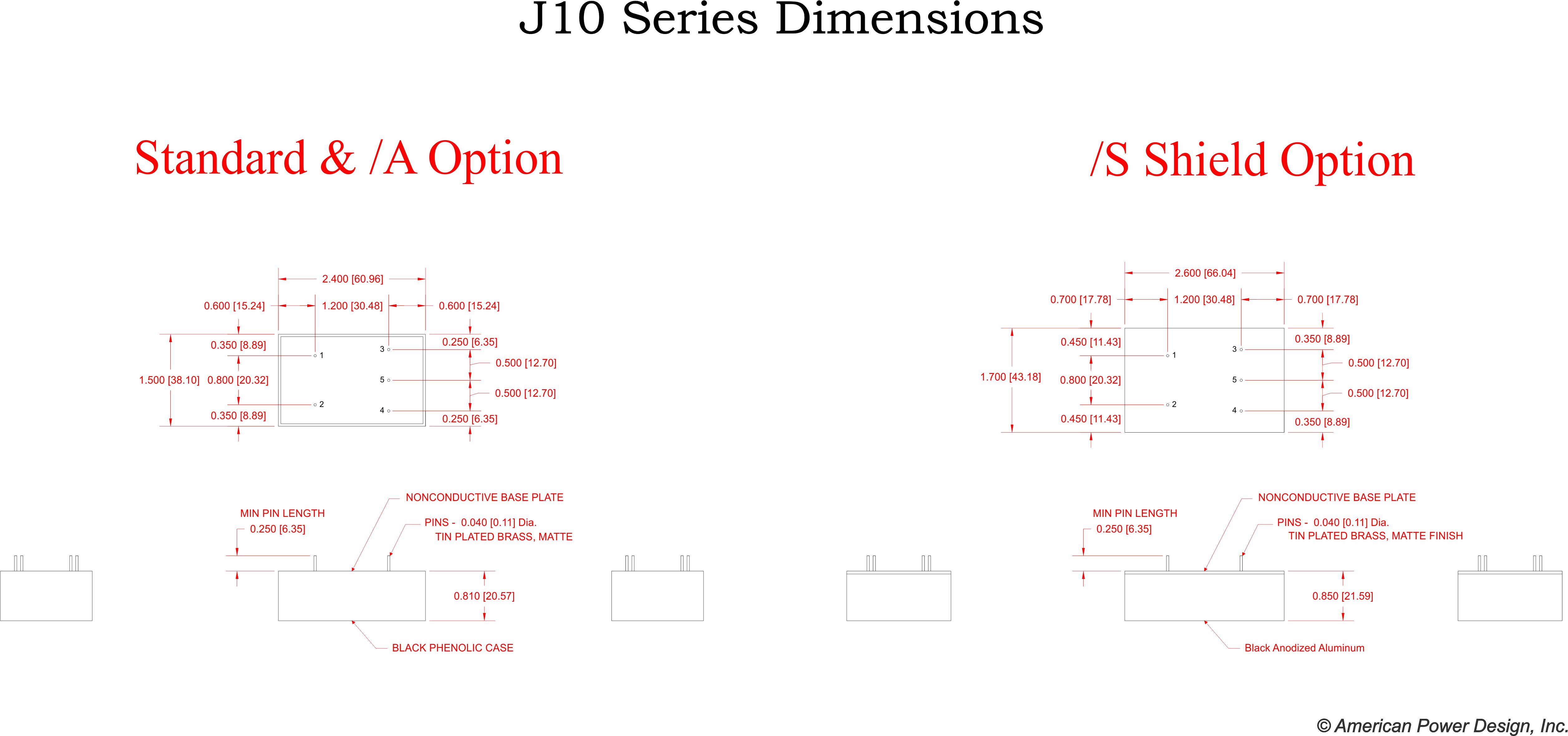

Dimensions: 1.5 x 2.4 x 0.81 [INCHES]
Weight: 3.4Oz
 Case Material: Black Plastic
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
100.0 Vdc50 mA
50 mA		 0.0-12.0 Vdc75%10.0W
J10-D10
J10-D10/Y
100.0 Vdc50 mA
50 mA		 0.0-12.0 Vdc75%10.0W
J10-D10/A
J10-D10/A/Y
150.0 Vdc33.3 mA
33.3 mA		 0.0-12.0 Vdc75%10.0W
J10-D15
J10-D15/Y
150.0 Vdc33.3 mA
33.3 mA		 0.0-12.0 Vdc75%10.0W
J10-D15/A
J10-D15/A/Y
200.0 Vdc50 mA 0.0-12.0 Vdc75%10.0W
J10-20
J10-20/Y
200.0 Vdc50 mA 0.0-12.0 Vdc75%10.0W
J10-20/A
J10-20/A/Y
200.0 Vdc25 mA
25 mA		 0.0-12.0 Vdc75%10.0W
J10-D20
J10-D20/Y
200.0 Vdc25 mA
25 mA		 0.0-12.0 Vdc75%10.0W
J10-D20/A
J10-D20/A/Y
250.0 Vdc20 mA
20 mA		 0.0-12.0 Vdc75%10.0W
J10-D25
J10-D25/Y
250.0 Vdc20 mA
20 mA		 0.0-12.0 Vdc75%10.0W
J10-D25/A
J10-D25/A/Y
300.0 Vdc33.3 mA 0.0-12.0 Vdc75%10.0W
J10-30
J10-30/Y
300.0 Vdc33.3 mA 0.0-12.0 Vdc75%10.0W
J10-30/A
J10-30/A/Y
300.0 Vdc16 mA
16 mA		 0.0-12.0 Vdc75%10.0W
J10-D30
J10-D30/Y
300.0 Vdc16 mA
16 mA		 0.0-12.0 Vdc75%10.0W
J10-D30/A
J10-D30/A/Y
400.0 Vdc25 mA 0.0-12.0 Vdc75%10.0W
J10-40
J10-40/Y
400.0 Vdc25 mA 0.0-12.0 Vdc75%10.0W
J10-40/A
J10-40/A/Y
400.0 Vdc12.5 mA
12.5 mA		 0.0-12.0 Vdc75%10.0W
J10-D40
J10-D40/Y
400.0 Vdc12.5 mA
12.5 mA		 0.0-12.0 Vdc75%10.0W
J10-D40/A
J10-D40/A/Y
500.0 Vdc20 mA 0.0-12.0 Vdc75%10.0W
J10-50
J10-50/Y
500.0 Vdc20 mA 0.0-12.0 Vdc75%10.0W
J10-50/A
J10-50/A/Y
500.0 Vdc10 mA
10 mA		 0.0-12.0 Vdc75%10.0W
J10-D50
J10-D50/Y
500.0 Vdc10 mA
10 mA		 0.0-12.0 Vdc75%10.0W
J10-D50/A
J10-D50/A/Y
600.0 Vdc16 mA 0.0-12.0 Vdc75%10.0W
J10-60
J10-60/Y
600.0 Vdc16 mA 0.0-12.0 Vdc75%10.0W
J10-60/A
J10-60/A/Y
600.0 Vdc8.3 mA
8.3 mA		 0.0-12.0 Vdc75%10.0W
J10-D60
J10-D60/Y
600.0 Vdc8.3 mA
8.3 mA		 0.0-12.0 Vdc75%10.0W
J10-D60/A
J10-D60/A/Y
750.0 Vdc6.6 mA
6.6 mA		 0.0-12.0 Vdc75%10.0W
J10-D75
J10-D75/Y
750.0 Vdc
750.0 Vdc		6.6 mA
6.6 mA		 0.0-12.0 Vdc75%10.0W
J10-D75/A
J10-D75/A/Y
800.0 Vdc12.5 mA 0.0-12.0 Vdc75%10.0W
J10-80
J10-80/Y
800.0 Vdc12.5 mA 0.0-12.0 Vdc78%10.0W
J10-80/A
J10-80/A/Y
1000.0 Vdc10 mA 0.0-12.0 Vdc75%10.0W
J10-100
J10-100/Y
1000.0 Vdc10 mA 0.0-12.0 Vdc75%10.0W
J10-100/A
J10-100/A/Y
1000.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc75%10.0W
J10-D100
J10-D100/Y
1000.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc75%10.0W
J10-D100/A
J10-D100/A/Y
1200.0 Vdc8.3 mA 0.0-12.0 Vdc75%10.0W
J10-120
J10-120/Y
1200.0 Vdc8.3 mA 0.0-12.0 Vdc75%10.0W
J10-120/A
J10-120/A/Y
1500.0 Vdc6.6 mA 0.0-12.0 Vdc75%10.0W
J10-150
J10-150/Y
1500.0 Vdc6.666 mA 0.0-12.0 Vdc78%10.0W
J10-150/A
J10-150/A/Y
1500.0 Vdc3.3 mA
3.3 mA		 0.0-15.0 Vdc75%10.0W
J10-D150
J10-D150/Y
1500.0 Vdc3.3 mA
3.3 mA		 0.0-15.0 Vdc75%10.0W
J10-D150/A
J10-D150/A/Y
2000.0 Vdc5 mA 0.0-12.0 Vdc75%10.0W
J10-200
J10-200/Y
2000.0 Vdc5 mA 0.0-12.0 Vdc75%10.0W
J10-200/A
J10-200/A/Y
2000.0 Vdc2.5 mA
2.5 mA		 0.0-15.0 Vdc75%10.0W
J10-D200
J10-D200/Y
2000.0 Vdc2.5 mA
2.5 mA		 0.0-15.0 Vdc75%10.0W
J10-D200/A
J10-D200/A/Y
2500.0 Vdc2 mA
2 mA		 0.0-15.0 Vdc75%10.0W
J10-D250
J10-D250/Y
2500.0 Vdc2 mA
2 mA		 0.0-15.0 Vdc75%10.0W
J10-D250/A
J10-D250/A/Y
3000.0 Vdc3.3 mA 0.0-15.0 Vdc75%10.0W
J10-300
J10-300/Y
3000.0 Vdc3.3 mA 0.0-15.0 Vdc75%10.0W
J10-300/A
J10-300/A/Y
4000.0 Vdc2.5 mA 0.0-15.0 Vdc75%10.0W
J10-400
J10-400/Y
4000.0 Vdc2.5 mA 0.0-15.0 Vdc75%10.0W
J10-400/A
J10-400/A/Y
5000.0 Vdc2 mA 0.0-15.0 Vdc75%10.0W
J10-500
J10-500/Y
5000.0 Vdc2 mA 0.0-15.0 Vdc78%10.0W
J10-500/A
J10-500/A/Y
6000.0 Vdc1.66 mA 0.0-15.0 Vdc75%10.0W
J10-600
J10-600/Y
6000.0 Vdc1.66 mA 0.0-15.0 Vdc75%10.0W
J10-600/A
J10-600/A/Y
6000.0 Vdc1.66 mA 0.0-15.0 Vdc75%5.0W
J10-D300
J10-D300/Y
6000.0 Vdc1.66 mA 0.0-15.0 Vdc75%10.0W
J10-D300/A
J10-D300/A/Y
