P3 Series 3.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • + or - Outputs to 12000Vdc
  • Dual Outputs
  • Low Power Consumption

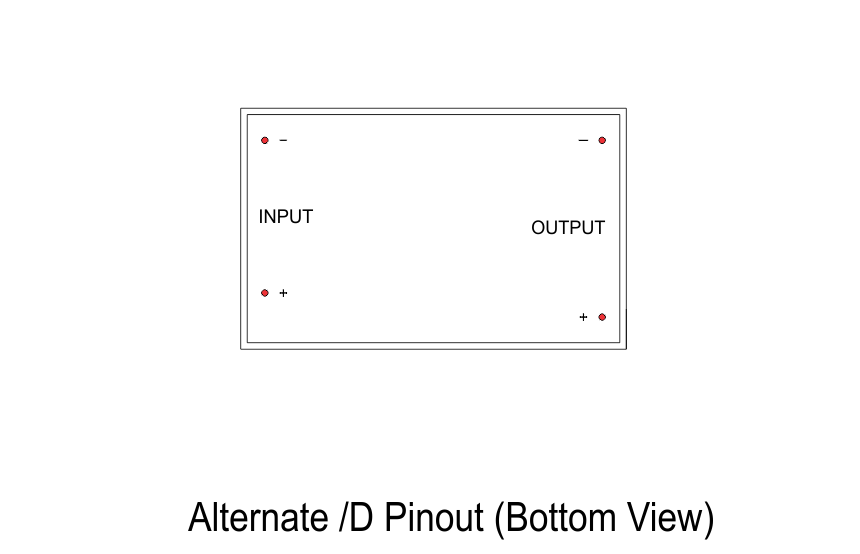

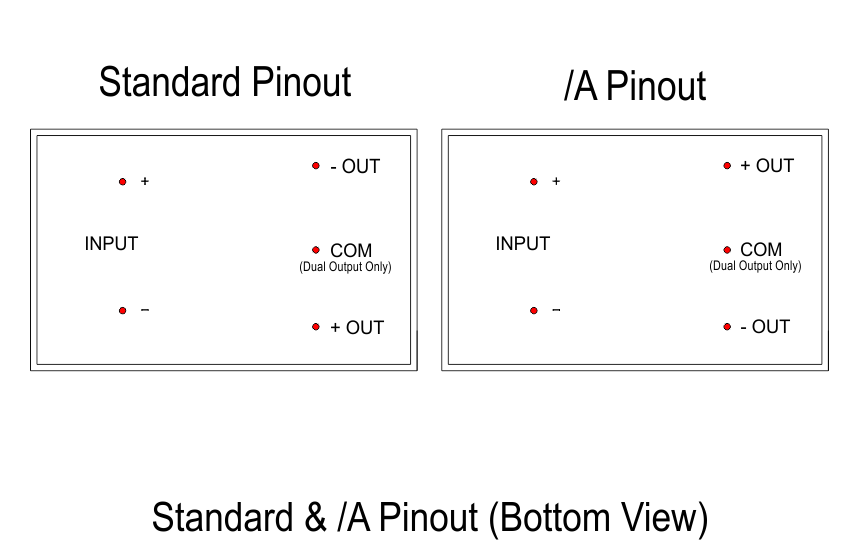

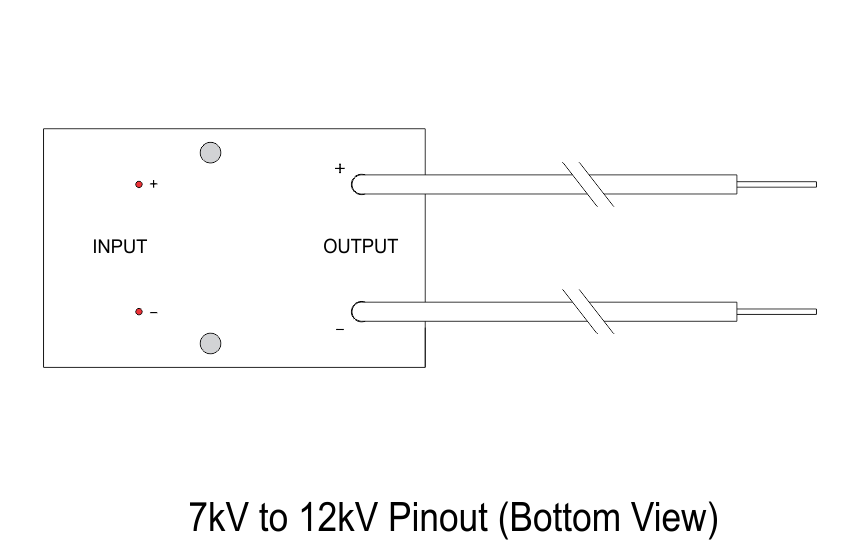

  • Industry Standard Pinouts
  • LC Network (Input Filter)
  • 6500 kVdc Output Isolation
  • Continuous Short Circuit Protection

The P3 Series of DC/DC converters offer a 6500 kVdc isolated high voltage output directly proportional to input voltage. They are available in alternate industry standard pinouts. All models will tolerate a short circuit indefinitely. They also include a LC Network input filter to minimize reflected ripple current.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -20 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Shield Available
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 0-12Vdc, 0-15Vdc
Voltage Accuracy: 10% / 10%
Line Regulation: Proportional
Load Regulation: 10%
Output Ripple: 1%
 Input Filter: LC Network
Efficiency: 70%
Short Circuit Protection: Continuous
Switching Frequency: 60 kHz
Isolation: 6500 kVdc
Dimensions: 1.5 x 2.4 x 0.81 [INCHES]
Weight: 3.1 Oz
 Case Material: Black Plastic
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
50.0 Vdc30 mA
30 mA		 0.0-12.0 Vdc76%3.0W
P3-D5
P3-D5/Y
50.0 Vdc30 mA
30 mA		 0.0-12.0 Vdc76%3.0W
P3-D5/A
P3-D5/A/Y
100.0 Vdc30 mA 0.0-12.0 Vdc76%3.0W
P3-10
P3-10/Y
100.0 Vdc30 mA 0.0-12.0 Vdc75%3.0W
P3-10/A
P3-10/A/Y
100.0 Vdc15 mA
15 mA		 0.0-12.0 Vdc76%3.0W
P3-D10
P3-D10/Y
100.0 Vdc15 mA
15 mA		 0.0-12.0 Vdc76%3.0W
P3-D10/A
P3-D10/A/Y
150.0 Vdc10 mA
10 mA		 0.0-12.0 Vdc76%3.0W
P3-D15
P3-D15/Y
150.0 Vdc10 mA
10 mA		 0.0-12.0 Vdc76%3.0W
P3-D15/A
P3-D15/A/Y
200.0 Vdc15 mA 0.0-12.0 Vdc76%3.0W
P3-20
P3-20/Y
200.0 Vdc15 mA 0.0-12.0 Vdc75%3.0W
P3-20/A
P3-20/A/Y
250.0 Vdc12 mA 0.0-12.0 Vdc76%3.0W
P3-25
P3-25/Y
250.0 Vdc12 mA 0.0-12.0 Vdc76%3.0W
P3-25/A
P3-25/A/Y
250.0 Vdc6 mA
6 mA		 0.0-12.0 Vdc76%3.0W
P3-D25
P3-D25/Y
250.0 Vdc6 mA
6 mA		 0.0-12.0 Vdc76%3.0W
P3-D25/A
P3-D25/A/Y
300.0 Vdc10 mA 0.0-12.0 Vdc76%3.0W
P3-30
P3-30/Y
300.0 Vdc10 mA 0.0-12.0 Vdc75%3.0W
P3-30/A
P3-30/A/Y
300.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc76%3.0W
P3-D30
P3-D30/Y
300.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc76%3.0W
P3-D30/A
P3-D30/A/Y
400.0 Vdc3.75 mA
3.75 mA		 0.0-12.0 Vdc76%3.0W
P3-D40
P3-D40/Y
400.0 Vdc3.75 mA
3.75 mA		 0.0-12.0 Vdc76%3.0W
P3-D40/A
P3-D40/A/Y
500.0 Vdc6 mA 0.0-12.0 Vdc76%3.0W
P3-50
P3-50/Y
500.0 Vdc6 mA 0.0-12.0 Vdc76%3.0W
P3-50/A
P3-50/A/Y
500.0 Vdc3 mA
3 mA		 0.0-12.0 Vdc76%3.0W
P3-D50
P3-D50/Y
500.0 Vdc3 mA
3 mA		 0.0-12.0 Vdc76%3.0W
P3-D50/A
P3-D50/A/Y
600.0 Vdc5 mA 0.0-12.0 Vdc76%3.0W
P3-60
P3-60/Y
600.0 Vdc5 mA 0.7-12.0 Vdc75%3.0W
P3-60/A
P3-60/A/Y
600.0 Vdc2.5 mA
2.5 mA		 0.0-12.0 Vdc76%3.0W
P3-D60
P3-D60/Y
600.0 Vdc2.5 mA
2.5 mA		 0.0-12.0 Vdc76%3.0W
P3-D60/A
P3-D60/A/Y
750.0 Vdc2 mA
2 mA		 0.0-12.0 Vdc76%3.0W
P3-D75
P3-D75/Y
750.0 Vdc2 mA
2 mA		 0.0-12.0 Vdc76%3.0W
P3-D75/A
P3-D75/A/Y
800.0 Vdc3.75 mA 0.0-12.0 Vdc76%3.0W
P3-80
P3-80/Y
800.0 Vdc3.75 mA 0.0-12.0 Vdc75%3.0W
P3-80/A
P3-80/A/Y
1000.0 Vdc3 mA 0.0-12.0 Vdc76%3.0W
P3-100
P3-100/Y
1000.0 Vdc3 mA 0.0-12.0 Vdc76%3.0W
P3-100/A
P3-100/A/Y
1000.0 Vdc1.5 mA
1.5 mA		 0.0-12.0 Vdc76%3.0W
P3-D100
P3-D100/Y
1000.0 Vdc1.5 mA
1.5 mA		 0.0-12.0 Vdc76%3.0W
P3-D100/A
P3-D100/A/Y
1200.0 Vdc2.5 mA 0.0-12.0 Vdc76%3.0W
P3-120
P3-120/Y
1200.0 Vdc2.5 mA 0.0-12.0 Vdc76%3.0W
P3-120/A
P3-120/A/Y
1300.0 Vdc2.3 mA 0.0-12.0 Vdc76%3.0W
P3-130
P3-130/Y
1300.0 Vdc2.3 mA 0.0-12.0 Vdc76%3.0W
P3-130/A
P3-130/A/Y
1500.0 Vdc2 mA 0.0-12.0 Vdc76%3.0W
P3-150
P3-150/Y
1500.0 Vdc2 mA 0.0-12.0 Vdc76%3.0W
P3-150/A
P3-150/A/Y
1500.0 Vdc1 mA
1 mA		 0.0-12.0 Vdc76%3.0W
P3-D150
P3-D150/Y
1500.0 Vdc1 mA
1 mA		 0.0-12.0 Vdc76%3.0W
P3-D150/A
P3-D150/A/Y
2000.0 Vdc1.5 mA 0.0-12.0 Vdc76%3.0W
P3-200
P3-200/Y
2000.0 Vdc1.5 mA 0.0-12.0 Vdc76%3.0W
P3-200/A
P3-200/A/Y
2000.0 Vdc0.75 mA
0.75 mA		 0.0-15.0 Vdc76%3.0W
P3-D200
P3-D200/Y
2000.0 Vdc0.75 mA
0.75 mA		 0.0-15.0 Vdc76%3.0W
P3-D200/A
P3-D200/A/Y
2200.0 Vdc1.36 mA 0.0-12.0 Vdc76%3.0W
P3-220
P3-220/Y
2200.0 Vdc1.36 mA 0.0-12.0 Vdc76%3.0W
P3-220/A
P3-220/A/Y
2300.0 Vdc1.3 mA 0.0-12.0 Vdc76%3.0W
P3-230
P3-230/Y
2300.0 Vdc1.3 mA 0.0-12.0 Vdc76%3.0W
P3-230/A
P3-230/A/Y
2500.0 Vdc1.2 mA 0.0-12.0 Vdc76%3.0W
P3-250
P3-250/Y
2500.0 Vdc1.2 mA 0.0-12.0 Vdc76%3.0W
P3-250/A
P3-250/A/Y
2500.0 Vdc0.6 mA
0.6 mA		 0.0-15.0 Vdc76%3.0W
P3-D250
P3-D250/Y
2500.0 Vdc0.6 mA
0.6 mA		 0.0-15.0 Vdc76%3.0W
P3-D250/A
P3-D250/A/Y
3000.0 Vdc1 mA 0.0-12.0 Vdc76%3.0W
P3-300
P3-300/Y
3000.0 Vdc1 mA 0.0-12.0 Vdc76%3.0W
P3-300/A
P3-300/A/Y
3000.0 Vdc0.5 mA
0.5 mA		 0.0-15.0 Vdc76%3.0W
P3-D300/A
P3-D300/A/Y
3200.0 Vdc0.93 mA 0.0-12.0 Vdc76%3.0W
P3-320
P3-320/Y
3200.0 Vdc0.93 mA 0.0-12.0 Vdc76%3.0W
P3-320/A
P3-320/A/Y
3300.0 Vdc0.9 mA 0.0-12.0 Vdc76%3.0W
P3-330
P3-330/Y
3300.0 Vdc0.9 mA 0.0-12.0 Vdc76%3.0W
P3-330/A
P3-330/A/Y
3500.0 Vdc0.85 mA 0.0-12.0 Vdc76%3.0W
P3-350
P3-350/Y
3500.0 Vdc0.85 mA 0.0-12.0 Vdc76%3.0W
P3-350/A
P3-350/A/Y
4000.0 Vdc0.75 mA 0.0-12.0 Vdc75%3.0W
P3-400
P3-400/Y
4000.0 Vdc0.75 mA 0.0-12.0 Vdc76%3.0W
P3-400/A
P3-400/A/Y
5000.0 Vdc0.6 mA 0.0-15.0 Vdc52%3.0W
P3-500
P3-500/Y
5000.0 Vdc0.6 mA 0.0-15.0 Vdc70%3.0W
P3-500/A
P3-500/A/Y
6000.0 Vdc0.5 mA 0.0-15.0 Vdc70%3.0W
P3-600
P3-600/Y
6000.0 Vdc0.5 mA 0.0-15.0 Vdc70%3.0W
P3-600/A
P3-600/A/Y
6000.0 Vdc0.5 mA 0.0-15.0 Vdc70%2.0W
P3-D300
P3-D300/Y
7000.0 Vdc0.43 mA 0.0-15.0 Vdc68%3.0W
P3-700
P3-700/Y
8000.0 Vdc0.25 mA 0.7-15.0 Vdc68%2.0W
P3-800
P3-800/Y
9000.0 Vdc0.25 mA 0.7-15.0 Vdc68%2.0W
P3-900
P3-900/Y
10000.0 Vdc0.2 mA 0.0-15.0 Vdc45%2.0W
P3-1000
P3-1000/Y
12000.0 Vdc0.16 mA 0.0-15.0 Vdc66%2.0W
P3-1200
P3-1200/Y



Full Product Specification
PDF format

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
