X30 Series 30.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • Excellent Line & Load Regulation
  • Independently Isolated Outputs
  • Ultra Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection
  • Remote On/Off Control

The X30 Series of DC/DC converters accepts wide input ranges of 9-36Vdc, 20-60Vdc, 36-72Vdc. Outputs are isolated to 1 kVdc. In the case of duals, the outputs are completely independent including overload protection. All models will tolerate a short circuit indefinitely. Also included is a PI Network input filter and remote on/off.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -45 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 9-36Vdc, 20-60Vdc, 36-72Vdc
Voltage Accuracy: 1% / 1%
Line Regulation: 0.2%
Load Regulation: 0.3%
Output Ripple: 0.3%
 Input Filter: PI Network
Efficiency: 86%
Short Circuit Protection: Continuous
Switching Frequency: 120 kHz
Isolation: 1 kVdc
Dimensions: 2.6 x 3 x 0.83 [INCHES]
Weight: 8.4 Oz
 Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
24.0 Vdc1.2 A 9.0-36.0 Vdc86%29.0W
X30-24
X30-24/Y
24.0 Vdc
24.0 Vdc		625 mA
625 mA		 9.0-36.0 Vdc86%30.0W
X30-24/24
X30-24/24/Y
24.0 Vdc
24.0 Vdc		625 mA
625 mA		 20.0-60.0 Vdc86%30.0W
X30-24/24/B
X30-24/24/B/Y
24.0 Vdc
24.0 Vdc		625 mA
625 mA		 36.0-72.0 Vdc86%30.0W
X30-24/24/C
X30-24/24/C/Y
24.0 Vdc1.2 A 20.0-60.0 Vdc86%29.0W
X30-24/B
X30-24/B/Y
24.0 Vdc1.2 A 36.0-72.0 Vdc86%29.0W
X30-24/C
X30-24/C/Y
48.0 Vdc625 mA 9.0-36.0 Vdc86%30.0W
X30-48
X30-48/Y
48.0 Vdc
48.0 Vdc		312 mA
312 mA		 9.0-36.0 Vdc86%30.0W
X30-48/48
X30-48/48/Y
48.0 Vdc
48.0 Vdc		312 mA
312 mA		 20.0-60.0 Vdc86%30.0W
X30-48/48/B
X30-48/48/B/Y
48.0 Vdc
48.0 Vdc		312 mA
312 mA		 36.0-72.0 Vdc86%30.0W
X30-48/48/C
X30-48/48/C/Y
48.0 Vdc625 mA 20.0-60.0 Vdc86%30.0W
X30-48/B
X30-48/B/Y
48.0 Vdc625 mA 36.0-72.0 Vdc86%30.0W
X30-48/C
X30-48/C/Y
50.0 Vdc600 mA 9.0-36.0 Vdc86%30.0W
X30-50
X30-50/Y
50.0 Vdc
50.0 Vdc		300 mA
300 mA		 9.0-36.0 Vdc86%30.0W
X30-50/50
X30-50/50/Y
50.0 Vdc
50.0 Vdc		300 mA
300 mA		 20.0-60.0 Vdc86%30.0W
X30-50/50/B
X30-50/50/B/Y
50.0 Vdc
50.0 Vdc		300 mA
300 mA		 36.0-72.0 Vdc86%30.0W
X30-50/50/C
X30-50/50/C/Y
50.0 Vdc600 mA 20.0-60.0 Vdc86%30.0W
X30-50/B
X30-50/B/Y
50.0 Vdc600 mA 36.0-72.0 Vdc86%30.0W
X30-50/C
X30-50/C/Y
75.0 Vdc400 mA 9.0-36.0 Vdc86%30.0W
X30-75
X30-75/Y
75.0 Vdc
75.0 Vdc		200 mA
200 mA		 9.0-36.0 Vdc86%30.0W
X30-75/75
X30-75/75/Y
75.0 Vdc
75.0 Vdc		200 mA
200 mA		 20.0-60.0 Vdc86%30.0W
X30-75/75/B
X30-75/75/B/Y
75.0 Vdc
75.0 Vdc		200 mA
200 mA		 36.0-72.0 Vdc86%30.0W
X30-75/75/C
X30-75/75/C/Y
75.0 Vdc400 mA 20.0-60.0 Vdc86%30.0W
X30-75/B
X30-75/B/Y
75.0 Vdc400 mA 36.0-72.0 Vdc86%30.0W
X30-75/C
X30-75/C/Y
100.0 Vdc300 mA 9.0-36.0 Vdc86%30.0W
X30-100
X30-100/Y
100.0 Vdc
100.0 Vdc		150 mA
150 mA		 9.0-36.0 Vdc86%30.0W
X30-100/100
X30-100/100/Y
100.0 Vdc
100.0 Vdc		150 mA
150 mA		 20.0-60.0 Vdc86%30.0W
X30-100/100/B
X30-100/100/B/Y
100.0 Vdc
100.0 Vdc		150 mA
150 mA		 36.0-72.0 Vdc86%30.0W
X30-100/100/C
X30-100/100/C/Y
100.0 Vdc300 mA 20.0-60.0 Vdc86%30.0W
X30-100/B
X30-100/B/Y
100.0 Vdc300 mA 36.0-72.0 Vdc86%30.0W
X30-100/C
X30-100/C/Y
150.0 Vdc200 mA 9.0-36.0 Vdc86%30.0W
X30-150
X30-150/Y
150.0 Vdc
150.0 Vdc		100 mA
100 mA		 9.0-36.0 Vdc86%30.0W
X30-150/150
X30-150/150/Y
150.0 Vdc
150.0 Vdc		100 mA
100 mA		 20.0-60.0 Vdc86%30.0W
X30-150/150/B
X30-150/150/B/Y
150.0 Vdc
150.0 Vdc		100 mA
100 mA		 36.0-72.0 Vdc86%30.0W
X30-150/150/C
X30-150/150/C/Y
150.0 Vdc200 mA 20.0-60.0 Vdc86%30.0W
X30-150/B
X30-150/B/Y
150.0 Vdc200 mA 36.0-72.0 Vdc86%30.0W
X30-150/C
X30-150/C/Y
160.0 Vdc
160.0 Vdc		93.8 mA
93.8 mA		 9.0-36.0 Vdc86%30.0W
X30-160/160
X30-160/160/Y
173.0 Vdc
173.0 Vdc		86.7 mA
86.7 mA		 20.0-60.0 Vdc86%30.0W
X30-173/173/B
X30-173/173/B/Y
180.0 Vdc
180.0 Vdc		83.3 mA
83.3 mA		 9.0-36.0 Vdc86%30.0W
X30-180/180
X30-180/180/Y
200.0 Vdc150 mA 9.0-36.0 Vdc88%30.0W
X30-200
X30-200/Y
200.0 Vdc
200.0 Vdc		75 mA
75 mA		 9.0-36.0 Vdc86%30.0W
X30-200/200
X30-200/200/Y
200.0 Vdc
200.0 Vdc		75 mA
75 mA		 20.0-60.0 Vdc86%30.0W
X30-200/200/B
X30-200/200/B/Y
200.0 Vdc
200.0 Vdc		75 mA
75 mA		 36.0-72.0 Vdc86%30.0W
X30-200/200/C
X30-200/200/C/Y
200.0 Vdc150 mA 20.0-60.0 Vdc86%30.0W
X30-200/B
X30-200/B/Y
200.0 Vdc150 mA 36.0-72.0 Vdc86%30.0W
X30-200/C
X30-200/C/Y
250.0 Vdc120 mA 9.0-36.0 Vdc86%30.0W
X30-250
X30-250/Y
250.0 Vdc120 mA 20.0-60.0 Vdc86%30.0W
X30-250/B
X30-250/B/Y
275.0 Vdc109 mA 20.0-60.0 Vdc86%30.0W
X30-275/B
X30-275/B/Y
275.0 Vdc109 mA 36.0-72.0 Vdc86%30.0W
X30-275/C
X30-275/C/Y
300.0 Vdc100 mA 9.0-36.0 Vdc86%30.0W
X30-300
X30-300/Y
300.0 Vdc
300.0 Vdc		50 mA
50 mA		 9.0-36.0 Vdc86%30.0W
X30-300/300
X30-300/300/Y
300.0 Vdc
300.0 Vdc		50 mA
50 mA		 20.0-60.0 Vdc86%30.0W
X30-300/300/B
X30-300/300/B/Y
300.0 Vdc
300.0 Vdc		50 mA
50 mA		 36.0-72.0 Vdc86%30.0W
X30-300/300/C
X30-300/300/C/Y
300.0 Vdc100 mA 20.0-60.0 Vdc86%30.0W
X30-300/B
X30-300/B/Y
300.0 Vdc100 mA 36.0-72.0 Vdc86%30.0W
X30-300/C
X30-300/C/Y
320.0 Vdc93.8 mA 9.0-36.0 Vdc86%30.0W
X30-320
X30-320/Y
340.0 Vdc
340.0 Vdc		44 mA
44 mA		 9.0-36.0 Vdc86%30.0W
X30-340/340
X30-340/340/Y
375.0 Vdc
375.0 Vdc		40 mA
40 mA		 9.0-36.0 Vdc86%30.0W
X30-375/375
X30-375/375/Y
400.0 Vdc75 mA 9.0-36.0 Vdc86%30.0W
X30-400
X30-400/Y
400.0 Vdc
400.0 Vdc		37 mA
37 mA		 9.0-36.0 Vdc86%30.0W
X30-400/400
X30-400/400/Y
400.0 Vdc
400.0 Vdc		37 mA
37 mA		 20.0-60.0 Vdc86%30.0W
X30-400/400/B
X30-400/400/B/Y
400.0 Vdc
400.0 Vdc		37 mA
37 mA		 36.0-72.0 Vdc86%30.0W
X30-400/400/C
X30-400/400/C/Y
400.0 Vdc75 mA 20.0-60.0 Vdc86%30.0W
X30-400/B
X30-400/B/Y
400.0 Vdc75 mA 36.0-72.0 Vdc86%30.0W
X30-400/C
X30-400/C/Y
430.0 Vdc
430.0 Vdc		34.9 mA
34.9 mA		 9.0-36.0 Vdc86%30.0W
X30-430/430
X30-430/430/Y
435.0 Vdc
435.0 Vdc		34.5 mA
34.5 mA		 9.0-36.0 Vdc86%30.0W
X30-435/435
X30-435/435/Y
440.0 Vdc
440.0 Vdc		34.1 mA
34.1 mA		 9.0-36.0 Vdc86%30.0W
X30-440/440
X30-440/440/Y
500.0 Vdc60 mA 9.0-36.0 Vdc86%30.0W
X30-500
X30-500/Y
500.0 Vdc
500.0 Vdc		30 mA
30 mA		 9.0-36.0 Vdc86%30.0W
X30-500/500
X30-500/500/Y
500.0 Vdc
500.0 Vdc		30 mA
30 mA		 20.0-60.0 Vdc86%30.0W
X30-500/500/B
X30-500/500/B/Y
500.0 Vdc
500.0 Vdc		30 mA
30 mA		 36.0-72.0 Vdc86%30.0W
X30-500/500/C
X30-500/500/C/Y
500.0 Vdc60 mA 20.0-60.0 Vdc86%30.0W
X30-500/B
X30-500/B/Y
500.0 Vdc60 mA 36.0-72.0 Vdc86%30.0W
X30-500/C
X30-500/C/Y
550.0 Vdc
550.0 Vdc		27.27 mA
27.27 mA		 9.0-36.0 Vdc86%30.0W
X30-550/550
X30-550/550/Y



Full Product Specification
PDF format

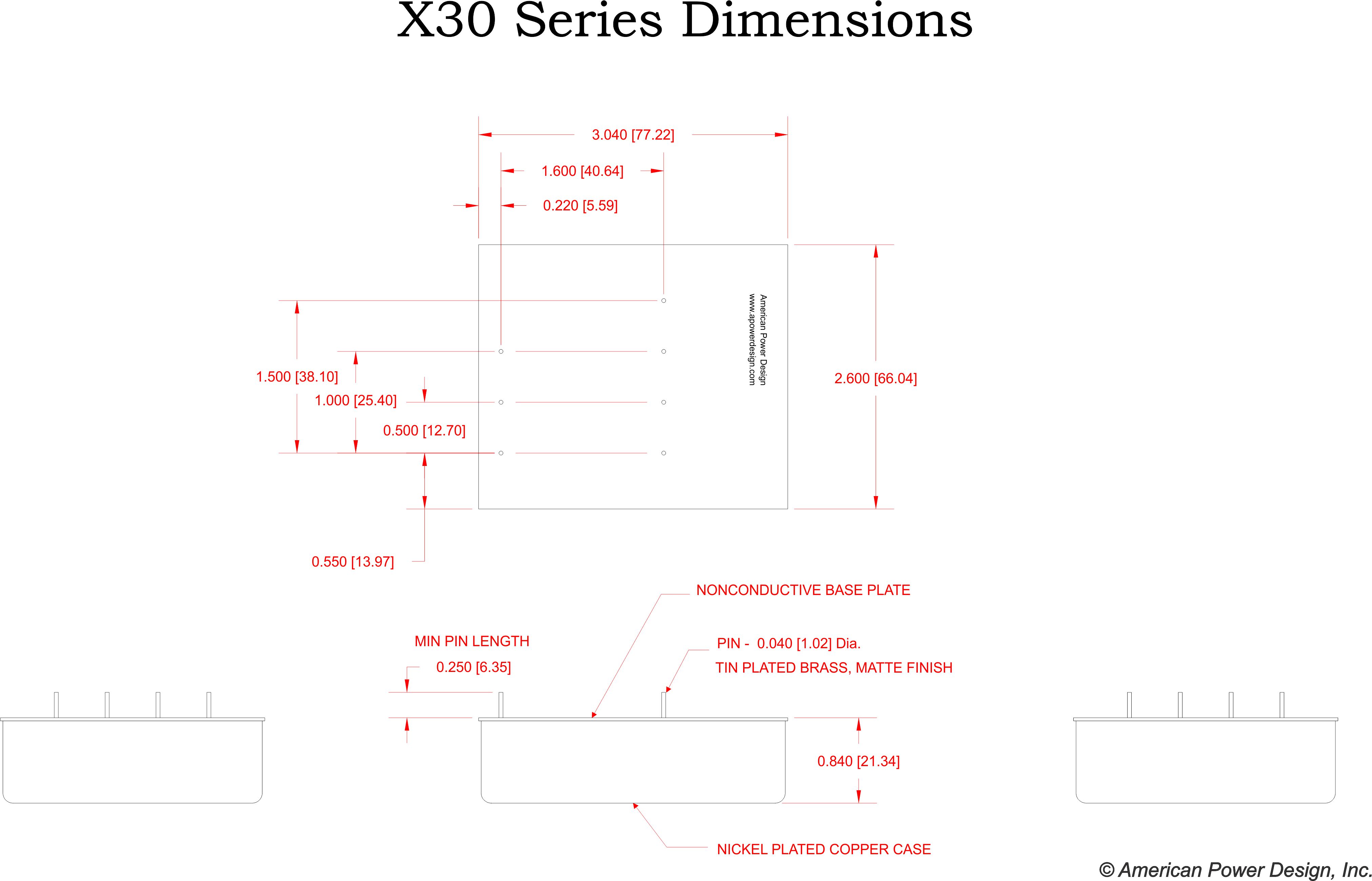

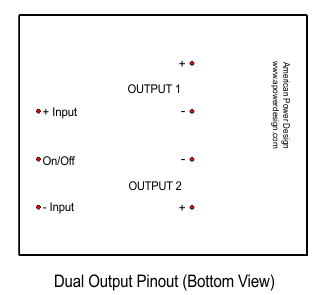

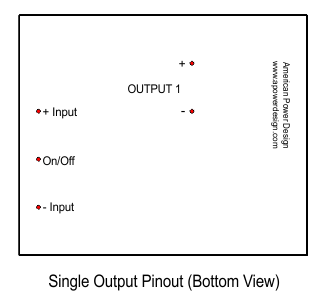

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
