P10 Series 10.0 Watt

High Voltage DC/DC Converters

General Specs
Electrical Specs
Physical Specs
Model Listing

	Features Customer Selects Output Voltage + or - Outputs to 8000Vdc Dual Outputs Low Power Consumption Industry Standard Pinouts PI Network (Input Filter) 5 kVdc Output Isolation Continuous Short Circuit Protection
The P10 Series of DC/DC converters offer a 5 kVdc isolated high voltage output directly proportional to input voltage. They are available in alternate industry standard pinouts. All models will tolerate a short circuit indefinitely. They also include a PI Network input filter to minimize reflected ripple current.

Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Shield Available
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y

Input Ranges: 4-12Vdc
Voltage Accuracy: 10%
Line Regulation: Proportional
Load Regulation: 10%
Output Ripple: 0.3%

Input Filter: PI Network
Efficiency: 74%
Short Circuit Protection: Continuous
Switching Frequency: 60 kHz
Isolation: 5 kVdc

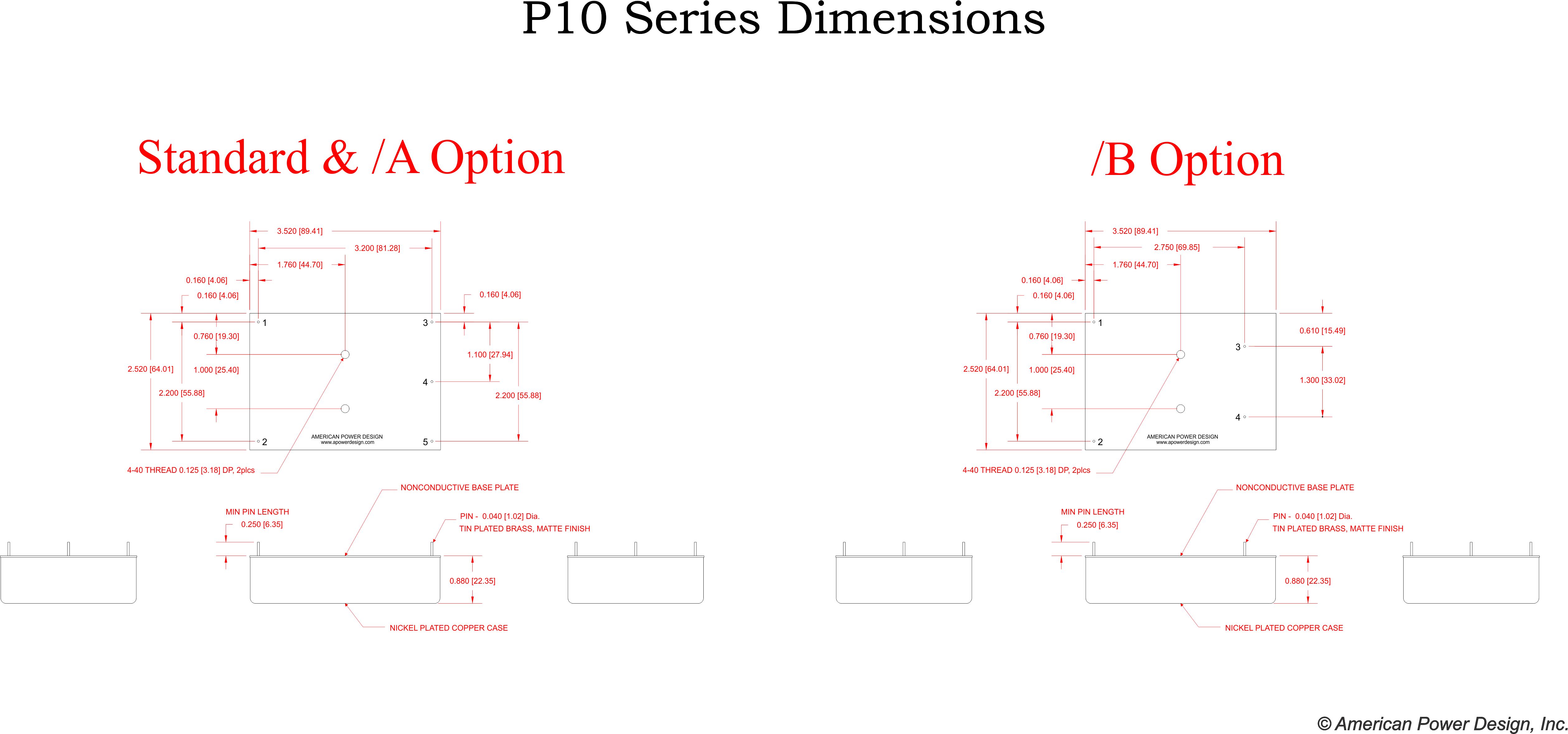

Dimensions: 2.5 x 3.5 x 0.88 [INCHES]
Weight: 9.5 Oz

Case Material: Nickel Plated Metal

Models Currently In Production

Output Voltage

Current

Input Voltage

Efficiency

Power

Model Number

100.0 Vdc

100 mA

4.0-12.0 Vdc

76%

10.0W

P10-10
P10-10/Y

100.0 Vdc

100 mA

4.0-12.0 Vdc

76%

10.0W

P10-10/A
P10-10/A/Y

500.0 Vdc

20 mA

4.0-12.0 Vdc

76%

10.0W

P10-50
P10-50/Y

500.0 Vdc

20 mA

4.0-12.0 Vdc

76%

10.0W

P10-50/A
P10-50/A/Y

1000.0 Vdc

10 mA

4.0-12.0 Vdc

76%

10.0W

P10-100
P10-100/Y

1000.0 Vdc

10 mA

4.0-12.0 Vdc

76%

10.0W

P10-100/A
P10-100/A/Y

1500.0 Vdc

6.6 mA

4.0-12.0 Vdc

75%

10.0W

P10-150
P10-150/Y

1500.0 Vdc

6.6 mA

4.0-12.0 Vdc

76%

10.0W

P10-150/A
P10-150/A/Y

2000.0 Vdc

5 mA

4.0-12.0 Vdc

76%

10.0W

P10-200
P10-200/Y

2000.0 Vdc

5 mA

4.0-12.0 Vdc

76%

10.0W

P10-200/A
P10-200/A/Y

2500.0 Vdc

4 mA

4.0-12.0 Vdc

76%

10.0W

P10-250
P10-250/Y

2500.0 Vdc

4 mA

4.0-12.0 Vdc

76%

10.0W

P10-250/A
P10-250/A/Y

3000.0 Vdc

3.3 mA

4.0-12.0 Vdc

75%

10.0W

P10-300/B
P10-300/B/Y

3500.0 Vdc

2.8 mA

4.0-12.0 Vdc

76%

10.0W

P10-350/B
P10-350/B/Y

4000.0 Vdc

2.5 mA

4.0-12.0 Vdc

76%

10.0W

P10-400/B
P10-400/B/Y

4500.0 Vdc

2.2 mA

4.0-12.0 Vdc

77%

10.0W

P10-450/B
P10-450/B/Y

5000.0 Vdc

2 mA

4.0-12.0 Vdc

76%

10.0W

P10-500/B
P10-500/B/Y

5500.0 Vdc

1.8 mA

4.0-12.0 Vdc

76%

10.0W

P10-550/B
P10-550/B/Y

6000.0 Vdc

1.666 mA

4.0-12.0 Vdc

71%

10.0W

P10-600/B
P10-600/B/Y

6500.0 Vdc

1.5 mA

4.0-12.0 Vdc

63%

10.0W

P10-650/B
P10-650/B/Y

7000.0 Vdc

1.4 mA

4.0-12.0 Vdc

63%

10.0W

P10-700/B
P10-700/B/Y

8000.0 Vdc

1.2 mA

4.0-12.0 Vdc

63%

10.0W

P10-800/B
P10-800/B/Y
