X150 Series 150.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • Excellent Line & Load Regulation
  • Independently Isolated Outputs
  • Ultra Wide Input Range
  • 1kVdc Output Isolation
  • Continuous Short Circuit Protection
  • Remote On/Off Control

The X150 Series of DC/DC converters accepts wide input ranges of 18-36Vdc, 20-60Vdc, 36-72Vdc. Outputs are isolated to 1kVdc. In the case of duals, the outputs are completely independent including overload protection. All models will tolerate a short circuit indefinitely. Also included is a PI Network input filter and remote on/off.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -45 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 18-36Vdc, 20-60Vdc, 36-72Vdc
Voltage Accuracy: 1% / 1%
Line Regulation: 0.2%
Load Regulation: 0.3%
Output Ripple: 0.3%
 Input Filter: PI Network
Efficiency: 90%
Short Circuit Protection: Continuous
Switching Frequency: 120kHz
Isolation: 1kVdc

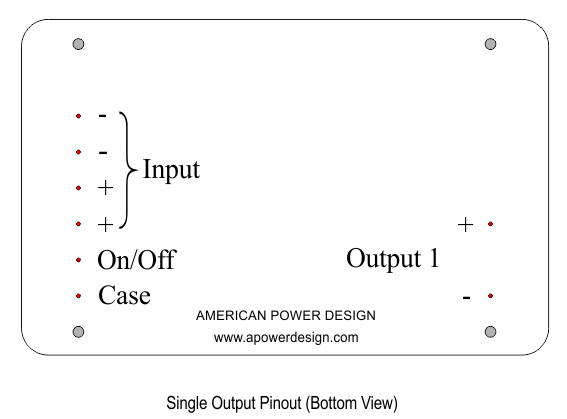

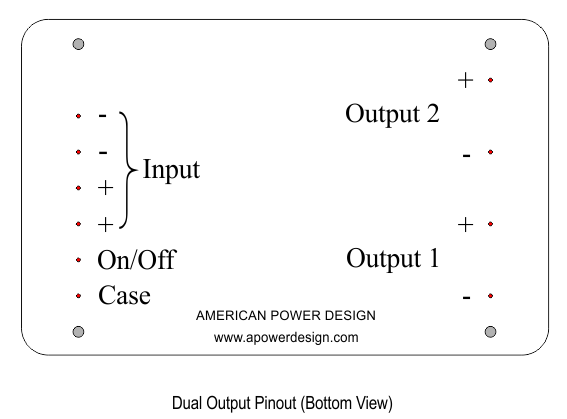

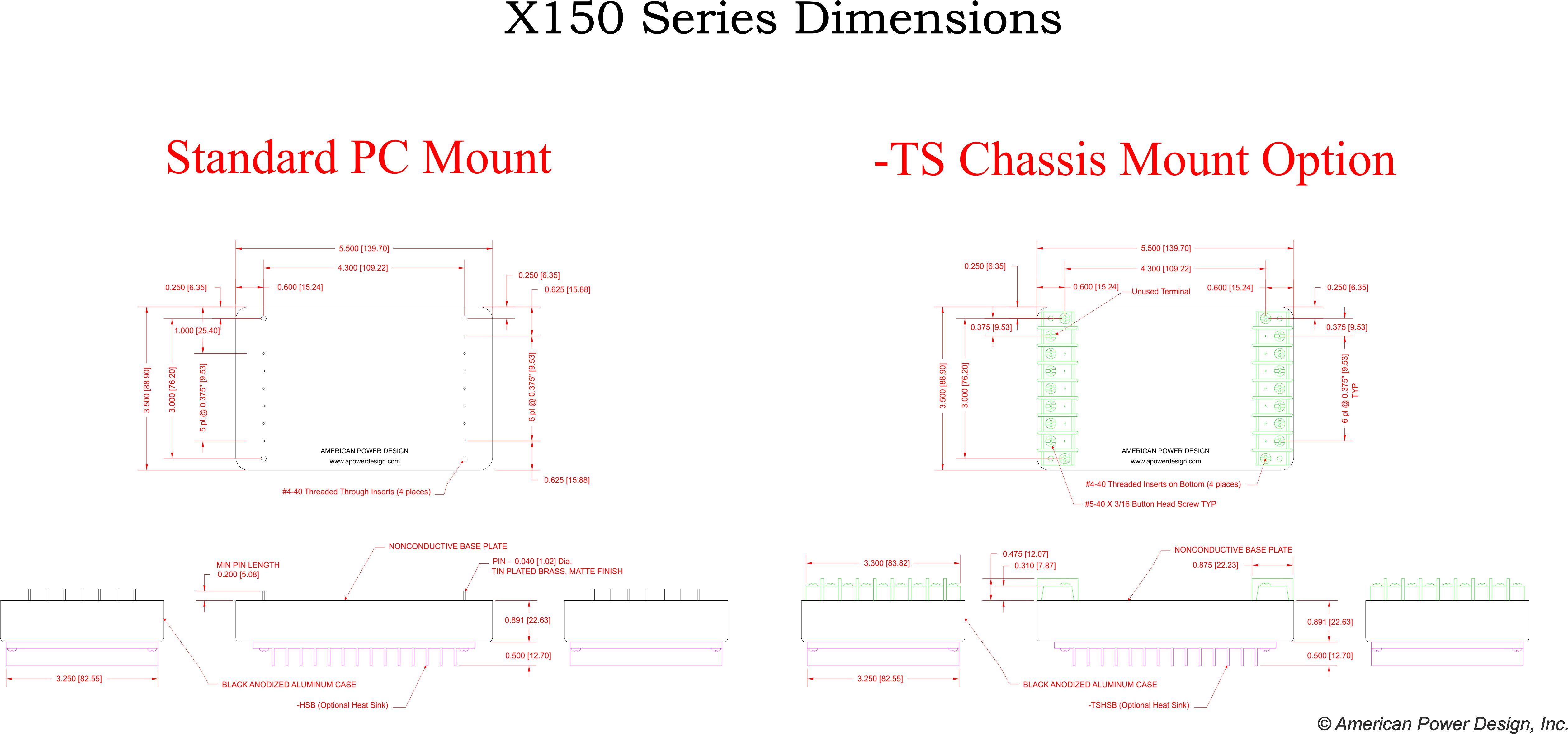

Dimensions: 3.5 x 5.5 x 0.92 [INCHES]
Weight: 18.5 Oz
 Case Material: Black Coated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
48.0 Vdc3 A 18.0-36.0 Vdc90%144.0W
X150-48
X150-48/Y
48.0 Vdc
48.0 Vdc		1.5 A
1.5 A		 18.0-36.0 Vdc90%144.0W
X150-48/48
X150-48/48/Y
48.0 Vdc
48.0 Vdc		1.5 A
1.5 A		 20.0-60.0 Vdc90%144.0W
X150-48/48/B
X150-48/48/B/Y
48.0 Vdc3 A 20.0-60.0 Vdc90%144.0W
X150-48/B
X150-48/B/Y
48.0 Vdc3.12 A 36.0-72.0 Vdc90%150.0W
X150-48/C
X150-48/C/Y
50.0 Vdc3 A 18.0-36.0 Vdc90%150.0W
X150-50
X150-50/Y
50.0 Vdc
50.0 Vdc		1.5 A
1.5 A		 18.0-36.0 Vdc90%150.0W
X150-50/50
X150-50/50/Y
50.0 Vdc
50.0 Vdc		1.5 A
1.5 A		 20.0-60.0 Vdc90%150.0W
X150-50/50/B
X150-50/50/B/Y
50.0 Vdc
50.0 Vdc		1.5 A
1.5 A		 36.0-72.0 Vdc90%150.0W
X150-50/50/C
X150-50/50/C/Y
50.0 Vdc3 A 20.0-60.0 Vdc90%150.0W
X150-50/B
X150-50/B/Y
50.0 Vdc3 A 36.0-72.0 Vdc90%150.0W
X150-50/C
X150-50/C/Y
75.0 Vdc2 A 18.0-36.0 Vdc90%150.0W
X150-75
X150-75/Y
75.0 Vdc
75.0 Vdc		1 A
1 A		 18.0-36.0 Vdc90%150.0W
X150-75/75
X150-75/75/Y
75.0 Vdc
75.0 Vdc		1 A
1 A		 20.0-60.0 Vdc90%150.0W
X150-75/75/B
X150-75/75/B/Y
75.0 Vdc
75.0 Vdc		1 A
1 A		 36.0-72.0 Vdc90%150.0W
X150-75/75/C
X150-75/75/C/Y
75.0 Vdc2 A 20.0-60.0 Vdc90%150.0W
X150-75/B
X150-75/B/Y
75.0 Vdc2 A 36.0-72.0 Vdc90%150.0W
X150-75/C
X150-75/C/Y
100.0 Vdc1.5 A 18.0-36.0 Vdc90%150.0W
X150-100
X150-100/Y
100.0 Vdc
100.0 Vdc		750 mA
750 mA		 18.0-36.0 Vdc90%150.0W
X150-100/100
X150-100/100/Y
100.0 Vdc
100.0 Vdc		750 mA
750 mA		 20.0-60.0 Vdc90%150.0W
X150-100/100/B
X150-100/100/B/Y
100.0 Vdc
100.0 Vdc		750 mA
750 mA		 36.0-72.0 Vdc90%150.0W
X150-100/100/C
X150-100/100/C/Y
100.0 Vdc1.5 A 20.0-60.0 Vdc90%150.0W
X150-100/B
X150-100/B/Y
100.0 Vdc1.5 A 36.0-72.0 Vdc90%150.0W
X150-100/C
X150-100/C/Y
150.0 Vdc1 A 18.0-36.0 Vdc90%150.0W
X150-150
X150-150/Y
150.0 Vdc
150.0 Vdc		500 mA
500 mA		 18.0-36.0 Vdc90%150.0W
X150-150/150
X150-150/150/Y
150.0 Vdc
150.0 Vdc		500 mA
500 mA		 20.0-60.0 Vdc90%150.0W
X150-150/150/B
X150-150/150/B/Y
150.0 Vdc
150.0 Vdc		500 mA
500 mA		 36.0-72.0 Vdc90%150.0W
X150-150/150/C
X150-150/150/C/Y
150.0 Vdc1 A 20.0-60.0 Vdc90%150.0W
X150-150/B
X150-150/B/Y
150.0 Vdc1 A 36.0-72.0 Vdc90%150.0W
X150-150/C
X150-150/C/Y
165.0 Vdc909 mA 18.0-36.0 Vdc90%150.0W
X150-165
X150-165/Y
175.0 Vdc
175.0 Vdc		428.5 mA
428.5 mA		 18.0-36.0 Vdc93%150.0W
X150-175/175
X150-175/175/Y
190.0 Vdc789.4 mA 18.0-36.0 Vdc90%150.0W
X150-190
X150-190/Y
200.0 Vdc750 mA 18.0-36.0 Vdc90%150.0W
X150-200
X150-200/Y
200.0 Vdc
200.0 Vdc		375 mA
375 mA		 18.0-36.0 Vdc90%150.0W
X150-200/200
X150-200/200/Y
200.0 Vdc
200.0 Vdc		375 mA
375 mA		 20.0-60.0 Vdc90%150.0W
X150-200/200/B
X150-200/200/B/Y
200.0 Vdc
200.0 Vdc		375 mA
375 mA		 36.0-72.0 Vdc90%150.0W
X150-200/200/C
X150-200/200/C/Y
200.0 Vdc750 mA 20.0-60.0 Vdc90%150.0W
X150-200/B
X150-200/B/Y
200.0 Vdc750 mA 36.0-72.0 Vdc90%150.0W
X150-200/C
X150-200/C/Y
215.0 Vdc697.6 mA 18.0-36.0 Vdc90%150.0W
X150-215
X150-215/Y
250.0 Vdc600 mA 18.0-36.0 Vdc90%150.0W
X150-250
X150-250/Y
300.0 Vdc500 mA 18.0-36.0 Vdc90%150.0W
X150-300
X150-300/Y
300.0 Vdc
300.0 Vdc		250 mA
250 mA		 18.0-36.0 Vdc90%150.0W
X150-300/300
X150-300/300/Y
300.0 Vdc
300.0 Vdc		250 mA
250 mA		 20.0-60.0 Vdc90%150.0W
X150-300/300/B
X150-300/300/B/Y
300.0 Vdc
300.0 Vdc		250 mA
250 mA		 36.0-72.0 Vdc90%150.0W
X150-300/300/C
X150-300/300/C/Y
300.0 Vdc500 mA 20.0-60.0 Vdc90%150.0W
X150-300/B
X150-300/B/Y
300.0 Vdc500 mA 36.0-72.0 Vdc90%150.0W
X150-300/C
X150-300/C/Y
350.0 Vdc428.5 mA 18.0-36.0 Vdc90%150.0W
X150-350
X150-350/Y
350.0 Vdc428.5 mA 20.0-60.0 Vdc90%150.0W
X150-350/B
X150-350/B/Y
355.0 Vdc422 mA 20.0-60.0 Vdc90%150.0W
X150-355/B
X150-355/B/Y
395.0 Vdc379 mA 18.0-36.0 Vdc90%150.0W
X150-395
X150-395/Y
395.0 Vdc379 mA 20.0-60.0 Vdc90%150.0W
X150-395/B
X150-395/B/Y
395.0 Vdc379 mA 36.0-72.0 Vdc90%150.0W
X150-395/C
X150-395/C/Y
400.0 Vdc375 mA 18.0-36.0 Vdc90%150.0W
X150-400
X150-400/Y
400.0 Vdc
400.0 Vdc		187.5 mA
187.5 mA		 18.0-36.0 Vdc93%150.0W
X150-400/400
X150-400/400/Y
400.0 Vdc
400.0 Vdc		187 mA
187 mA		 20.0-60.0 Vdc90%150.0W
X150-400/400/B
X150-400/400/B/Y
400.0 Vdc
400.0 Vdc		187 mA
187 mA		 36.0-72.0 Vdc90%150.0W
X150-400/400/C
X150-400/400/C/Y
400.0 Vdc375 mA 20.0-60.0 Vdc90%150.0W
X150-400/B
X150-400/B/Y
400.0 Vdc375 mA 36.0-72.0 Vdc90%150.0W
X150-400/C
X150-400/C/Y
500.0 Vdc300 mA 18.0-36.0 Vdc90%150.0W
X150-500
X150-500/Y
500.0 Vdc
500.0 Vdc		150 mA
150 mA		 18.0-36.0 Vdc93%150.0W
X150-500/500
X150-500/500/Y
500.0 Vdc
500.0 Vdc		150 mA
150 mA		 20.0-60.0 Vdc93%150.0W
X150-500/500/B
X150-500/500/B/Y
500.0 Vdc
500.0 Vdc		150 mA
150 mA		 36.0-72.0 Vdc90%150.0W
X150-500/500/C
X150-500/500/C/Y
500.0 Vdc300 mA 20.0-60.0 Vdc90%150.0W
X150-500/B
X150-500/B/Y
500.0 Vdc300 mA 36.0-72.0 Vdc90%150.0W
X150-500/C
X150-500/C/Y



Full Product Specification
PDF format

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
