P2 Series 2.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • + or - Outputs to 6000Vdc
  • Dual Outputs
  • Low Power Consumption

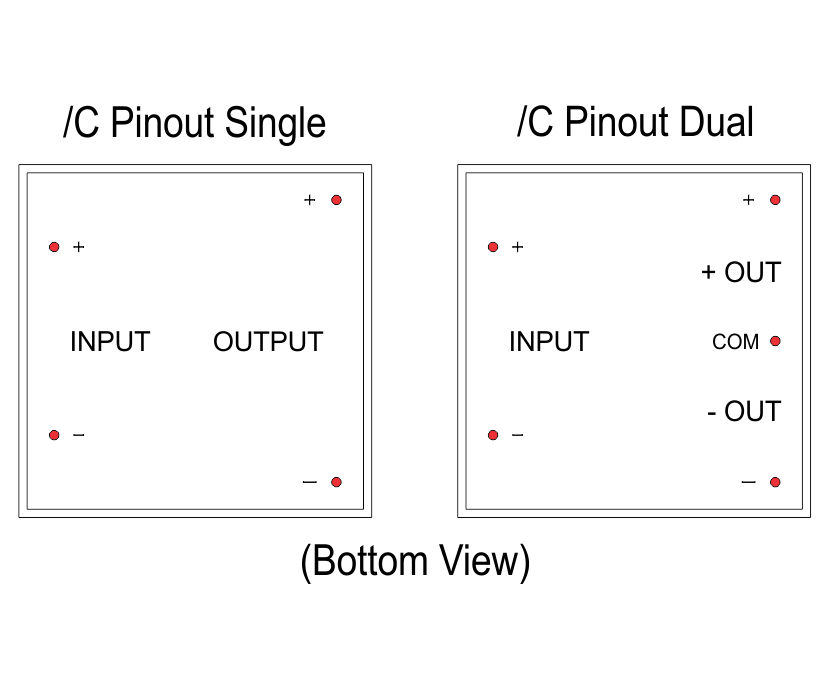

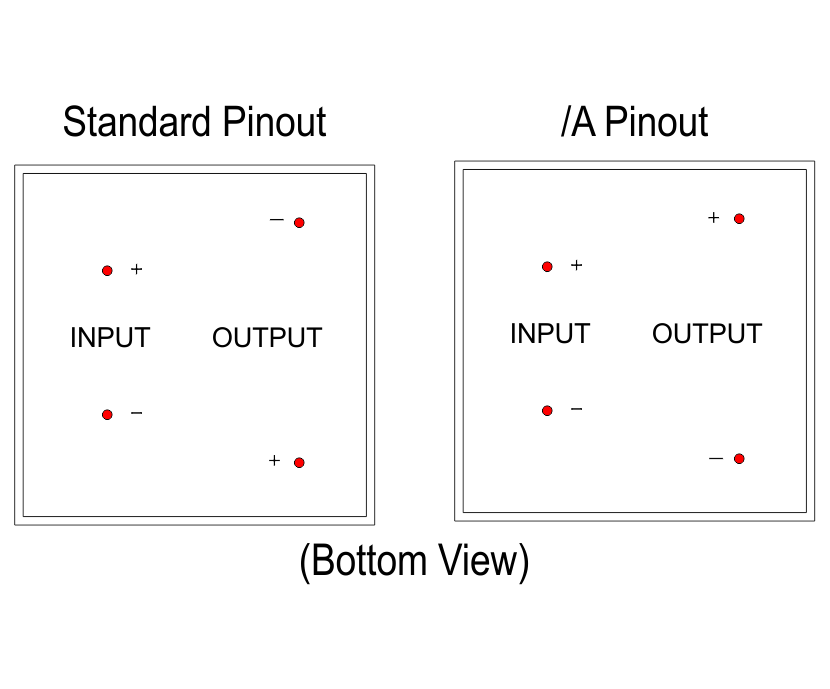

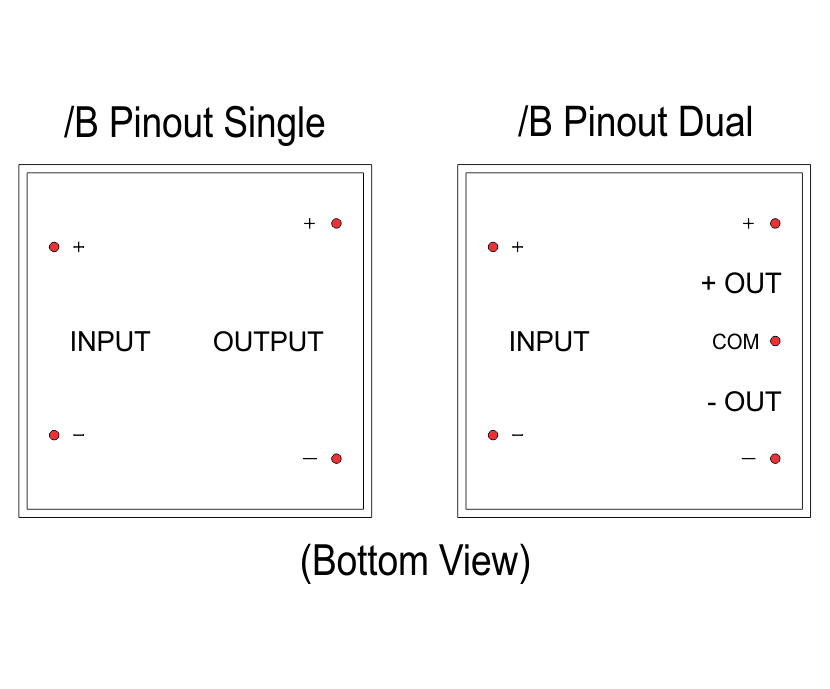

  • Industry Standard Pinouts
  • Low ESR Cap (Input Filter)
  • 3.5 kVdc Output Isolation
  • Continuous Short Circuit Protection

The P2 Series of DC/DC converters offer a 3.5 kVdc isolated high voltage output directly proportional to input voltage. They are available in alternate industry standard pinouts. All models will tolerate a short circuit indefinitely. They also include a Low ESR Cap input filter to minimize reflected ripple current.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +85 Deg C
Temp. (Storage): -40 to +100 Deg C
EMI/RFI: Shield Available
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 0-12Vdc
Voltage Accuracy: 3% / 3%
Line Regulation: Proportional
Load Regulation: 5%
Output Ripple: < 2% P-P
 Input Filter: Low ESR Cap
Efficiency: 69%
Short Circuit Protection: Continuous
Switching Frequency: 60 kHz
Isolation: 3.5 kVdc

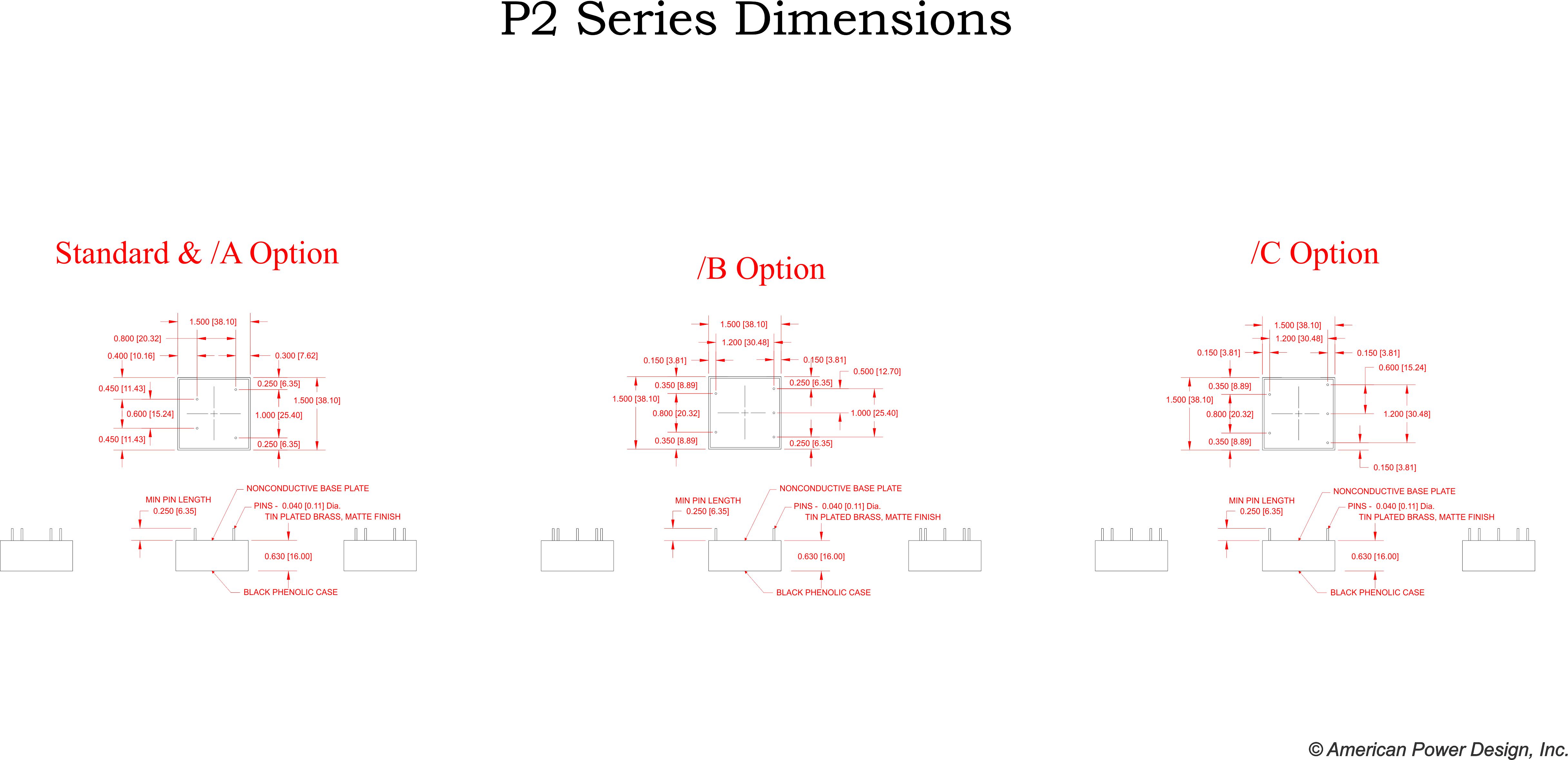

Dimensions: 1.5 x 1.5 x 0.63 [INCHES]
Weight: 1.5 Oz
 Case Material: Black Plastic
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
50.0 Vdc20 mA
20 mA		 0.0-12.0 Vdc70%2.0W
P2-D5/B
P2-D5/B/Y
100.0 Vdc20 mA 0.0-12.0 Vdc70%2.0W
P2-10
P2-10/Y
100.0 Vdc20 mA 0.0-12.0 Vdc70%2.0W
P2-10/A
P2-10/A/Y
100.0 Vdc20 mA 0.0-12.0 Vdc70%2.0W
P2-10/B
P2-10/B/Y
100.0 Vdc10 mA 0.0-12.0 Vdc70%2.0W
P2-D10/B
P2-D10/B/Y
150.0 Vdc6.6 mA
6.6 mA		 0.0-12.0 Vdc70%2.0W
P2-D15/B
P2-D15/B/Y
200.0 Vdc10 mA 0.0-12.0 Vdc70%2.0W
P2-20
P2-20/Y
200.0 Vdc10 mA 0.0-12.0 Vdc70%2.0W
P2-20/A
P2-20/A/Y
200.0 Vdc10 mA 0.0-12.0 Vdc70%2.0W
P2-20/B
P2-20/B/Y
200.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc67%2.0W
P2-D20/B
P2-D20/B/Y
250.0 Vdc4 mA
4 mA		 0.0-12.0 Vdc67%2.0W
P2-D25/B
P2-D25/B/Y
300.0 Vdc6.6 mA 0.0-12.0 Vdc69%2.0W
P2-30
P2-30/Y
300.0 Vdc6.6 mA 0.0-12.0 Vdc70%2.0W
P2-30/A
P2-30/A/Y
300.0 Vdc6.6 mA 0.0-12.0 Vdc70%2.0W
P2-30/B
P2-30/B/Y
300.0 Vdc3.3 mA
3.3 mA		 0.0-12.0 Vdc67%2.0W
P2-D30/B
P2-D30/B/Y
400.0 Vdc5 mA 0.0-12.0 Vdc70%2.0W
P2-40
P2-40/Y
400.0 Vdc5 mA 0.0-12.0 Vdc70%2.0W
P2-40/A
P2-40/A/Y
400.0 Vdc5 mA 0.0-12.0 Vdc70%2.0W
P2-40/B
P2-40/B/Y
500.0 Vdc4 mA 0.0-12.0 Vdc67%2.0W
P2-50
P2-50/Y
500.0 Vdc4 mA 0.0-12.0 Vdc67%2.0W
P2-50/A
P2-50/A/Y
500.0 Vdc4 mA 0.0-12.0 Vdc67%2.0W
P2-50/B
P2-50/B/Y
500.0 Vdc2 mA
2 mA		 0.0-12.0 Vdc67%2.0W
P2-D50/B
P2-D50/B/Y
600.0 Vdc3.3 mA 0.0-12.0 Vdc67%2.0W
P2-60
P2-60/Y
600.0 Vdc3.3 mA 0.0-12.0 Vdc67%2.0W
P2-60/A
P2-60/A/Y
600.0 Vdc3.3 mA 0.0-12.0 Vdc67%2.0W
P2-60/B
P2-60/B/Y
600.0 Vdc
600.0 Vdc		1.6 mA
1.6 mA		 0.0-12.0 Vdc65%2.0W
P2-D60/B
P2-D60/B/Y
700.0 Vdc2.8 mA 0.0-12.0 Vdc67%2.0W
P2-70/B
P2-70/B/Y
750.0 Vdc1.3 mA
1.3 mA		 0.0-12.0 Vdc65%2.0W
P2-D75/B
P2-D75/B/Y
800.0 Vdc2.5 mA 0.0-12.0 Vdc67%2.0W
P2-80
P2-80/Y
800.0 Vdc2.5 mA 0.0-12.0 Vdc67%2.0W
P2-80/A
P2-80/A/Y
800.0 Vdc2.5 mA 0.0-12.0 Vdc67%2.0W
P2-80/B
P2-80/B/Y
1000.0 Vdc2 mA 0.0-12.0 Vdc67%2.0W
P2-100
P2-100/Y
1000.0 Vdc2 mA 0.0-12.0 Vdc67%2.0W
P2-100/A
P2-100/A/Y
1000.0 Vdc2 mA 0.0-12.0 Vdc67%2.0W
P2-100/B
P2-100/B/Y
1000.0 Vdc1 mA
1 mA		 0.0-12.0 Vdc65%2.0W
P2-D100/B
P2-D100/B/Y
1200.0 Vdc1.6 mA 0.0-12.0 Vdc65%2.0W
P2-120
P2-120/Y
1200.0 Vdc1.6 mA 0.0-12.0 Vdc65%2.0W
P2-120/A
P2-120/A/Y
1200.0 Vdc1.6 mA 0.0-12.0 Vdc65%2.0W
P2-120/B
P2-120/B/Y
1250.0 Vdc0.8 mA
0.8 mA		 0.0-12.0 Vdc62%2.0W
P2-D125/B
P2-D125/B/Y
1400.0 Vdc1.4 mA 0.0-12.0 Vdc65%2.0W
P2-140
P2-140/Y
1400.0 Vdc1.4 mA 0.0-12.0 Vdc65%2.0W
P2-140/A
P2-140/A/Y
1400.0 Vdc1.4 mA 0.0-12.0 Vdc65%2.0W
P2-140/B
P2-140/B/Y
1500.0 Vdc1.3 mA 0.0-12.0 Vdc65%2.0W
P2-150
P2-150/Y
1500.0 Vdc1.3 mA 0.0-12.0 Vdc65%2.0W
P2-150/A
P2-150/A/Y
1500.0 Vdc1.3 mA 0.0-12.0 Vdc65%2.0W
P2-150/B
P2-150/B/Y
1500.0 Vdc0.66 mA
0.66 mA		 0.0-12.0 Vdc58%2.0W
P2-D150/B
P2-D150/B/Y
1600.0 Vdc1.2 mA 0.0-12.0 Vdc65%2.0W
P2-160
P2-160/Y
1600.0 Vdc1.2 mA 0.0-12.0 Vdc65%2.0W
P2-160/A
P2-160/A/Y
1600.0 Vdc1.2 mA 0.0-12.0 Vdc65%2.0W
P2-160/B
P2-160/B/Y
1800.0 Vdc1.1 mA 0.0-12.0 Vdc65%2.0W
P2-180
P2-180/Y
1800.0 Vdc1.1 mA 0.0-12.0 Vdc65%2.0W
P2-180/A
P2-180/A/Y
1800.0 Vdc1.1 mA 0.0-12.0 Vdc65%2.0W
P2-180/B
P2-180/B/Y
2000.0 Vdc1 mA 0.0-12.0 Vdc65%2.0W
P2-200
P2-200/Y
2000.0 Vdc1 mA 0.0-12.0 Vdc65%2.0W
P2-200/A
P2-200/A/Y
2000.0 Vdc1 mA 0.0-12.0 Vdc65%2.0W
P2-200/B
P2-200/B/Y
2000.0 Vdc0.5 mA
0.5 mA		 0.0-12.0 Vdc55%2.0W
P2-D200/B
P2-D200/B/Y
2200.0 Vdc0.9 mA 0.0-12.0 Vdc65%2.0W
P2-220
P2-220/Y
2200.0 Vdc0.9 mA 0.0-12.0 Vdc65%2.0W
P2-220/A
P2-220/A/Y
2200.0 Vdc0.9 mA 0.0-12.0 Vdc65%2.0W
P2-220/B
P2-220/B/Y
2400.0 Vdc0.83 mA 0.0-12.0 Vdc65%2.0W
P2-240
P2-240/Y
2400.0 Vdc0.83 mA 0.0-12.0 Vdc65%2.0W
P2-240/A
P2-240/A/Y
2400.0 Vdc0.83 mA 0.0-12.0 Vdc65%2.0W
P2-240/B
P2-240/B/Y
2500.0 Vdc0.8 mA 0.0-12.0 Vdc62%2.0W
P2-250
P2-250/Y
2500.0 Vdc0.8 mA 0.0-12.0 Vdc62%2.0W
P2-250/A
P2-250/A/Y
2500.0 Vdc0.8 mA 0.0-12.0 Vdc62%2.0W
P2-250/B
P2-250/B/Y
2500.0 Vdc0.4 mA
0.4 mA		 0.0-12.0 Vdc52%2.0W
P2-D250/C
P2-D250/C/Y
2600.0 Vdc0.77 mA 0.0-12.0 Vdc61%2.0W
P2-260
P2-260/Y
2600.0 Vdc0.77 mA 0.0-12.0 Vdc61%2.0W
P2-260/A
P2-260/A/Y
2600.0 Vdc0.77 mA 0.0-12.0 Vdc61%2.0W
P2-260/B
P2-260/B/Y
2800.0 Vdc0.71 mA 0.0-12.0 Vdc60%2.0W
P2-280
P2-280/Y
2800.0 Vdc0.71 mA 0.0-12.0 Vdc60%2.0W
P2-280/A
P2-280/A/Y
2800.0 Vdc0.71 mA 0.0-12.0 Vdc60%2.0W
P2-280/B
P2-280/B/Y
3000.0 Vdc0.66 mA 0.0-12.0 Vdc58%2.0W
P2-300
P2-300/Y
3000.0 Vdc0.66 mA 0.0-12.0 Vdc58%2.0W
P2-300/A
P2-300/A/Y
3000.0 Vdc0.66 mA 0.0-12.0 Vdc58%2.0W
P2-300/B
P2-300/B/Y
3000.0 Vdc0.33 mA 0.0-12.0 Vdc52%0.0W
P2-D300/C
P2-D300/C/Y
4000.0 Vdc0.5 mA 0.0-12.0 Vdc55%2.0W
P2-400
P2-400/Y
4000.0 Vdc0.5 mA 0.0-12.0 Vdc55%2.0W
P2-400/A
P2-400/A/Y
4000.0 Vdc0.5 mA 0.0-12.0 Vdc55%2.0W
P2-400/B
P2-400/B/Y
5000.0 Vdc0.4 mA 0.0-12.0 Vdc52%2.0W
P2-500/C
P2-500/C/Y
6000.0 Vdc0.33 mA 0.0-12.0 Vdc52%2.0W
P2-600/C
P2-600/C/Y
