J5 Series 5.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • + or - Outputs to 6000Vdc
  • Dual Outputs
  • High Power Density

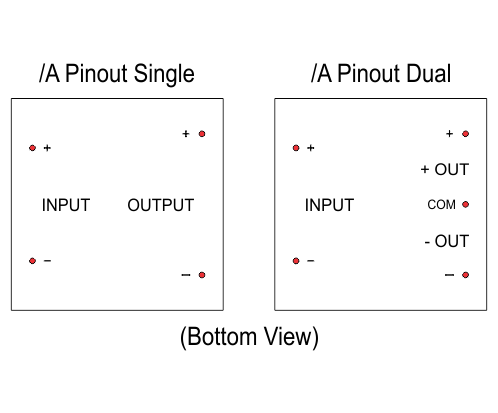

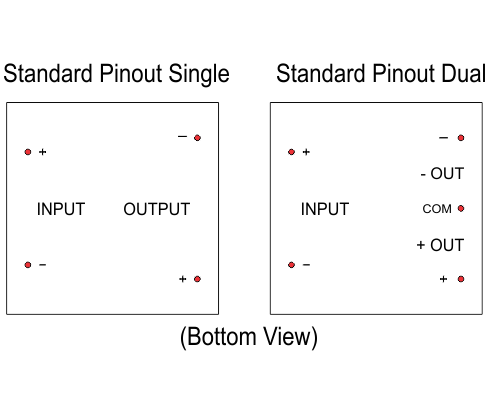

  • Industry Standard Pinouts
  • Low ESR Cap (Input Filter)
  • 3500 Vdc Output Isolation
  • Continuous Short Circuit Protection

The J5 Series of DC/DC converters offer a 3500 Vdc isolated high voltage output directly proportional to input voltage. They are available in alternate industry standard pinouts. All models will tolerate a short circuit indefinitely. They also include a Low ESR Cap input filter to minimize reflected ripple current.
Temp. (Stability): 0.05%/Deg C
Temp. (Operating Case): -25 to +85 Deg C
Temp. (Storage): -40 to +100 Deg C
EMI/RFI: Shield Available
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 0V-12Vdc
Voltage Accuracy: 3% / 3%
Line Regulation: Proportional
Load Regulation: 10%
Output Ripple: <2% P-P
 Input Filter: Low ESR Cap
Efficiency: 65%
Short Circuit Protection: Continuous
Switching Frequency: 80kHz
Isolation: 3500 Vdc
Dimensions: 1.5 x 1.5 x 0.63 [INCHES]
Weight: 1.5Oz
 Case Material: Black Plastic
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
50.0 Vdc50 mA
50 mA		 0.0-12.0 Vdc65%5.0W
J5-D5
J5-D5/Y
50.0 Vdc50 mA
50 mA		 0.0-12.0 Vdc65%5.0W
J5-D5/A
J5-D5/A/Y
100.0 Vdc50 mA 0.0-12.0 Vdc65%5.0W
J5-10
J5-10/Y
100.0 Vdc50 mA 0.0-12.0 Vdc65%5.0W
J5-10/A
J5-10/A/Y
100.0 Vdc25 mA
25 mA		 0.0-12.0 Vdc65%5.0W
J5-D10
J5-D10/Y
100.0 Vdc25 mA
25 mA		 0.0-12.0 Vdc65%5.0W
J5-D10/A
J5-D10/A/Y
150.0 Vdc16 mA
16 mA		 0.0-12.0 Vdc65%5.0W
J5-D15
J5-D15/Y
150.0 Vdc16 mA
16 mA		 0.0-12.0 Vdc65%5.0W
J5-D15/A
J5-D15/A/Y
200.0 Vdc25 mA 0.0-12.0 Vdc65%5.0W
J5-20
J5-20/Y
200.0 Vdc25 mA 0.0-12.0 Vdc65%5.0W
J5-20/A
J5-20/A/Y
200.0 Vdc12.5 mA
12.5 mA		 0.0-12.0 Vdc65%5.0W
J5-D20
J5-D20/Y
200.0 Vdc12.5 mA
12.5 mA		 0.0-12.0 Vdc65%5.0W
J5-D20/A
J5-D20/A/Y
250.0 Vdc10 mA
10 mA		 0.0-12.0 Vdc65%5.0W
J5-D25
J5-D25/Y
250.0 Vdc10 mA
10 mA		 0.0-12.0 Vdc65%5.0W
J5-D25/A
J5-D25/A/Y
300.0 Vdc16 mA 0.0-12.0 Vdc65%5.0W
J5-30
J5-30/Y
300.0 Vdc16 mA 0.0-12.0 Vdc65%5.0W
J5-30/A
J5-30/A/Y
300.0 Vdc8.3 mA
8.3 mA		 0.0-12.0 Vdc65%5.0W
J5-D30
J5-D30/Y
300.0 Vdc8.3 mA
8.3 mA		 0.0-12.0 Vdc65%5.0W
J5-D30/A
J5-D30/A/Y
400.0 Vdc12.5 mA 0.0-12.0 Vdc65%5.0W
J5-40
J5-40/Y
400.0 Vdc12.5 mA 0.0-12.0 Vdc65%5.0W
J5-40/A
J5-40/A/Y
500.0 Vdc10 mA 0.0-12.0 Vdc65%5.0W
J5-50
J5-50/Y
500.0 Vdc10 mA 0.0-12.0 Vdc65%5.0W
J5-50/A
J5-50/A/Y
500.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc65%5.0W
J5-D50
J5-D50/Y
500.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc65%5.0W
J5-D50/A
J5-D50/A/Y
600.0 Vdc8.3 mA 0.0-12.0 Vdc65%5.0W
J5-60
J5-60/Y
600.0 Vdc8.3 mA 0.0-12.0 Vdc65%5.0W
J5-60/A
J5-60/A/Y
600.0 Vdc4.2 mA
4.2 mA		 0.0-12.0 Vdc65%5.0W
J5-D60
J5-D60/Y
600.0 Vdc4.2 mA
4.2 mA		 0.0-12.0 Vdc65%5.0W
J5-D60/A
J5-D60/A/Y
750.0 Vdc3.3 mA
3.3 mA		 0.0-12.0 Vdc65%5.0W
J5-D75
J5-D75/Y
750.0 Vdc3.3 mA
3.3 mA		 0.0-12.0 Vdc65%5.0W
J5-D75/A
J5-D75/A/Y
800.0 Vdc6.3 mA 0.0-12.0 Vdc65%5.0W
J5-80
J5-80/Y
800.0 Vdc6.3 mA 0.0-12.0 Vdc65%5.0W
J5-80/A
J5-80/A/Y
1000.0 Vdc5 mA 0.0-12.0 Vdc65%5.0W
J5-100
J5-100/Y
1000.0 Vdc5 mA 0.0-12.0 Vdc65%5.0W
J5-100/A
J5-100/A/Y
1000.0 Vdc2.5 mA
2.5 mA		 0.0-12.0 Vdc65%5.0W
J5-D100
J5-D100/Y
1000.0 Vdc2.5 mA
2.5 mA		 0.0-12.0 Vdc65%5.0W
J5-D100/A
J5-D100/A/Y
1200.0 Vdc4.2 mA 0.0-12.0 Vdc65%5.0W
J5-120
J5-120/Y
1200.0 Vdc4.2 mA 0.0-12.0 Vdc65%5.0W
J5-120/A
J5-120/A/Y
1250.0 Vdc2 mA
2 mA		 0.0-12.0 Vdc65%5.0W
J5-D125
J5-D125/Y
1250.0 Vdc2 mA
2 mA		 0.0-12.0 Vdc65%5.0W
J5-D125/A
J5-D125/A/Y
1400.0 Vdc3.6 mA 0.0-12.0 Vdc65%5.0W
J5-140
J5-140/Y
1400.0 Vdc3.6 mA 0.0-12.0 Vdc65%5.0W
J5-140/A
J5-140/A/Y
1500.0 Vdc3.3 mA 0.0-12.0 Vdc65%5.0W
J5-150
J5-150/Y
1500.0 Vdc3.3 mA 0.0-12.0 Vdc65%5.0W
J5-150/A
J5-150/A/Y
1500.0 Vdc1.7 mA
1.7 mA		 0.0-12.0 Vdc65%5.0W
J5-D150
J5-D150/Y
1500.0 Vdc1.7 mA
1.7 mA		 0.0-12.0 Vdc65%5.0W
J5-D150/A
J5-D150/A/Y
1600.0 Vdc3.1 mA 0.0-12.0 Vdc65%5.0W
J5-160
J5-160/Y
1600.0 Vdc3.1 mA 0.0-12.0 Vdc65%5.0W
J5-160/A
J5-160/A/Y
1800.0 Vdc2.8 mA 0.0-12.0 Vdc65%5.0W
J5-180
J5-180/Y
1800.0 Vdc2.8 mA 0.0-12.0 Vdc65%5.0W
J5-180/A
J5-180/A/Y
2000.0 Vdc2.5 mA 0.0-12.0 Vdc65%5.0W
J5-200
J5-200/Y
2000.0 Vdc2.5 mA 0.0-12.0 Vdc65%5.0W
J5-200/A
J5-200/A/Y
2000.0 Vdc1.25 mA
1.25 mA		 0.0-12.0 Vdc65%5.0W
J5-D200
J5-D200/Y
2000.0 Vdc1.25 mA
1.25 mA		 0.0-12.0 Vdc65%5.0W
J5-D200/A
J5-D200/A/Y
2200.0 Vdc2.3 mA 0.0-12.0 Vdc65%5.0W
J5-220
J5-220/Y
2200.0 Vdc2.3 mA 0.0-12.0 Vdc65%5.0W
J5-220/A
J5-220/A/Y
2400.0 Vdc2.1 mA 0.0-12.0 Vdc65%5.0W
J5-240
J5-240/Y
2400.0 Vdc2.1 mA 0.0-12.0 Vdc65%5.0W
J5-240/A
J5-240/A/Y
2500.0 Vdc2 mA 0.0-12.0 Vdc65%5.0W
J5-250
J5-250/Y
2500.0 Vdc2 mA 0.0-12.0 Vdc65%5.0W
J5-250/A
J5-250/A/Y
2500.0 Vdc1 mA
1 mA		 0.0-12.0 Vdc65%5.0W
J5-D250
J5-D250/Y
2500.0 Vdc1 mA
1 mA		 0.0-12.0 Vdc65%5.0W
J5-D250/A
J5-D250/A/Y
2600.0 Vdc1.9 mA 0.0-12.0 Vdc65%5.0W
J5-260
J5-260/Y
2600.0 Vdc1.9 mA 0.0-12.0 Vdc65%5.0W
J5-260/A
J5-260/A/Y
2800.0 Vdc1.8 mA 0.0-12.0 Vdc65%5.0W
J5-280
J5-280/Y
2800.0 Vdc1.8 mA 0.0-12.0 Vdc65%5.0W
J5-280/A
J5-280/A/Y
3000.0 Vdc1.7 mA 0.0-12.0 Vdc65%5.0W
J5-300
J5-300/Y
3000.0 Vdc1.7 mA 0.0-12.0 Vdc65%5.0W
J5-300/A
J5-300/A/Y
3000.0 Vdc0.83 mA
0.83 mA		 0.0-12.0 Vdc65%5.0W
J5-D300
J5-D300/Y
3000.0 Vdc0.83 mA
0.83 mA		 0.0-12.0 Vdc65%5.0W
J5-D300/A
J5-D300/A/Y
4000.0 Vdc1.25 mA 0.0-12.0 Vdc65%5.0W
J5-400
J5-400/Y
4000.0 Vdc1.25 mA 0.0-12.0 Vdc65%5.0W
J5-400/A
J5-400/A/Y
5000.0 Vdc1 mA 0.0-12.0 Vdc65%5.0W
J5-500
J5-500/Y
5000.0 Vdc1 mA 0.0-12.0 Vdc65%5.0W
J5-500/A
J5-500/A/Y
6000.0 Vdc0.83 mA 0.0-12.0 Vdc65%5.0W
J5-600
J5-600/Y
6000.0 Vdc0.83 mA 0.0-12.0 Vdc65%5.0W
J5-600/A
J5-600/A/Y



Full Product Specification
PDF format

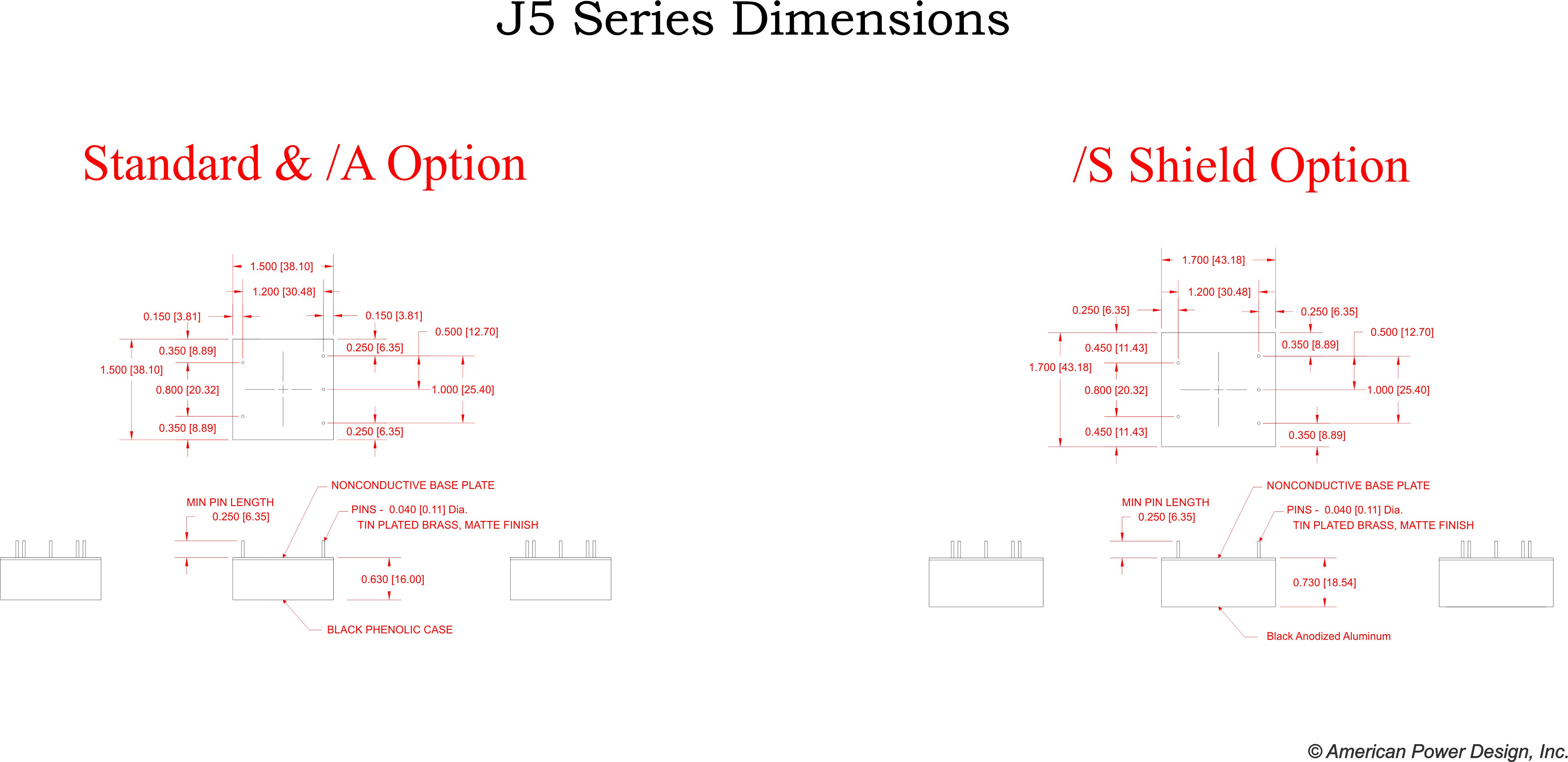

Mechanical Drawings
PDF format
Download in DXF format
