P5 Series 5.0 Watt

High Voltage DC/DC Converters

General Specs
Electrical Specs
Physical Specs
Model Listing

	Features Customer Selects Output Voltage + or - Outputs to 4000Vdc Dual Outputs Low Power Consumption Industry Standard Pinouts LC Network (Input Filter) 5 kVdc Output Isolation Continuous Short Circuit Protection
The P5 Series of DC/DC converters offer a 5 kVdc isolated high voltage output directly proportional to input voltage. They are available in alternate industry standard pinouts. All models will tolerate a short circuit indefinitely. They also include a LC Network input filter to minimize reflected ripple current.

Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -20 to +85 Deg C
Temp. (Storage): -55 to +100 Deg C
EMI/RFI: Shield Available
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y

Input Ranges: 4-12Vdc
Voltage Accuracy: 10%
Line Regulation: Proportional
Load Regulation: 10%
Output Ripple: 1%

Input Filter: LC Network
Efficiency: 75%
Short Circuit Protection: Continuous
Switching Frequency: 60 kHz
Isolation: 5 kVdc

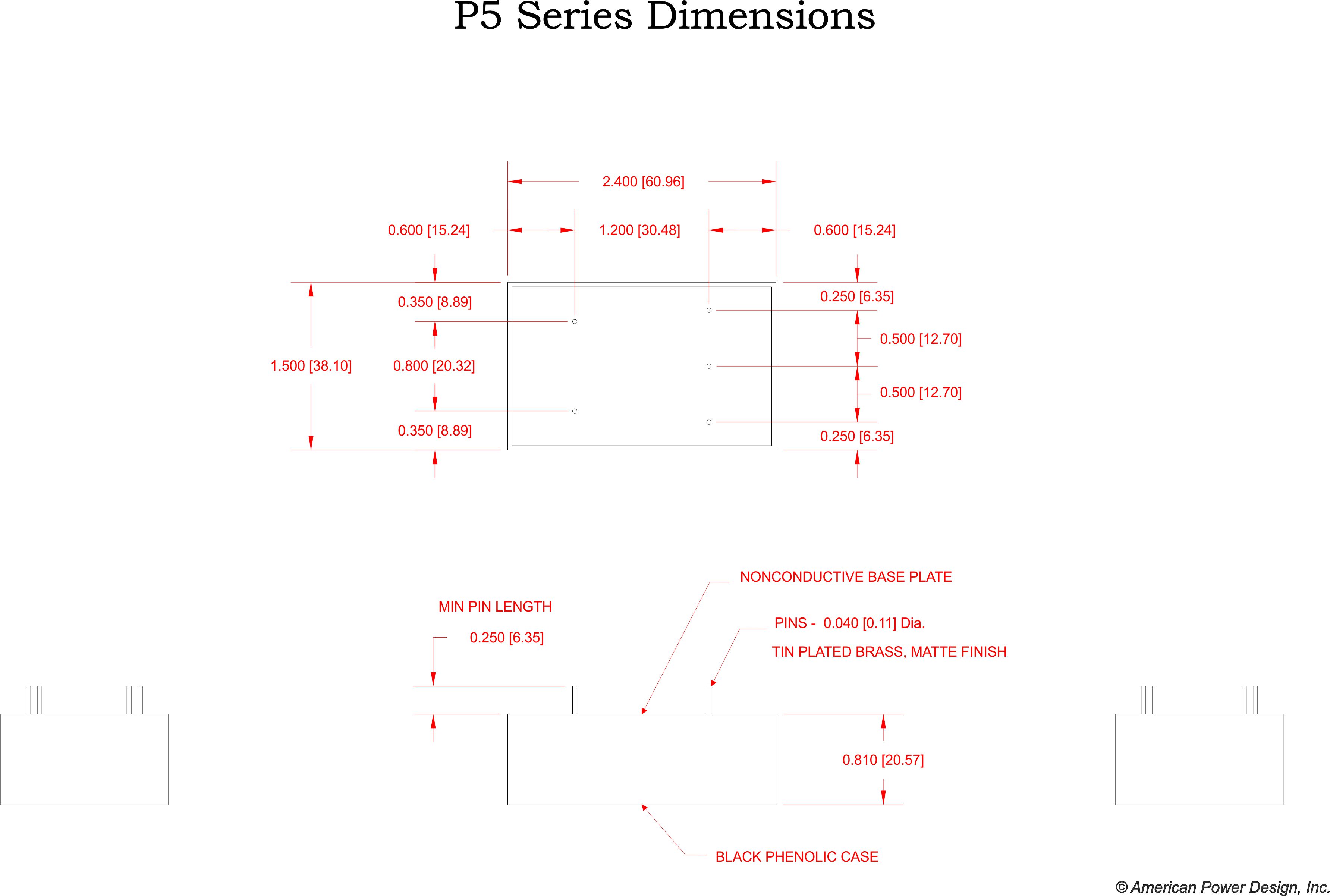

Dimensions: 1.5 x 2.4 x 0.81 [INCHES]
Weight: 3.1 Oz

Case Material: Black Plastic

Models Currently In Production

Output Voltage

Current

Input Voltage

Efficiency

Power

Model Number

100.0 Vdc

50 mA

4.0-12.0 Vdc

75%

5.0W

P5-10
P5-10/Y

100.0 Vdc

50 mA

0.0-12.0 Vdc

75%

5.0W

P5-10/A
P5-10/A/Y

200.0 Vdc

25 mA

4.0-12.0 Vdc

75%

5.0W

P5-20
P5-20/Y

200.0 Vdc

25 mA

4.0-12.0 Vdc

75%

5.0W

P5-20/A
P5-20/A/Y

300.0 Vdc

17 mA

4.0-12.0 Vdc

75%

5.0W

P5-30
P5-30/Y

300.0 Vdc

17 mA

4.0-12.0 Vdc

75%

5.0W

P5-30/A
P5-30/A/Y

500.0 Vdc

10 mA

4.0-12.0 Vdc

73%

5.0W

P5-50
P5-50/Y

500.0 Vdc

10 mA

4.0-12.0 Vdc

75%

5.0W

P5-50/A
P5-50/A/Y

800.0 Vdc

6.3 mA

4.0-12.0 Vdc

75%

5.0W

P5-80
P5-80/Y

1000.0 Vdc

5 mA

4.0-12.0 Vdc

75%

5.0W

P5-100
P5-100/Y

1000.0 Vdc

5 mA

4.0-12.0 Vdc

75%

5.0W

P5-100/A
P5-100/A/Y

1200.0 Vdc

4.2 mA

4.0-12.0 Vdc

75%

5.0W

P5-120
P5-120/Y

1200.0 Vdc

4.2 mA

4.0-12.0 Vdc

75%

5.0W

P5-120/A
P5-120/A/Y

1300.0 Vdc

3.8 mA

4.0-12.0 Vdc

75%

5.0W

P5-130
P5-130/Y

1300.0 Vdc

3.8 mA

4.0-12.0 Vdc

75%

5.0W

P5-130/A
P5-130/A/Y

1500.0 Vdc

3.3 mA

4.0-12.0 Vdc

74%

5.0W

P5-150
P5-150/Y

1500.0 Vdc

3.3 mA

4.0-12.0 Vdc

75%

5.0W

P5-150/A
P5-150/A/Y

2000.0 Vdc

2.5 mA

4.0-12.0 Vdc

75%

5.0W

P5-200
P5-200/Y

2000.0 Vdc

2.5 mA

4.0-12.0 Vdc

75%

5.0W

P5-200/A
P5-200/A/Y

2200.0 Vdc

2.3 mA

4.0-12.0 Vdc

75%

5.0W

P5-220
P5-220/Y

2200.0 Vdc

2.3 mA

4.0-12.0 Vdc

75%

5.0W

P5-220/A
P5-220/A/Y

2300.0 Vdc

2.2 mA

4.0-12.0 Vdc

75%

5.0W

P5-230
P5-230/Y

2300.0 Vdc

2.2 mA

4.0-12.0 Vdc

75%

5.0W

P5-230/A
P5-230/A/Y

2500.0 Vdc

2 mA

4.0-12.0 Vdc

75%

5.0W

P5-250
P5-250/Y

2500.0 Vdc

2 mA

4.0-12.0 Vdc

75%

5.0W

P5-250/A
P5-250/A/Y

3000.0 Vdc

1.7 mA

4.0-12.0 Vdc

75%

5.0W

P5-300
P5-300/Y

3000.0 Vdc

1.7 mA

4.0-12.0 Vdc

75%

5.0W

P5-300/A
P5-300/A/Y

3200.0 Vdc

1.6 mA

4.0-12.0 Vdc

75%

5.0W

P5-320
P5-320/Y

3200.0 Vdc

1.6 mA

4.0-12.0 Vdc

75%

5.0W

P5-320/A
P5-320/A/Y

3300.0 Vdc

1.5 mA

4.0-12.0 Vdc

75%

5.0W

P5-330
P5-330/Y

3300.0 Vdc

1.5 mA

4.0-12.0 Vdc

75%

5.0W

P5-330/A
P5-330/A/Y

3500.0 Vdc

1.4 mA

4.0-12.0 Vdc

75%

5.0W

P5-350
P5-350/Y

3500.0 Vdc

1.4 mA

4.0-12.0 Vdc

75%

5.0W

P5-350/A
P5-350/A/Y

4000.0 Vdc

1.3 mA

4.0-12.0 Vdc

61%

5.0W

P5-400
P5-400/Y

4000.0 Vdc

1.3 mA

4.0-12.0 Vdc

75%

5.0W

P5-400/A
P5-400/A/Y
