P1 Series 1.0 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • + or - Outputs to 6000Vdc
  • Dual Outputs
  • Low Power Consumption
  • Industry Standard Pinouts
  • Low ESR Cap (Input Filter)
  • 3.5 kVdc Output Isolation
  • Continuous Short Circuit Protection

The P1 Series of DC/DC converters offer a 3.5 kVdc isolated high voltage output directly proportional to input voltage. They are available in alternate industry standard pinouts. All models will tolerate a short circuit indefinitely. They also include a Low ESR Cap input filter to minimize reflected ripple current.
Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +85 Deg C
Temp. (Storage): -40 to +100 Deg C
EMI/RFI: Shield Available
Derating: None
Cooling: Free-Air Convection

* All models designed to meet IEC/UL/CSA/EN 62368

* * For RoHS Compliant part, add suffix /Y
Input Ranges: 0-12Vdc
Voltage Accuracy: 3% / 3%
Line Regulation: Proportional
Load Regulation: 10%
Output Ripple: < 1% P-P
 Input Filter: Low ESR Cap
Efficiency: 67%
Short Circuit Protection: Continuous
Switching Frequency: 60 kHz
Isolation: 3.5 kVdc
Dimensions: 1.5 x 1.5 x 0.63 [INCHES]
Weight: 1.5 Oz
 Case Material: Black Plastic
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
50.0 Vdc10 mA
10 mA		 0.0-12.0 Vdc56%1.0W
P1-D5/B
P1-D5/B/Y
100.0 Vdc10 mA 0.0-12.0 Vdc56%1.0W
P1-10
P1-10/Y
100.0 Vdc10 mA 0.0-12.0 Vdc56%1.0W
P1-10/A
P1-10/A/Y
100.0 Vdc10 mA 0.0-12.0 Vdc56%1.0W
P1-10/B
P1-10/B/Y
100.0 Vdc5 mA
5 mA		 0.0-12.0 Vdc56%1.0W
P1-D10/B
P1-D10/B/Y
150.0 Vdc3 mA
3 mA		 0.0-12.0 Vdc67%1.0W
P1-D15/B
P1-D15/B/Y
200.0 Vdc5 mA 0.0-12.0 Vdc56%1.0W
P1-20
P1-20/Y
200.0 Vdc5 mA 0.0-12.0 Vdc56%1.0W
P1-20/A
P1-20/A/Y
200.0 Vdc5 mA 0.0-12.0 Vdc56%1.0W
P1-20/B
P1-20/B/Y
200.0 Vdc2.5 mA
2.5 mA		 0.0-12.0 Vdc67%1.0W
P1-D20/B
P1-D20/B/Y
250.0 Vdc2 mA
2 mA		 0.0-12.0 Vdc67%1.0W
P1-D25/B
P1-D25/B/Y
300.0 Vdc3 mA 0.0-12.0 Vdc67%1.0W
P1-30
P1-30/Y
300.0 Vdc3 mA 0.0-12.0 Vdc67%1.0W
P1-30/A
P1-30/A/Y
300.0 Vdc3 mA 0.0-12.0 Vdc67%1.0W
P1-30/B
P1-30/B/Y
300.0 Vdc1.7 mA
1.7 mA		 0.0-12.0 Vdc67%1.0W
P1-D30/B
P1-D30/B/Y
400.0 Vdc2.5 mA 0.0-12.0 Vdc67%1.0W
P1-40
P1-40/Y
400.0 Vdc2.5 mA 0.0-12.0 Vdc67%1.0W
P1-40/A
P1-40/A/Y
400.0 Vdc2.5 mA 0.0-12.0 Vdc67%1.0W
P1-40/B
P1-40/B/Y
500.0 Vdc2 mA 0.0-12.0 Vdc67%1.0W
P1-50
P1-50/Y
500.0 Vdc2 mA 0.0-12.0 Vdc67%1.0W
P1-50/A
P1-50/A/Y
500.0 Vdc2 mA 0.0-12.0 Vdc67%1.0W
P1-50/B
P1-50/B/Y
500.0 Vdc2 mA 0.0-12.0 Vdc67%1.0W
P1-50/C
P1-50/C/Y
500.0 Vdc1 mA
1 mA		 0.0-12.0 Vdc67%1.0W
P1-D50/B
P1-D50/B/Y
600.0 Vdc1.7 mA 0.0-12.0 Vdc67%1.0W
P1-60
P1-60/Y
600.0 Vdc1.7 mA 0.0-12.0 Vdc67%1.0W
P1-60/A
P1-60/A/Y
600.0 Vdc1.7 mA 0.0-12.0 Vdc67%1.0W
P1-60/B
P1-60/B/Y
600.0 Vdc0.84 mA
0.84 mA		 0.0-12.0 Vdc67%1.0W
P1-D60/B
P1-D60/B/Y
750.0 Vdc0.66 mA
0.66 mA		 0.0-12.0 Vdc67%1.0W
P1-D75/B
P1-D75/B/Y
800.0 Vdc1.3 mA 0.0-12.0 Vdc67%1.0W
P1-80
P1-80/Y
800.0 Vdc1.3 mA 0.0-12.0 Vdc67%1.0W
P1-80/A
P1-80/A/Y
800.0 Vdc1.3 mA 0.0-12.0 Vdc67%1.0W
P1-80/B
P1-80/B/Y
800.0 Vdc1.3 mA 0.0-12.0 Vdc67%1.0W
P1-80/C
P1-80/C/Y
1000.0 Vdc1 mA 0.0-12.0 Vdc67%1.0W
P1-100
P1-100/Y
1000.0 Vdc1 mA 0.0-12.0 Vdc67%1.0W
P1-100/A
P1-100/A/Y
1000.0 Vdc1 mA 0.0-12.0 Vdc67%1.0W
P1-100/B
P1-100/B/Y
1000.0 Vdc1 mA 0.0-12.0 Vdc67%1.0W
P1-100/C
P1-100/C/Y
1000.0 Vdc0.5 mA
0.5 mA		 0.0-12.0 Vdc64%1.0W
P1-D100/B
P1-D100/B/Y
1200.0 Vdc0.84 mA 0.0-12.0 Vdc67%1.0W
P1-120
P1-120/Y
1200.0 Vdc0.84 mA 0.0-12.0 Vdc67%1.0W
P1-120/A
P1-120/A/Y
1200.0 Vdc0.84 mA 0.0-12.0 Vdc67%1.0W
P1-120/B
P1-120/B/Y
1250.0 Vdc0.8 mA 0.0-12.0 Vdc67%1.0W
P1-125
P1-125/Y
1250.0 Vdc0.8 mA 0.0-12.0 Vdc67%1.0W
P1-125/B
P1-125/B/Y
1250.0 Vdc0.8 mA 0.0-12.0 Vdc67%1.0W
P1-125/BN
P1-125/BN/Y
1250.0 Vdc0.8 mA 0.0-12.0 Vdc67%1.0W
P1-125/C
P1-125/C/Y
1250.0 Vdc0.4 mA
0.4 mA		 0.0-12.0 Vdc64%1.0W
P1-D125/B
P1-D125/B/Y
1400.0 Vdc0.71 mA 0.0-12.0 Vdc67%1.0W
P1-140
P1-140/Y
1400.0 Vdc0.71 mA 0.0-12.0 Vdc67%1.0W
P1-140/A
P1-140/A/Y
1400.0 Vdc0.71 mA 0.0-12.0 Vdc67%1.0W
P1-140/B
P1-140/B/Y
1500.0 Vdc0.66 mA 0.0-12.0 Vdc67%1.0W
P1-150
P1-150/Y
1500.0 Vdc0.66 mA 0.0-12.0 Vdc67%1.0W
P1-150/A
P1-150/A/Y
1500.0 Vdc0.66 mA 0.0-12.0 Vdc67%1.0W
P1-150/B
P1-150/B/Y
1500.0 Vdc34 mA
34 mA		 0.0-12.0 Vdc64%1.0W
P1-D150/B
P1-D150/B/Y
1600.0 Vdc0.63 mA 0.0-12.0 Vdc64%1.0W
P1-160
P1-160/Y
1600.0 Vdc0.63 mA 0.0-12.0 Vdc64%1.0W
P1-160/A
P1-160/A/Y
1600.0 Vdc0.63 mA 0.0-12.0 Vdc64%1.0W
P1-160/B
P1-160/B/Y
1800.0 Vdc0.56 mA 0.0-12.0 Vdc64%1.0W
P1-180
P1-180/Y
1800.0 Vdc0.56 mA 0.0-12.0 Vdc64%1.0W
P1-180/A
P1-180/A/Y
1800.0 Vdc0.56 mA 0.0-12.0 Vdc64%1.0W
P1-180/B
P1-180/B/Y
2000.0 Vdc0.5 mA 0.0-12.0 Vdc64%1.0W
P1-200
P1-200/Y
2000.0 Vdc0.5 mA 0.0-12.0 Vdc64%1.0W
P1-200/A
P1-200/A/Y
2000.0 Vdc0.5 mA 0.0-12.0 Vdc64%1.0W
P1-200/B
P1-200/B/Y
2000.0 Vdc0.25 mA
0.25 mA		 0.0-12.0 Vdc64%1.0W
P1-D200/B
P1-D200/B/Y
2200.0 Vdc0.45 mA 0.0-12.0 Vdc64%1.0W
P1-220
P1-220/Y
2200.0 Vdc0.45 mA 0.0-12.0 Vdc64%1.0W
P1-220/A
P1-220/A/Y
2200.0 Vdc0.45 mA 0.0-12.0 Vdc64%1.0W
P1-220/B
P1-220/B/Y
2400.0 Vdc0.42 mA 0.0-12.0 Vdc64%1.0W
P1-240
P1-240/Y
2400.0 Vdc0.42 mA 0.0-12.0 Vdc64%1.0W
P1-240/A
P1-240/A/Y
2400.0 Vdc0.42 mA 0.0-12.0 Vdc64%1.0W
P1-240/B
P1-240/B/Y
2500.0 Vdc0.4 mA 0.0-12.0 Vdc64%1.0W
P1-250
P1-250/Y
2500.0 Vdc0.4 mA 0.0-12.0 Vdc64%1.0W
P1-250/A
P1-250/A/Y
2500.0 Vdc0.4 mA 0.0-12.0 Vdc64%1.0W
P1-250/B
P1-250/B/Y
2500.0 Vdc0.4 mA 0.0-12.0 Vdc64%1.0W
P1-250/C
P1-250/C/Y
2500.0 Vdc0.2 mA
0.2 mA		 0.0-12.0 Vdc56%1.0W
P1-D250/C
P1-D250/C/Y
2600.0 Vdc0.38 mA 0.0-12.0 Vdc64%1.0W
P1-260
P1-260/Y
2600.0 Vdc0.38 mA 0.0-12.0 Vdc64%1.0W
P1-260/A
P1-260/A/Y
2600.0 Vdc0.38 mA 0.0-12.0 Vdc64%1.0W
P1-260/B
P1-260/B/Y
2800.0 Vdc0.36 mA 0.0-12.0 Vdc64%1.0W
P1-280
P1-280/Y
2800.0 Vdc0.36 mA 0.0-12.0 Vdc64%1.0W
P1-280/A
P1-280/A/Y
2800.0 Vdc0.36 mA 0.0-12.0 Vdc64%1.0W
P1-280/B
P1-280/B/Y
3000.0 Vdc0.34 mA 0.0-12.0 Vdc64%1.0W
P1-300
P1-300/Y
3000.0 Vdc0.34 mA 0.0-12.0 Vdc64%1.0W
P1-300/A
P1-300/A/Y
3000.0 Vdc0.34 mA 0.0-12.0 Vdc64%1.0W
P1-300/B
P1-300/B/Y
3000.0 Vdc0.34 mA 0.0-12.0 Vdc64%1.0W
P1-300/C
P1-300/C/Y
3000.0 Vdc0.166 mA
0.166 mA		 0.0-12.0 Vdc48%1.0W
P1-D300/C
P1-D300/C/Y
4000.0 Vdc0.25 mA 0.0-12.0 Vdc64%1.0W
P1-400
P1-400/Y
4000.0 Vdc0.25 mA 0.0-12.0 Vdc64%1.0W
P1-400/A
P1-400/A/Y
4000.0 Vdc0.25 mA 0.0-12.0 Vdc64%1.0W
P1-400/B
P1-400/B/Y
4000.0 Vdc0.25 mA 0.0-12.0 Vdc64%1.0W
P1-400/C
P1-400/C/Y
5000.0 Vdc0.2 mA 0.0-12.0 Vdc56%1.0W
P1-500/C
P1-500/C/Y
6000.0 Vdc0.166 mA 0.0-12.0 Vdc48%1.0W
P1-600/C
P1-600/C/Y



Full Product Specification
PDF format

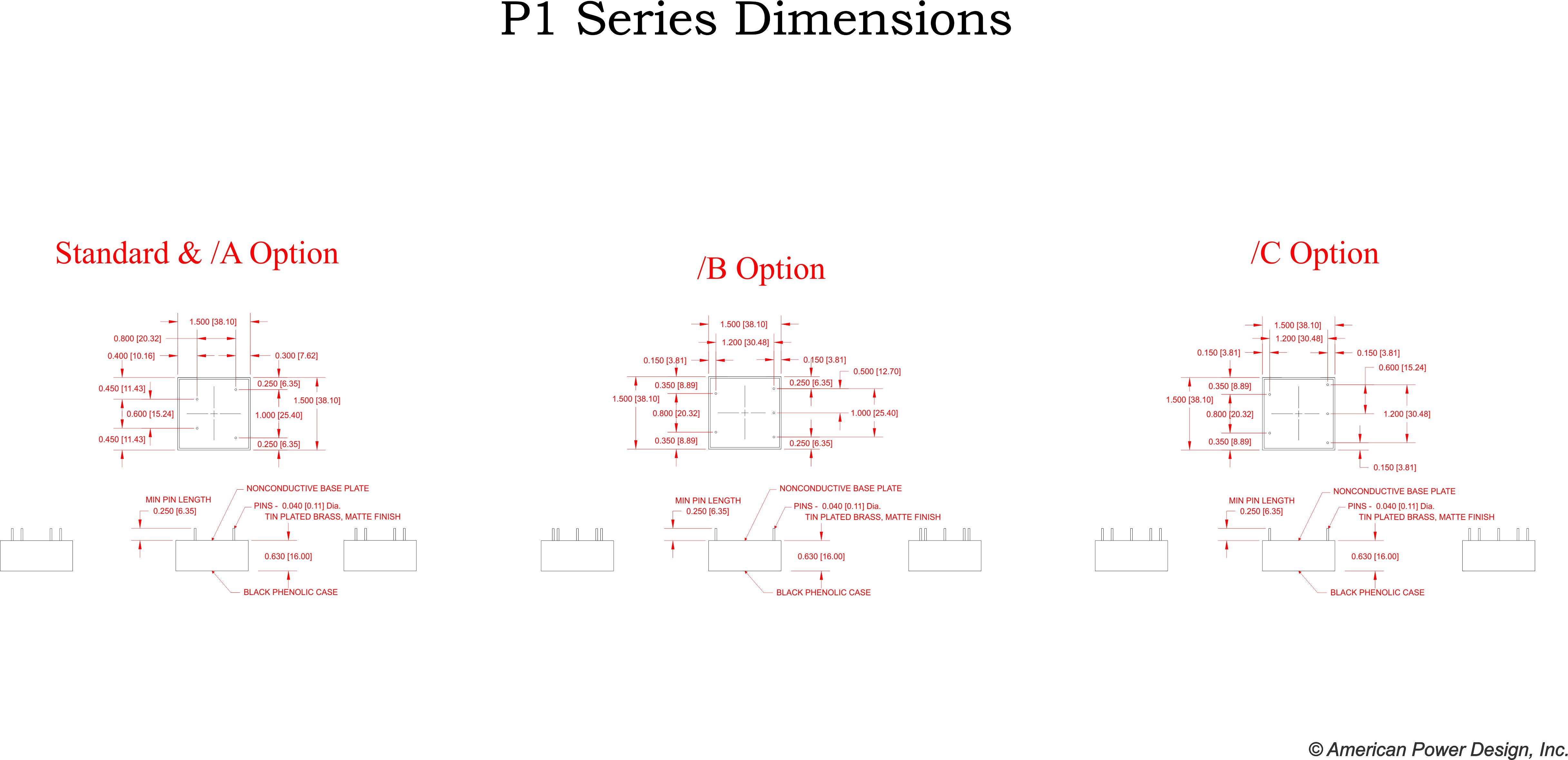

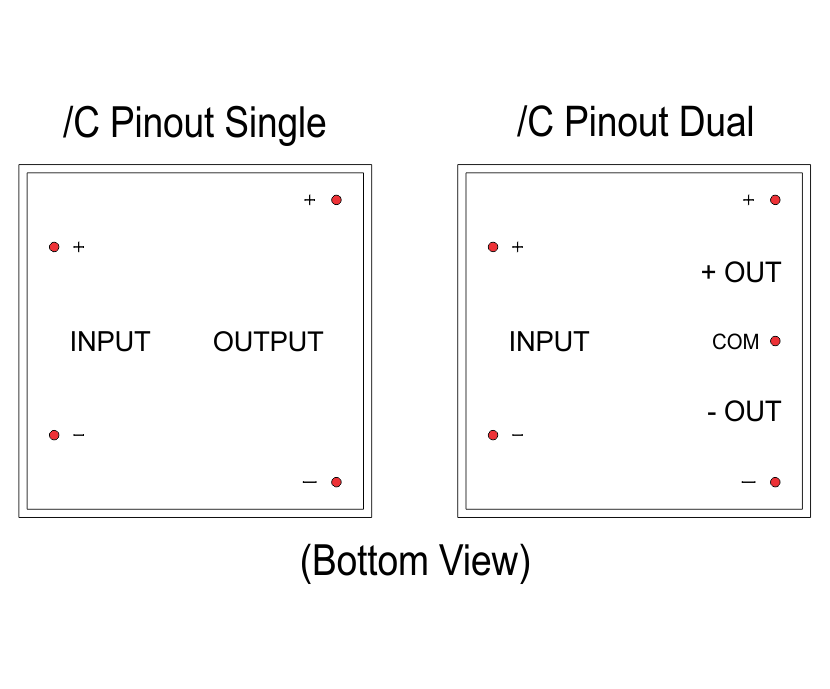

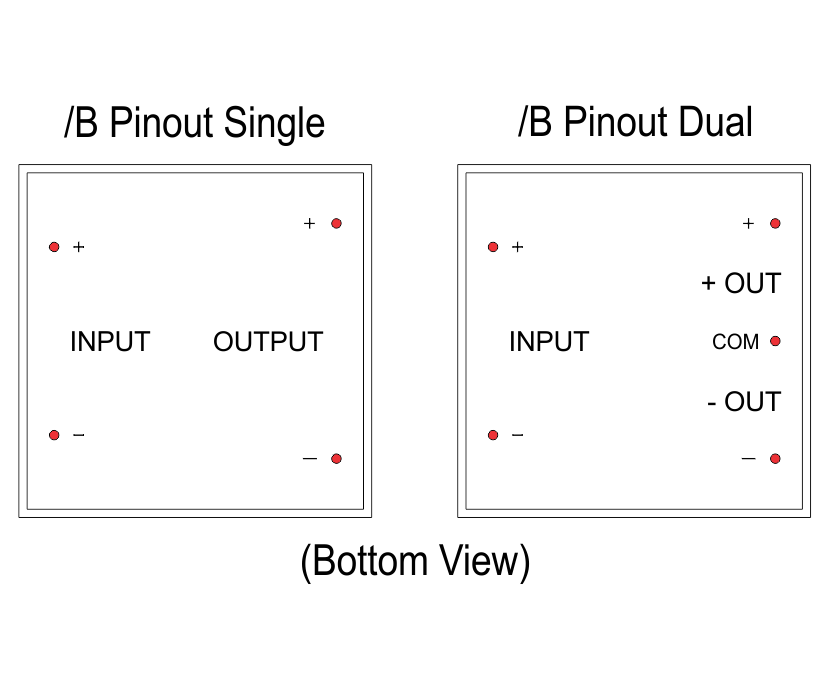

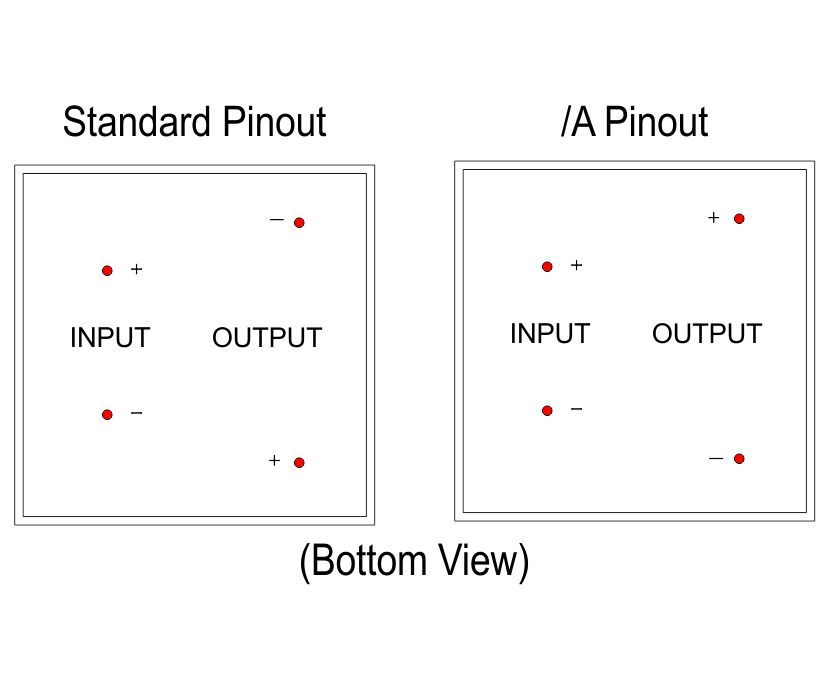

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
